1000V DC Fuse Holder
CNLonQcom is a Chinese factory specialized in the production of 1000V DC Fuse Holder. Fuse holders are devices used to install fuses and serve as mounting components. They offer DC1000V and DC1500V fuse holders designed specifically for protecting solar panels in photovoltaic systems, acting as circuit breakers to prevent excessive current in solar power systems. Each 1000V DC Fuse Holder holder can accommodate a 10x38mm or 10x85mm fuse link, with a maximum current capacity of 10A, 15A, 20A, 25A, or 30A.
Model:LQPV-1038(LQPV-32)
Send Inquiry
Product Description
CNLonQcom is a manufacturer of 1000V DC Fuse Holder, and each fuse holder undergoes extensive testing to ensure they can prevent electrical short circuits and provide a long service life.
1.The 1000V DC Fuse Holder feature high-quality resin enclosures with a smooth surface, offering excellent insulation and flame-retardant properties for enhanced safety.
2.The 1500V DC and 1000V DC Fuse Holder operate stably and are suitable for various equipment and instruments.
3.They are primarily used to protect circuits from overloads and short circuits, ensuring more reliable and safer product usage.
4.The 1000V DC Fuse Holder exhibit good insulation, durability, corrosion resistance, and heat resistance.
1.The 1000V DC Fuse Holder feature high-quality resin enclosures with a smooth surface, offering excellent insulation and flame-retardant properties for enhanced safety.
2.The 1500V DC and 1000V DC Fuse Holder operate stably and are suitable for various equipment and instruments.
3.They are primarily used to protect circuits from overloads and short circuits, ensuring more reliable and safer product usage.
4.The 1000V DC Fuse Holder exhibit good insulation, durability, corrosion resistance, and heat resistance.
Main technical parameters
| Model of fuse link | rated voltage (V) | Rated current(A) | Overall dimensions（mm） | Dissipated power (W) | |
| gPV | Drawing No | D×L | |||
| LQPV-1038 | DC1000V | 2、3、4、5、6、8、10、12、15、20、25、30 | 1 | 10.3±0.1×38±0.6 | ≤ 4.5 |
| Fuse holder model | Fuse size | rated voltage Vdc | Rated current (A) | Overall dimensions（mm） | |||||
| Drawing No | A1 | A2 | B | H1 | H2 | ||||
| LQPV-32 Base | 10×38 | 1000 | 32 | 2 | Drawing No2 | ||||
Test Method
| gPV”Rated current | Agreed time | agreed current | |
| A | h | Inf | If |
| In ≤ 63 | 1 | 1.13In | 1.45In |
| 63 ＜ In ≤ 160 | 2 | ||
| 160 ＜ In ≤ 400 | 3 | ||
| In ＞ 400 | 4 | ||
Characteristics Curve

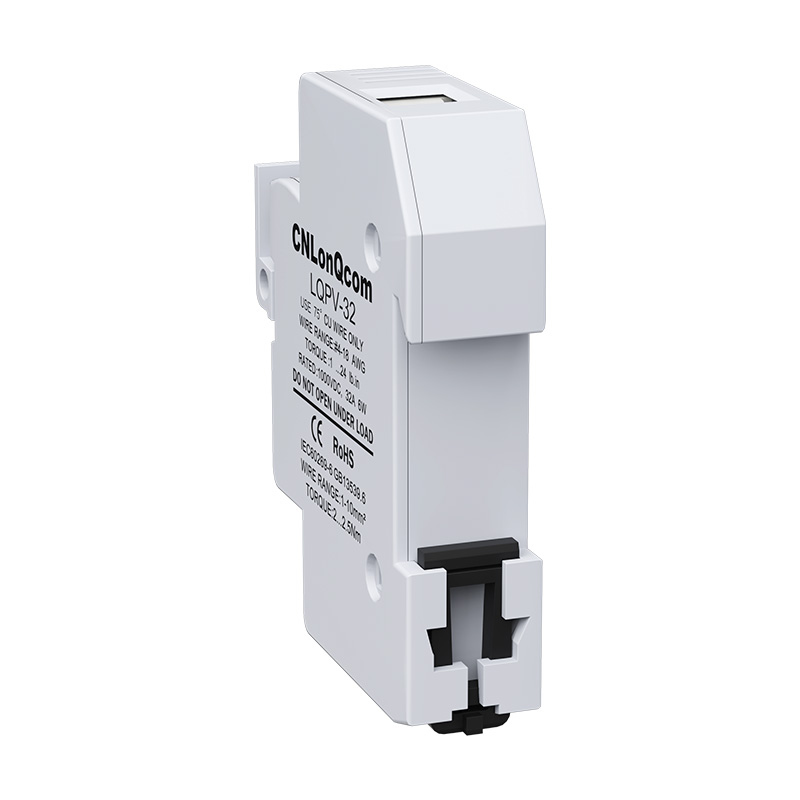

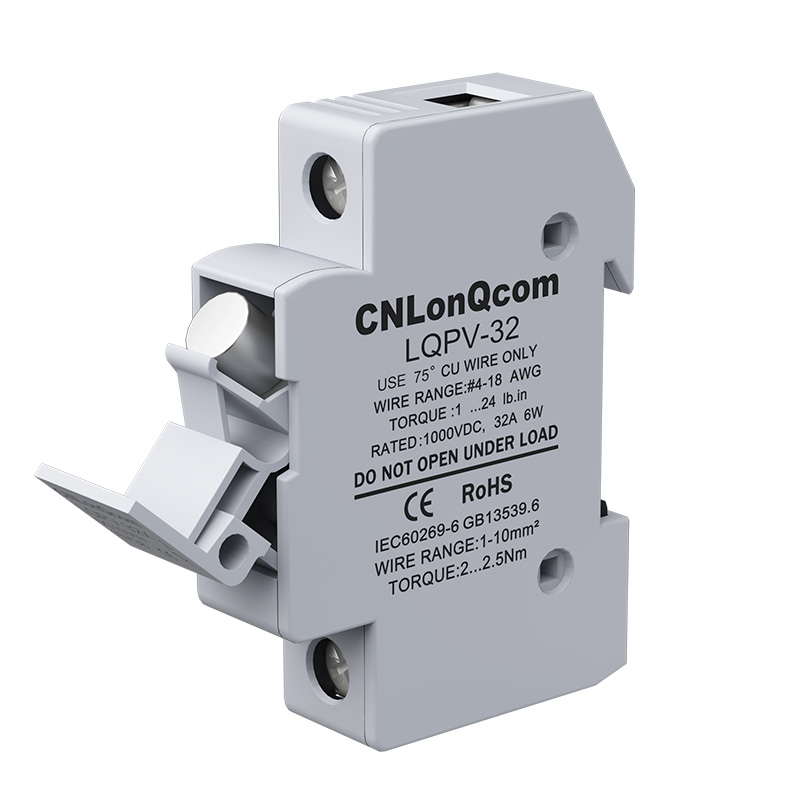

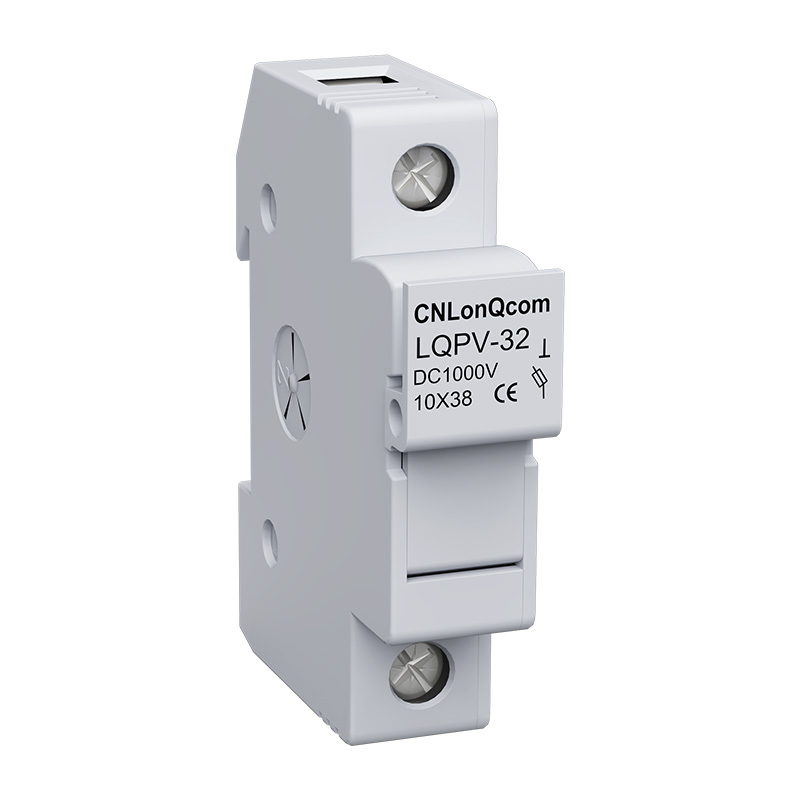

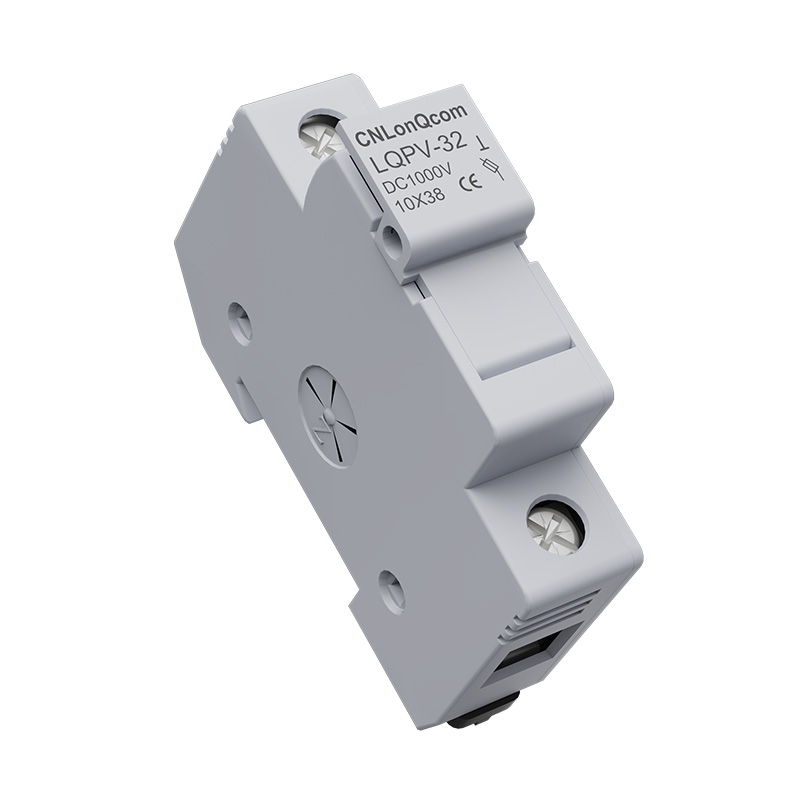

Main product images, design drawings, and application scenarios
RFQ (Request for Quotation)
Q1: What payment conditions does CNLonQcom accept for 1500V DC and 1000V DC Fuse Holders?
A1: We accept credit card, Western Union, PayPal, or bank transfer payments.
Q2: Can your DC1000V and DC1500V fuse holders be customized?
A2: CNLonQcom is a professional manufacturer of 1500V DC and 1000V DC Fuse Holders in China. We accept OEM and ODM orders and can provide various customization options to meet your requirements.
Q3: How is the quality control in your factory?
A3: All our fuse holder products undergo 100% inspection before shipment.
Q4: When can I receive the pricing?
A4: We will provide a quotation within 24 hours upon receiving your inquiry.
A1: We accept credit card, Western Union, PayPal, or bank transfer payments.
Q2: Can your DC1000V and DC1500V fuse holders be customized?
A2: CNLonQcom is a professional manufacturer of 1500V DC and 1000V DC Fuse Holders in China. We accept OEM and ODM orders and can provide various customization options to meet your requirements.
Q3: How is the quality control in your factory?
A3: All our fuse holder products undergo 100% inspection before shipment.
Q4: When can I receive the pricing?
A4: We will provide a quotation within 24 hours upon receiving your inquiry.
