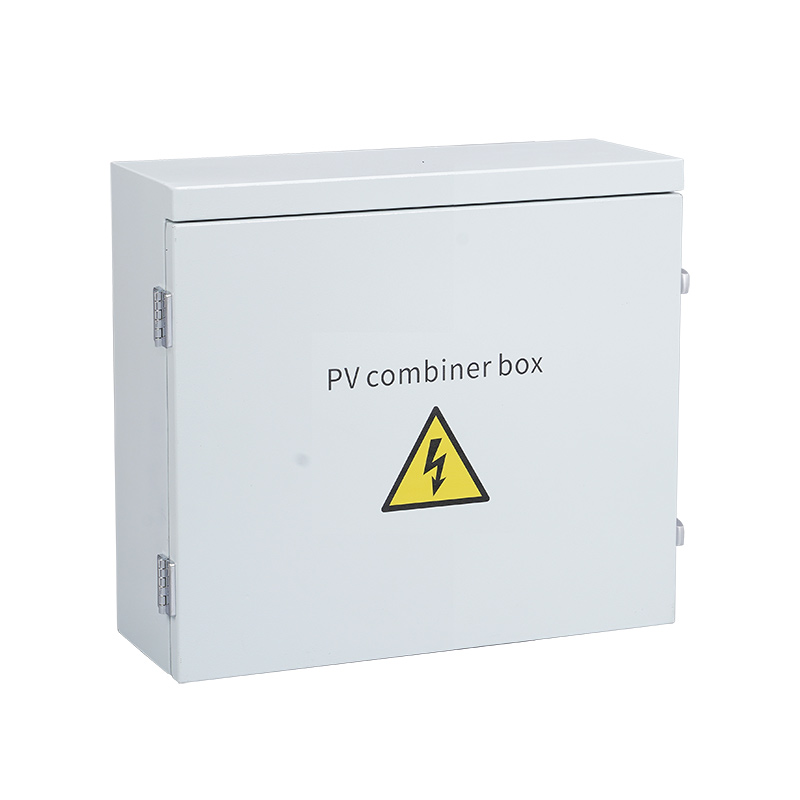

DC combiner box 4 in and 1 out
  • DC combiner box 4 in and 1 outDC combiner box 4 in and 1 out

DC combiner box 4 in and 1 out

The Plastic DC combiner box 4 in and 1 out made in China by CNLonQcom has an appealing appearance and is composed of corrosion-resistant material, which provides durability and seismic resistance. Stainless steel, stainless steel spray coating, and iron spray coating are among the metal enclosure material alternatives. It protects the solar DC circuit from overcurrent and overvoltage damage, extending the solar system's operating life and boosting system safety.

Model:LQX F4/1 DC

Send Inquiry

Product Description

The quality DC combiner box 4 in and 1 out is dust-proof, anti-reflective, and moisture-proof, with excellent impact resistance and stability, as well as intelligent monitoring function.
1.Specification parameters and images are available.
2.CNLonQcom's 4-input-1-output DC combiner box is suitable for outdoor use and installation.
3.The specification of the Plastic DC combiner box 1 in and 1 out


Name LQX F4/1 DC

Electric parameter
System maximum dc voltage 1000 1500
Maximum input current for each string 15A
Maximum input strings 4
Maximum output switch current 63A
Number of inverter MPPT N
Number of Output strings 1

Lightning protection
Category of test II grade protection
Nominal discharge current 20kA
Maximum discharge current 40kA
Voltage protection level 3.6kV 5.3kV
Maximum continuous operating voltage Uc  500V 1050V
Poles 3P
Structure characteristic Plug-push module

Protection grade IP66
Output switch DC isolation switch(standard)/DC circuit breaker(optional)
SMC4 Waterproof Connectors Standard
PV dc fuse Standard
PV surge protector Standard
Monitoring module Optional
Preventing diode Optional
Box material Metal
Installation method Wall mounting type
Operating Temperature -25℃ ~+55℃
Elevation of temperature 2km
Permissible relative humidity 0-95%,noondensation



The details of the Plastic DC combiner box 1 in and 1 out


Q1: When can I get the price?
A1: Usually, we will provide a quotation within 24 hours after receiving your inquiry.

Q2: What are the acceptable payment terms?
A2: We accept credit cards, Western Union transfers, PayPal, or wire transfers.

Q3: Can it be customized?
A3: CNLonQcom is a professional factory in China that specializes in producing Plastic DC combiner box 1 in and 1 out. We also welcome OEM and ODM orders and can provide various customized solutions to address your needs.

Q4: After placing an order, how long does it take to ship?
A4: After placing an order, we determine the production cycle based on the specific quantity of the product. Generally, it takes 15 to 30 days for delivery.
