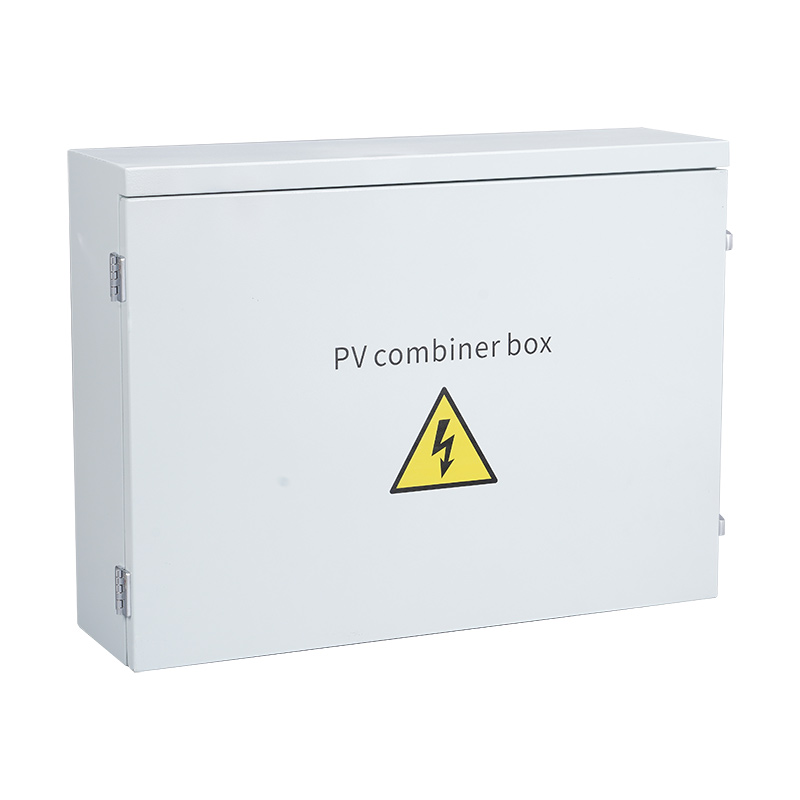

DC combiner box 6 in and 1 out
  • DC combiner box 6 in and 1 outDC combiner box 6 in and 1 out

DC combiner box 6 in and 1 out

CNLonQcom DC combiner box 6 in and 1 out Beautiful appearance, corrosion-resistant material, durability, shock resistance and other advantages. The box material can be made of metal materials such as stainless steel/stainless steel sprayed plastic/iron plastic sprayed plastic to protect the solar DC circuit from overcurrent and overvoltage damage, prolong the working life of the solar system and improve the safety of the system

Model:LQX F6/1 DC

Send Inquiry

Product Description

Iron metal material of the customized DC combiner box 6 in and 1 out can be dustproof, anti-reverse, moisture-proof, has very good and very high impact resistance and stability, and intelligent monitoring function
1.Table parameters and pictures

2.The DC combiner box 6 in and 1 out can be installed on the wall, which is simple and fast
3.CNLonQcom DC combiner box 6 in and 1 out is suitable for outdoor use and installation
4.The specification of the DC combiner box 6 in and 1 out


Name LQX F6/1 DC

Electric parameter
System maximum dc voltage 1000 1500
Maximum input current for each string 15A
Maximum input strings 6
Maximum output switch current 100A
Number of inverter MPPT N
Number of Output strings 1

Lightning protection
Category of test II grade protection
Nominal discharge current 20kA
Maximum discharge current 40kA
Voltage protection level 3.6kV 5.3kV
Maximum continuous operating voltage Uc  1050V 1500V
Poles 3P
Structure characteristic Plug-push module

Protection grade IP66
Output switch DC isolation switch(standard)/DC circuit breaker(optional)
SMC4 Waterproof Connectors  Standard
PV dc fuse Standard
PV surge protector Standard
Monitoring module Optional
Preventing diode Optional
Box material PVC
Installation method Wall mounting type
Operating Temperature -25℃ ~+55℃
Elevation of temperature 2km
Permissible relative humidity 0-95%,noondensation



The details of the DC combiner box 6 in and 1 out


Q1: What is the acceptable payment terms?
A1: Credit Card, Western Union, Paypal or T/T.

Q2: Can your DC combiner box 6 in and 1 out be customized?
A2: CNLonQcom is a professional manufacturer of DC combiner box 6 in and 1 out in China, we also welcome OEM ODM, and can also provide various customized solutions to solve your problems.

Q3: After placing an order, how long can it be shipped?
A3: After the order is placed, we will determine the production cycle according to the specific product quantity, and generally deliver the goods within 15-30 days.
