Fuse photovoltaic connector

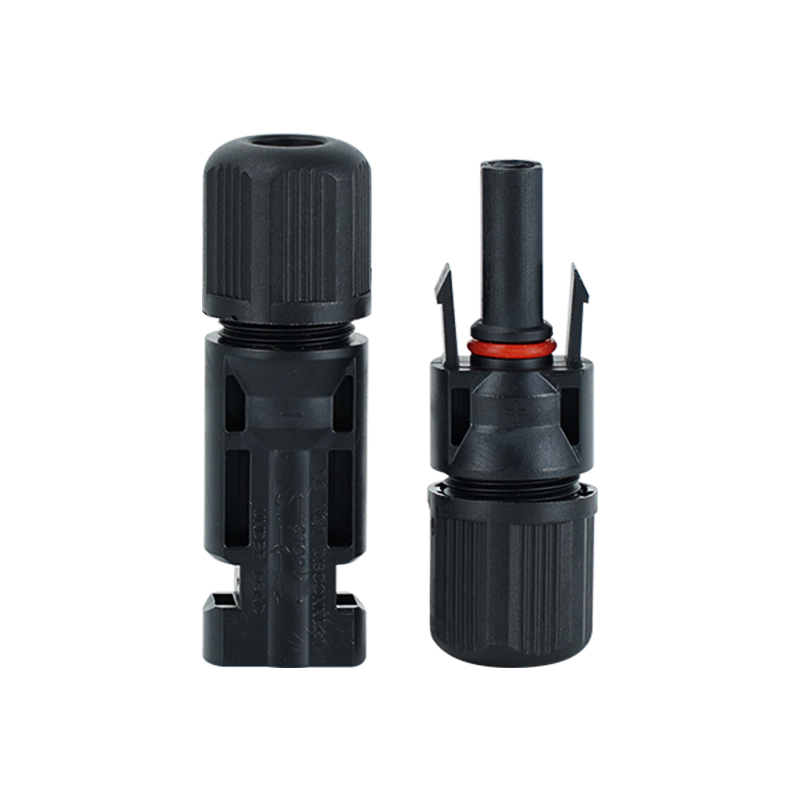

LMC4-Fuse Photovoltaic Connector is a durable, reliable, waterproof, dustproof, high-voltage resistant, low-temperature resistant, and corrosion-resistant connector designed for operation in various harsh environments. Suitable for currents of 10A, 15A, 20A, 25A, and 30A. CNLonQcom is a Chinese factory supplier, specializing in independent research, design, production, and wholesale of LMC4-Fuse connectors.
Model:LMC4
Send Inquiry
Product Description
The LMC4-Fuse Photovoltaic Connector features an intelligent modular design, providing excellent protection, high compressive and tensile strength, long service life, and meeting the requirements of different installation environments.
1.LMC4-Fuse Photovoltaic Connector adopts a special electrical design, ensuring stable and reliable electrical connections with excellent electrical conductivity, effectively preventing short circuits and leakage, ensuring safety and reliability.
2.The LMC4-Fuse Photovoltaic Connector employs internationally advanced mechanical design, offering high tensile strength and plug-and-play reliability, ensuring safe and reliable disassembly and assembly with a long service life.
1.LMC4-Fuse Photovoltaic Connector adopts a special electrical design, ensuring stable and reliable electrical connections with excellent electrical conductivity, effectively preventing short circuits and leakage, ensuring safety and reliability.
2.The LMC4-Fuse Photovoltaic Connector employs internationally advanced mechanical design, offering high tensile strength and plug-and-play reliability, ensuring safe and reliable disassembly and assembly with a long service life.
PV-30A(1000V)-FUSE
TECHNICAL DATA
| Connector system | Φ4mm |
| Rated voltage | 1000V DC |
| Rated current |
10A 15A 20A 25A 30A |
| Test voltage | 6kV(50HZ,1min.) |
| Ambient temperature range | -40℃ ...+90℃ (IEC) |
| Upper limiting temper ature | +105℃ (IEC) |
| Degree of protection,mated | IP67 |
| unmated | IP2X |
| Comtact resistanceof plug connectors | 0.5mΩ |
| Safetyclass | Ⅱ |
| Contact material | Messing,verzinnt Copper Alloy,tin plated |
| Insulation material | PC/PPO |
| Locking system | Snap-in |
| Flame class | UL-94-Vo |
| Salt mist spray test,degree of severity 5 | IEC 60068-2-52 |
DIMENSIONAL DRAWING(MM)
PV-30A(1500V)-FUSE
TECHNICAL DATA
| Connector system | Φ4mm |
| Rated voltage | 1500V DC |
| Rated current |
10A 15A 20A 25A 30A |
| Test voltage | 6kV(50HZ,1min.) |
| Ambient temperature range | -40℃ ...+90℃ (IEC) |
| Upper limiting temper ature | +105℃ (IEC) |
| Degree of protection,mated | IP67 |
| unmated | IP2X |
| Comtact resistanceof plug connectors | 0.5mΩ |
| Safetyclass | Ⅱ |
| Contact material | Messing,verzinnt Copper Alloy,tin plated |
| Insulation material | PC/PPO |
| Locking system | Snap-in |
| Flame class | UL-94-Vo |
| Salt mist spray test,degree of severity 5 | IEC 60068-2-52 |
DIMENSIONAL DRAWING(MM)
RFQ
Q1: Are you a trading company or a factory?
A1: CNLonQcom is a Chinese factory and manufacturer of LMC4-Fuse Photovoltaic Connectors. We have over 10 years of experience in this field. We accept OEM and ODM orders.
Q2: How long does it take to ship after placing an order?
A2: The production cycle for orders depends on the specific quantity. Generally, shipments are made within 15 to 30 days.
Q3: What are the acceptable payment terms?
A3: CNLonQcom is a factory that produces LMC4-Fuse Photovoltaic Connectors. We accept credit cards, Western Union transfers, PayPal, or wire transfers.
Q2: How long does it take to ship after placing an order?
A2: The production cycle for orders depends on the specific quantity. Generally, shipments are made within 15 to 30 days.
Q3: What are the acceptable payment terms?
A3: CNLonQcom is a factory that produces LMC4-Fuse Photovoltaic Connectors. We accept credit cards, Western Union transfers, PayPal, or wire transfers.
