The Role of Fuses in Photovoltaic Systems and How to Choose the Right Ones

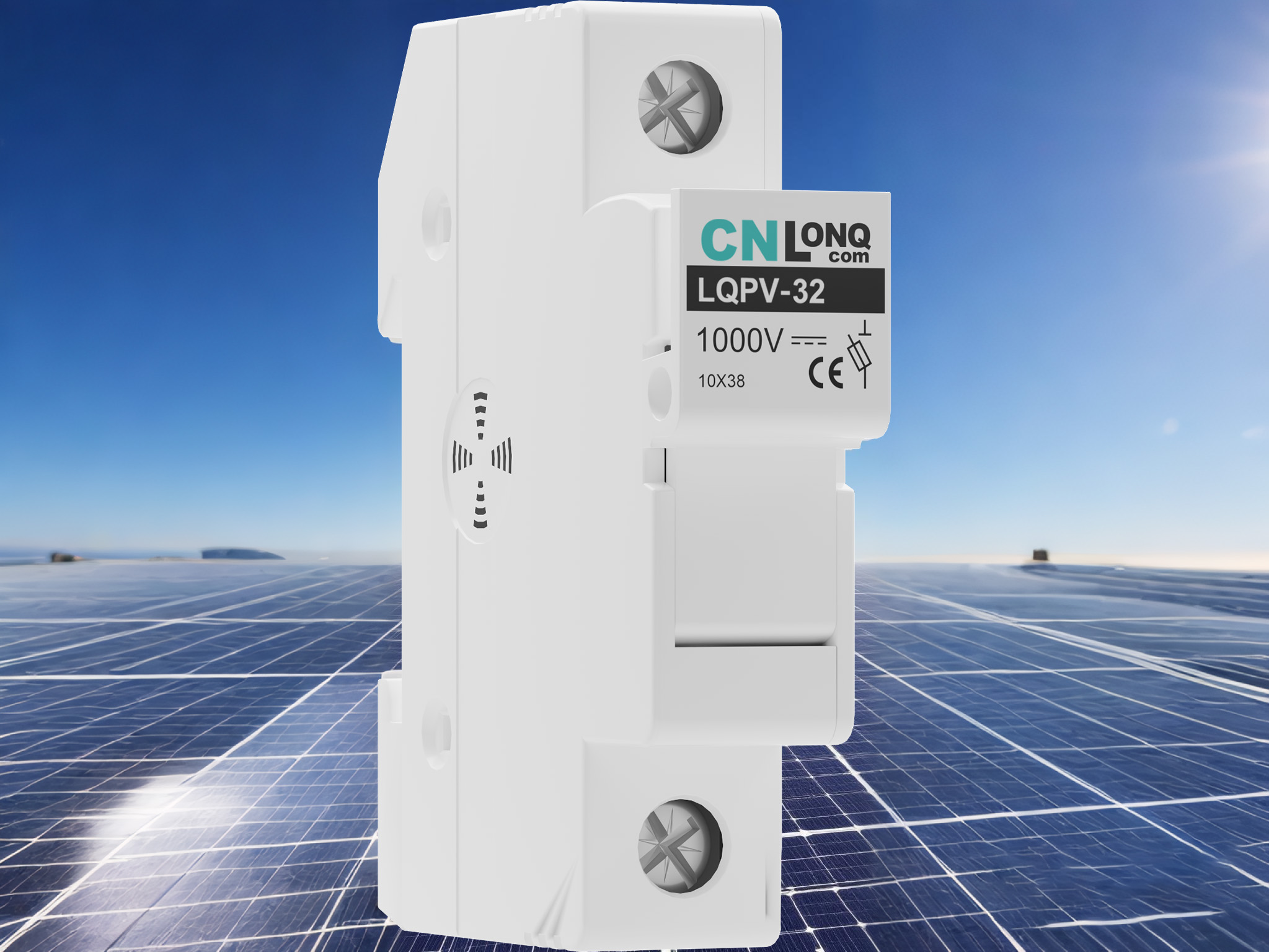

The Function of Fuses in PV Systems

Overcurrent Protection

At its core, a fuse is an electrical safety device designed to protect an electrical circuit. In the context of a PV system, it acts as a vigilant sentinel, constantly monitoring the flow of current. When the current exceeds a safe, pre-determined level (the fuse's rated current), the fuse's metal strip or wire, known as the element, melts. This effectively breaks the circuit, halting the flow of excessive current. By doing so, it prevents damage to sensitive components such as solar panels, inverters, and charge controllers. Without this protection, overcurrent could lead to overheating, component failure, and even fires.

Short Circuit Protection

Short circuits are a particularly dangerous scenario in PV systems. They occur when a low-resistance path is created between two points in the circuit, allowing a massive surge of current to flow. This can be caused by damaged wiring, a malfunctioning component, or improper installation. Fuses are designed to respond rapidly to short circuits. In the event of such a fault, the fuse element melts almost instantaneously, disconnecting the faulty section of the circuit. This not only protects the components directly involved in the short circuit but also prevents the excessive current from spreading and causing further damage to the entire PV system.

Fire Prevention

Electrical fires are a significant risk in any electrical system, and PV installations are no exception. Overcurrent and short circuits can generate intense heat, which can ignite flammable materials in the vicinity. Fuses are an essential line of defense against this threat. By quickly interrupting the flow of electricity when anomalies are detected, they reduce the risk of overheating and subsequent fires. This is crucial not only for the safety of the PV system itself but also for the surrounding environment, including buildings and personnel.

Types of Fuses: With and Without Indicator Lights

Non - Lit Fuses

Non - lit fuses are the more traditional type. They are simple in design and function. When a fault occurs and the fuse blows, there is no visual indication on the fuse itself. To determine whether a non - lit fuse has blown, one typically needs to use a multimeter or visually inspect the circuit for signs of power loss. These fuses are often more cost - effective and are suitable for applications where cost is a primary concern, such as in small - scale residential PV systems or in situations where the system is regularly monitored and maintained. However, their lack of visual indication can make fault detection more time - consuming, especially in large or complex PV installations.

Lit Fuses

Lit fuses, on the other hand, come with an added feature - an indicator light. When the fuse blows and the circuit is interrupted, the light on the fuse illuminates. This provides an immediate and clear visual indication that the fuse has tripped. In large commercial or industrial PV plants, where there may be numerous fuses spread across a wide area, this feature is invaluable. Maintenance personnel can quickly identify the blown fuse without having to test each one individually. This significantly reduces the time spent on fault diagnosis and repair, minimizing downtime and ensuring the continuous operation of the PV system.

How to Select the Right Fuse for Your PV System

Consider the Rated Current

The rated current of a fuse is the maximum amount of current it can carry continuously without melting. When choosing a fuse for a PV system, it is crucial to match the fuse's rated current to the maximum current that the circuit is expected to carry. If the rated current is too low, the fuse may blow under normal operating conditions, causing unnecessary disruptions to the system. Conversely, if the rated current is too high, the fuse may not blow when an overcurrent or short circuit occurs, leaving the system unprotected. As a general rule, for PV applications, the fuse's rated current should be calculated based on the short - circuit current of the solar panels. In many cases, a multiplier of 1.56 times the short - circuit current (Isc) of the solar panel is used as a starting point for determining the appropriate fuse rating. For example, if the Isc of a solar panel is 10A, the recommended fuse rating would be 1.56 x 10A = 15.6A. One would then select the next standard fuse rating above this value.

Evaluate the Voltage Rating、

The voltage rating of a fuse indicates the maximum voltage that the fuse can safely interrupt. In a PV system, the voltage can vary depending on factors such as the number of solar panels in series, the type of inverter used, and the operating conditions. It is essential to select a fuse with a voltage rating that is equal to or greater than the maximum voltage that the circuit will experience. In PV systems, common voltage levels range from 48V in small off - grid systems to 1500V in large utility - scale installations. Using a fuse with an insufficient voltage rating can lead to arcing and failure to interrupt the circuit properly, compromising the safety of the system.

Factor in the Environment and Installation Conditions

PV systems are often installed in diverse environments, from sunny rooftops to remote desert locations. The operating temperature, humidity, and altitude of the installation site can all affect the performance of the fuse. For example, in high - temperature environments, the resistance of the fuse element may increase, causing it to heat up more quickly. This can lead to premature melting and false tripping. Some fuses are designed to operate within a specific temperature range, and it is important to choose a fuse that can withstand the environmental conditions of the PV system's installation site. Additionally, if the fuses are installed in a confined space, such as a junction box, proper ventilation and consideration of heat dissipation are necessary to ensure reliable operation.

Look for High - Quality and Reliable Products

Given the critical role that fuses play in protecting PV systems, it is essential to choose high - quality products from reputable manufacturers. A reliable fuse will have consistent performance characteristics, accurate ratings, and a long service life. It should also meet relevant industry standards, such as IEC 60269 - 6 for PV fuses. High - quality fuses are less likely to experience premature failure, false tripping, or fail to interrupt the circuit when required. Reading product reviews, consulting with industry experts, and checking the manufacturer's reputation are all useful steps in ensuring that you select a reliable fuse for your PV system.

In conclusion, fuses are an integral part of any PV system, providing essential protection against overcurrent, short circuits, and potential fires. Understanding the different types of fuses available, such as those with and without indicator lights, and knowing how to select the right fuse based on factors like rated current, voltage rating, and environmental conditions is crucial for ensuring the safe and efficient operation of your PV installation. By making informed decisions when choosing fuses, you can enhance the reliability and longevity of your PV system, maximizing its energy - generating potential while minimizing the risk of costly failures and safety hazards.
