CNLonQcom is a professional manufacturers and suppliers in China. Our factory provides DC combiner box, DC combiner box, surge protective device material, etc. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. We take high quality, reasonable price and perfect service.
- View as
PV Combiner Box 1 in 1 out DC500V
CNLonQcom IP65 PV Combiner Box 1 in 1 out DC500V with Circuit Breaker and Surge Lightning Protection and Fuse For Outdoor Solar Panel DC Systems, Rv, Homes, Boats
●Rated voltage: DC500V
●Rated current: 6/10/16/20/25/32/40/50/63A
●String: 1in 1out
●Maximum input current per string: 6/10/15/20/25/30A
●Maximum output current per string: 6/10/16/20/25/32/40/50/63/80/100/125A
●Connector: MC-4 or PG
●standard: IEC60269-6, IEC60947-2, IEC61643-1
●Housing Material: PC+ABS
●Certificate: CE, IP65, ROHS, ISO9001

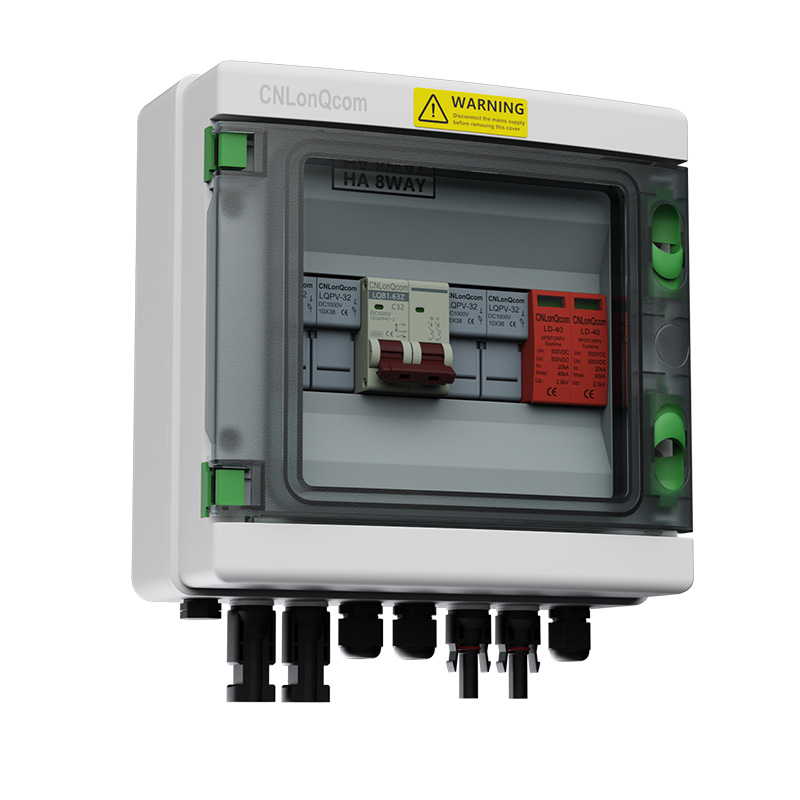

PV Combiner Box 2 in 1 out DC500V
CNLonQcom IP65 PV Combiner Box 2 in 1 out DC500V with Circuit Breaker and Surge Lightning Protection and Fuse For Outdoor Solar Panel DC Systems, Rv, Homes, Boats
●Rated voltage: DC500V
●Rated current: 6/10/16/20/25/32/40/50/63A
●String: 2in 1out
●Maximum input current per string: 6/10/16/20/25/30A
●Maximum output current per string: 6/10/16/20/25/32/40/50/63A
●Connector: MC-4 or PG
●standard: IEC60269-6, IEC60947-2, IEC61643-1
●Housing Material: PC+ABS
●Certificate: CE, IP65, ROHS, ISO9001

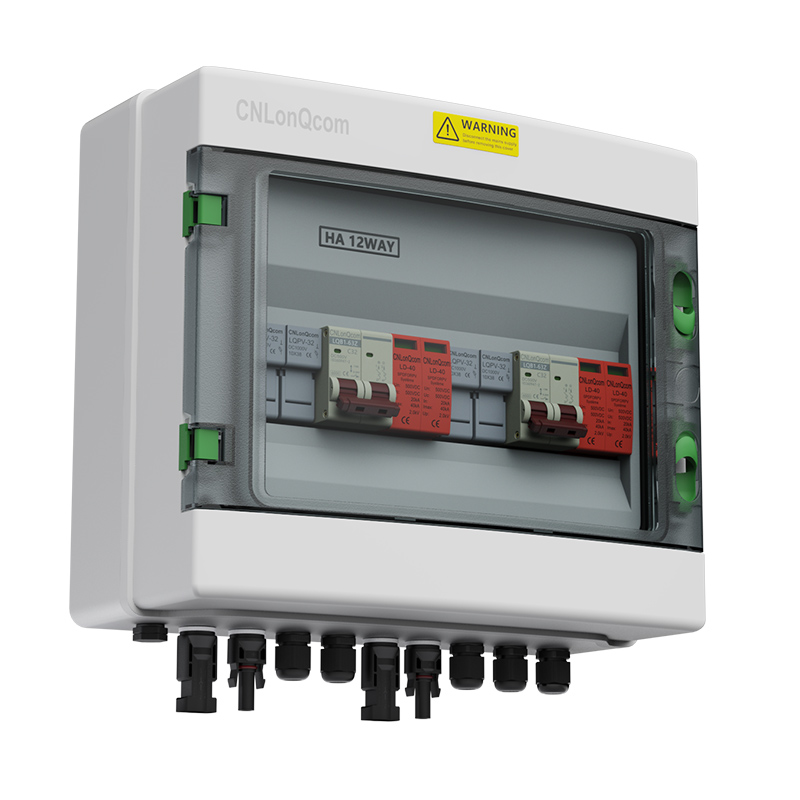

PV Combiner Box 2 in 2 out DC500V
CNLonQcom IP65 PV Combiner Box 2 in 2 out DC500V with Circuit Breaker and Surge Lightning Protection and Fuse For Outdoor Solar Panel DC Systems, Rv, Homes, Boats
●Rated voltage: DC500V
●Rated current: 6/10/16/20/25/32/40/50/63A
●String: 2in 2out
●Maximum input current per string: 6/10/16/20/25/30A
●Maximum output current per string: 6/10/16/20/25/32/40/50/63A
●Connector: MC-4 or PG
●standard: IEC60269-6, IEC60947-2, IEC61643-1
●Housing Material: PC+ABS
●Certificate: CE, IP65, ROHS, ISO9001

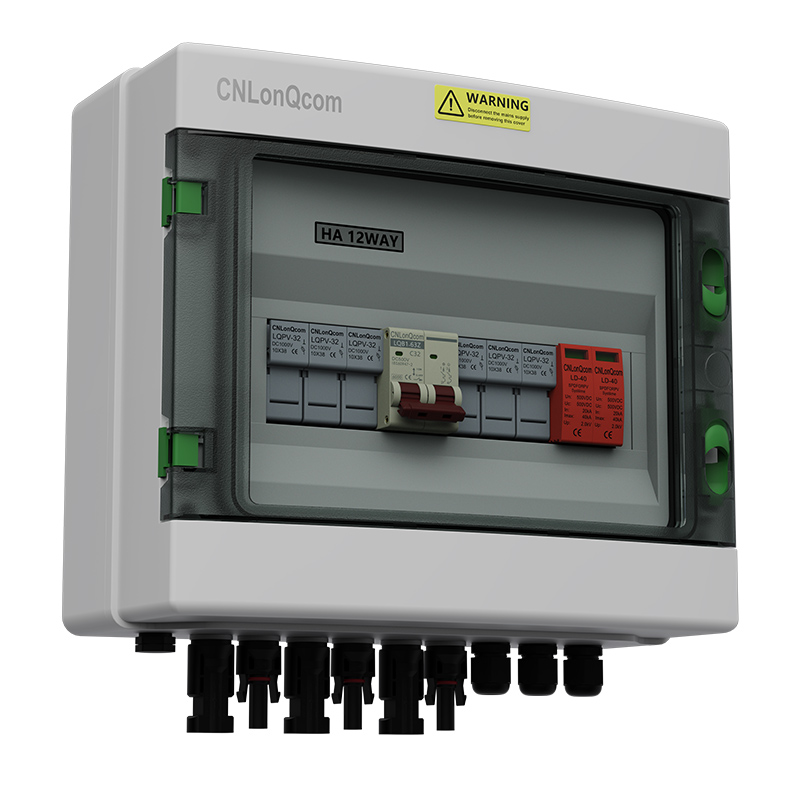

PV Combiner Box 3 in 1 out DC500V
CNLonQcom IP65 PV Combiner Box 3 in 1 out DC500V with Circuit Breaker and Surge Lightning Protection and Fuse For Outdoor Solar Panel DC Systems, Rv, Homes, Boats
●Rated voltage: DC500V
●Rated current: 6/10/16/20/25/32/40/50/63A
●String: 3in 1out
●Maximum input current per string: 6/10/16/20/25/30A
●Maximum output current per string: 6/10/16/20/25/32/40/50/63A
●Connector: MC-4 or PG
●standard: IEC60269-6, IEC60947-2, IEC61643-1
●Housing Material: PC+ABS
●Certificate: CE, IP65, ROHS, ISO9001

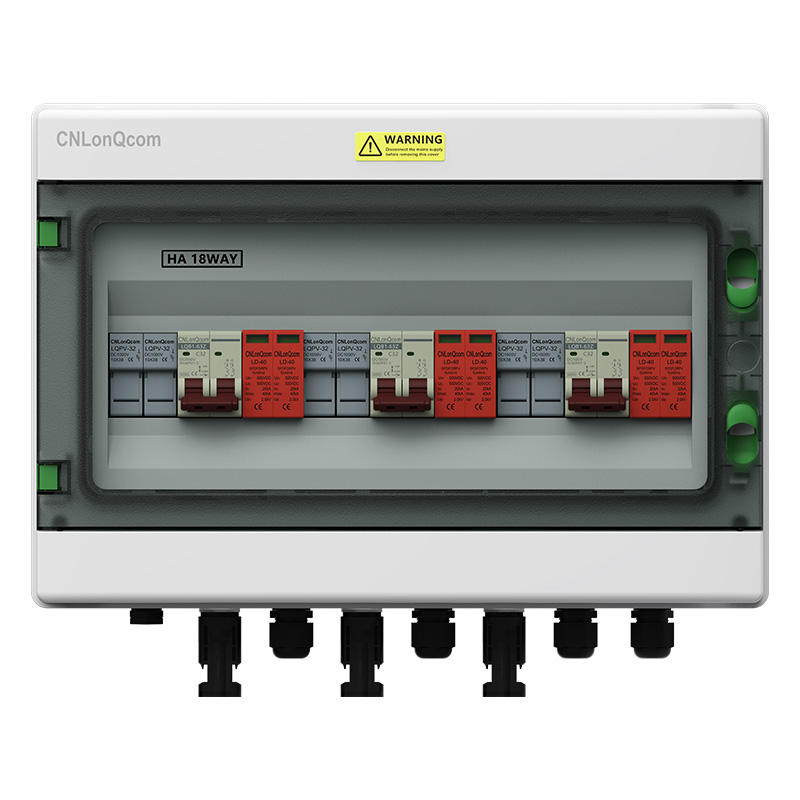

PV Combiner Box 3 in 3 out DC500V
CNLonQcom IP65 PV Combiner Box 3 in 3 out DC500V with Circuit Breaker and Surge Lightning Protection and Fuse For Outdoor Solar Panel DC Systems, Rv, Homes, Boats
●Rated voltage: DC500V
●Rated current: 6/10/16/20/25/32/40/50/63A
●String: 3in 3out
●Maximum input current per string: 6/10/16/20/25/30A
●Maximum output current per string: 6/10/16/20/25/32/40/50/63A
●Connector: MC-4 or PG
●standard: IEC60269-6, IEC60947-2, IEC61643-1
●Housing Material: PC+ABS
●Certificate: CE, IP65, ROHS, ISO9001

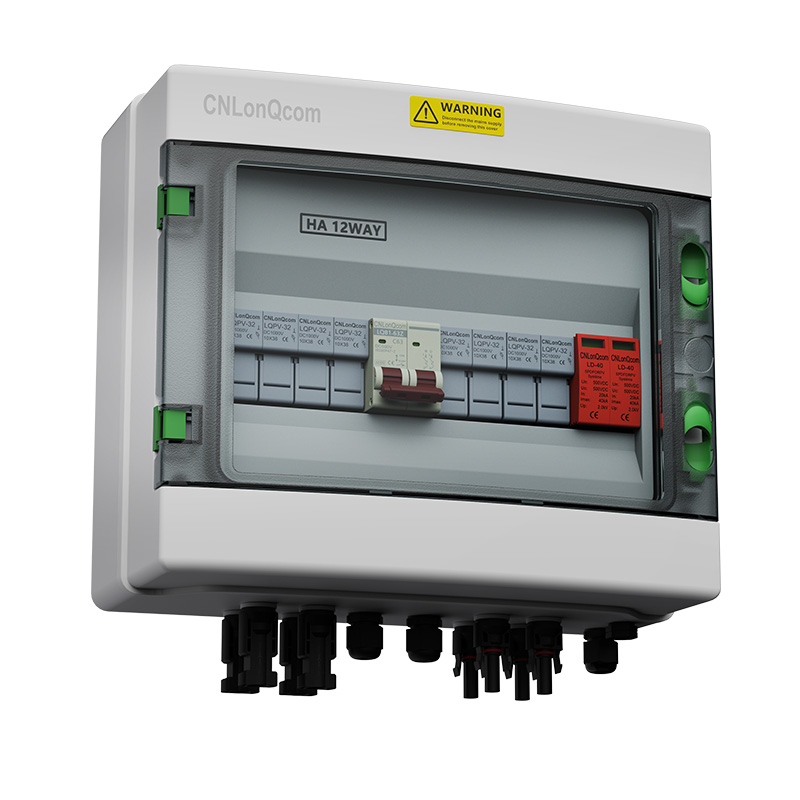

PV Combiner Box 4 in 1 out DC500V
CNLonQcom IP65 PV Combiner Box 4 in 1 out DC500V with Circuit Breaker and Surge Lightning Protection and Fuse For Outdoor Solar Panel DC Systems, Rv, Homes, Boats
●Rated voltage: DC500V
●Rated current: 6/10/16/20/25/32/40/50/63A
●String: 4in 1out
●Maximum input current per string: 6/10/16/20/25/30A
●Maximum output current per string: 6/10/16/20/25/32/40/50/63A
●Connector: MC-4 or PG
●standard: IEC60269-6, IEC60947-2, IEC61643-1
●Housing Material: PC+ABS
●Certificate: CE, IP65, ROHS, ISO9001
