Plastic DC combiner box 2 in and 2 out

CNLonQcom is a professional manufacturer and supplier of Plastic DC combiner box 2 in and 2 out in China. We specialize in producing waterproof DC combiner boxes for photovoltaic solar energy systems, providing users with safer, more compact, aesthetically pleasing, and suitable products for their solar systems.

Model:LQX 2/2 DC

Send Inquiry

Product Description

The Plastic DC combiner box 2 in and 2 out which accepts customized simplifies the physical wiring between solar panels and inverters.

1.Plastic DC combiner box 2 in and 2 out is dust-proof, moisture-proof, and has excellent impact resistance and stability.
2.The specification of the Plastic DC combiner box 2 in and 2 out

TECHNICAL PARAMETERS

Name	LQX 2/2 DC
	Electric parameter
System maximum dc voltage	500	1000
Maximum input current for each string	15A/20A/30A
Maximum input strings	2
Maximum output switch current	16A/20A/32A
Number of inverter MPPT	2
Number of Output strings	2
	Lightning protection
Category of test	II grade protection
Nominal discharge current	20kA
Maximum discharge current	40kA
Voltage protection level	2.0kV	3.6kV
Maximum continuous operating voltage Uc	500V	1050V
Poles	2P	3P
Structure characteristic	Plug-push module
	System
Protection grade	IP65
Output switch	DC isolation switch(standard)/DC circuit breaker(optional)
SMC4 Waterproof Connectors	Standard
PV dc fuse	Standard
PV surge protector	Standard
Monitoring module	Optional
Preventing diode	Optional
Box material	PVC
Installation method	Wall mounting type
Operating Temperature	-25℃ ~+55℃
Elevation of temperature	2km
Permissible relative humidity	0-95%,noondensation

SCHEMATIC DIAGRAM

DIM ENSIONAL DRAWING(MM)

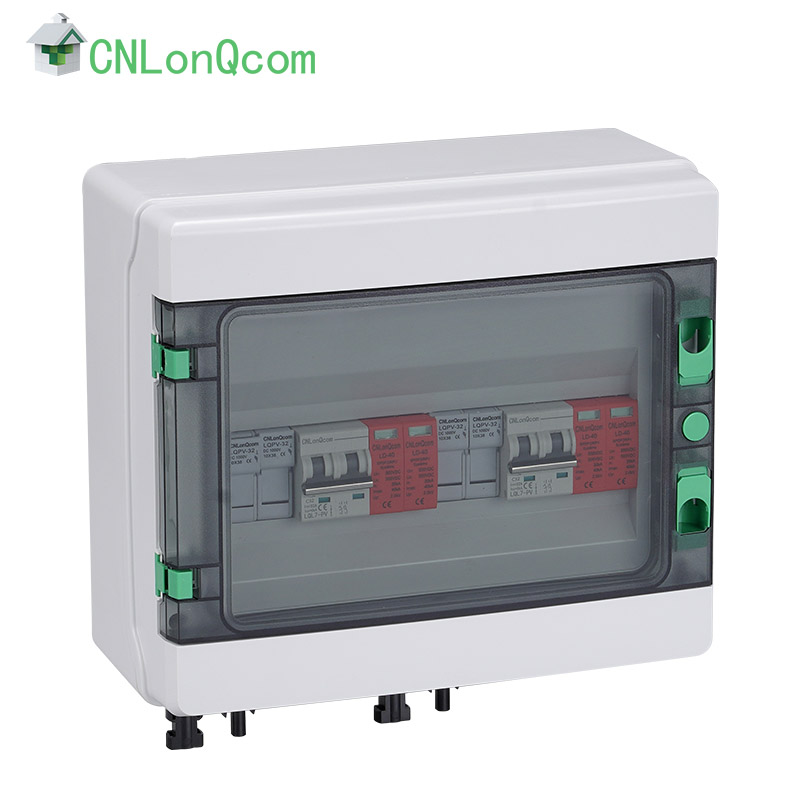

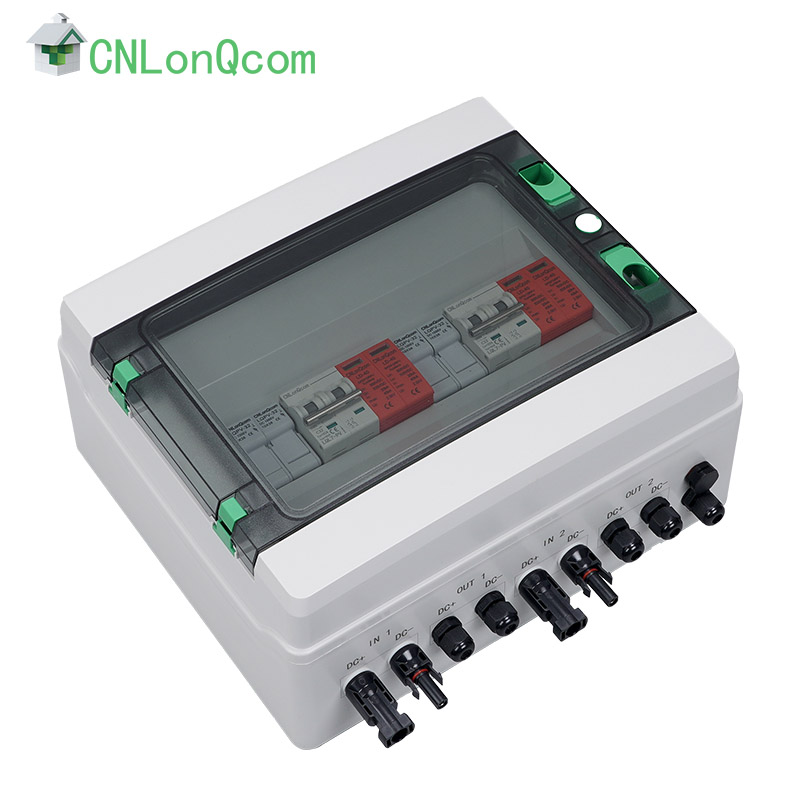

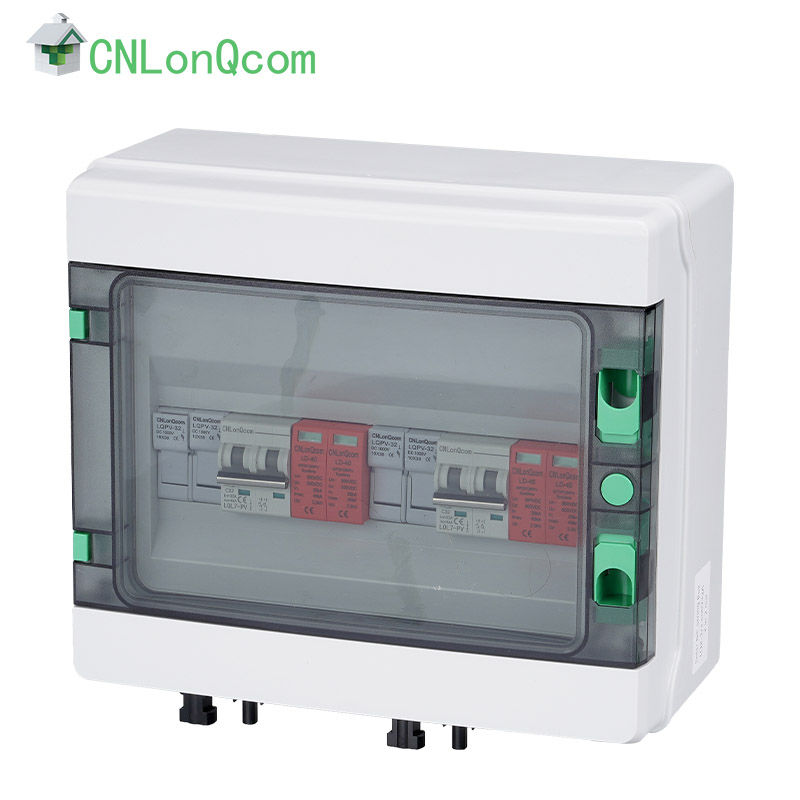

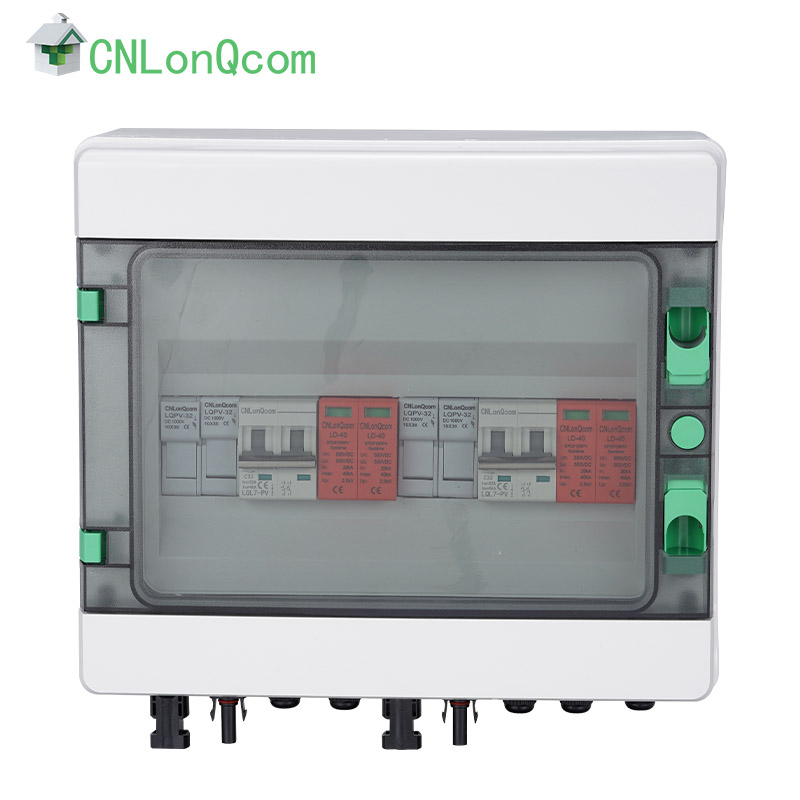

The details of the Plastic DC combiner box 2 in and 2 out

FAQ

Q1: When can I get the price?
A1: Usually, we will provide a quotation within 24 hours after receiving your inquiry.

Q2: What payment terms do you accept?
A2: We accept credit cards, Western Union, PayPal, or bank transfer.

Q3: Can I get samples for free?
A3: Yes, you can. The buyer is responsible for the shipping cost, but the samples themselves are free.

Q4: Can I request customization?
A4: CNLonQcom is a professional Chinese factory manufacturing plastic DC combiner boxes with 2 inputs and 2 outputs. We welcome OEM and ODM requests.
