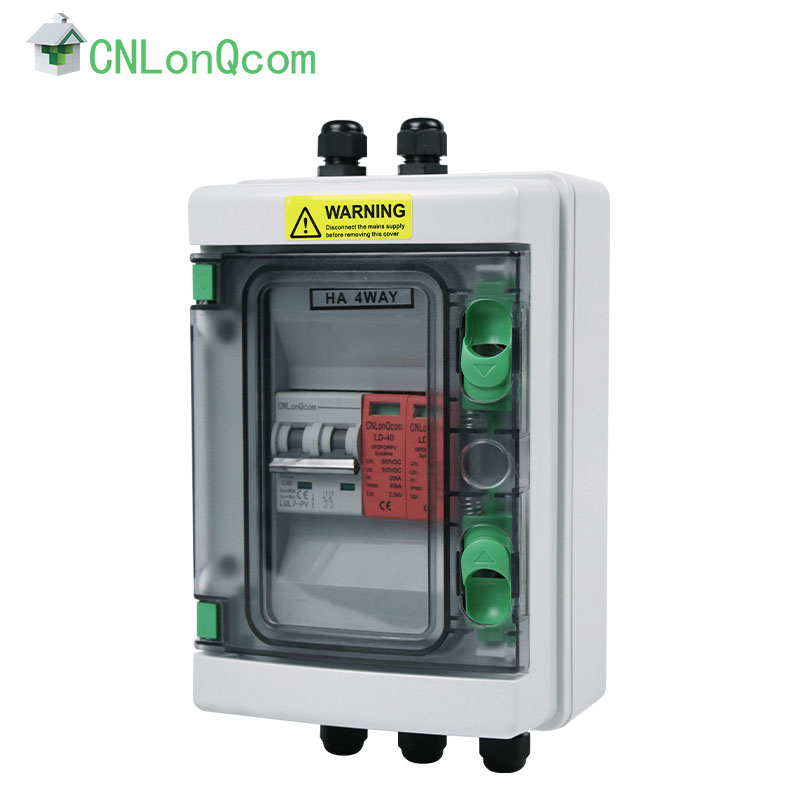

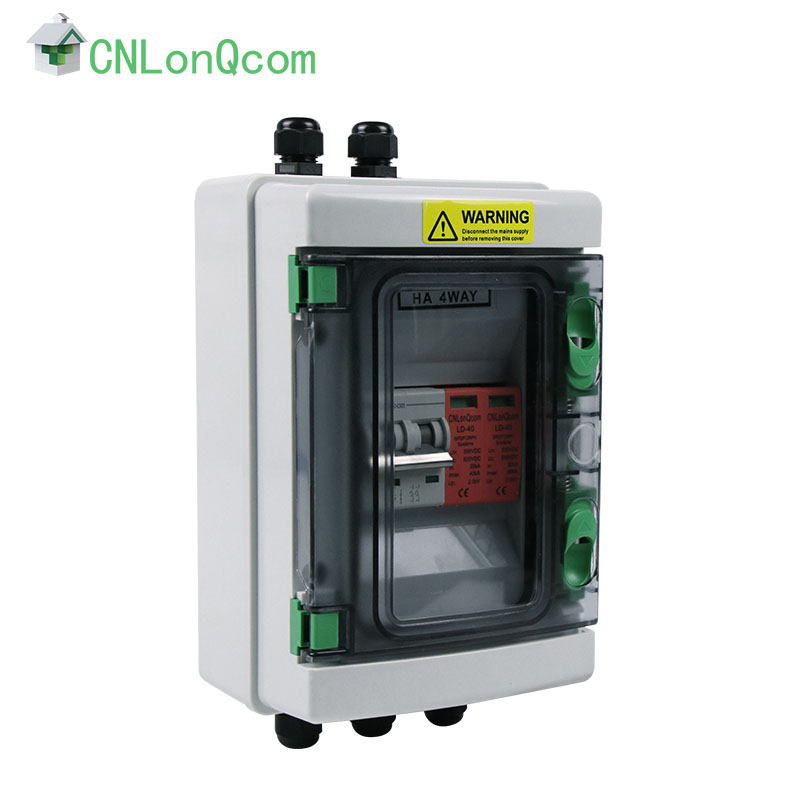

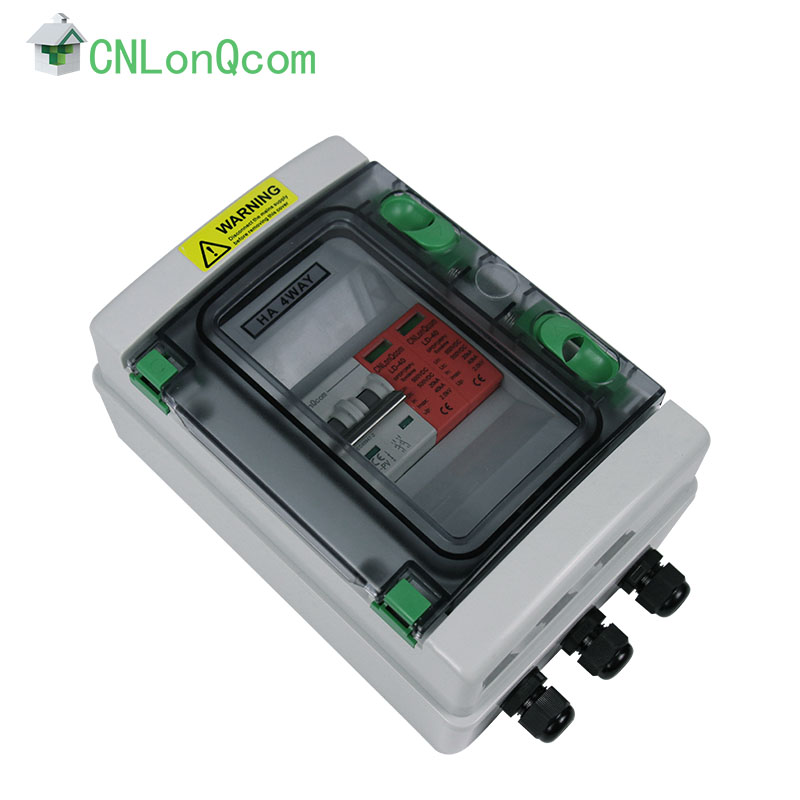

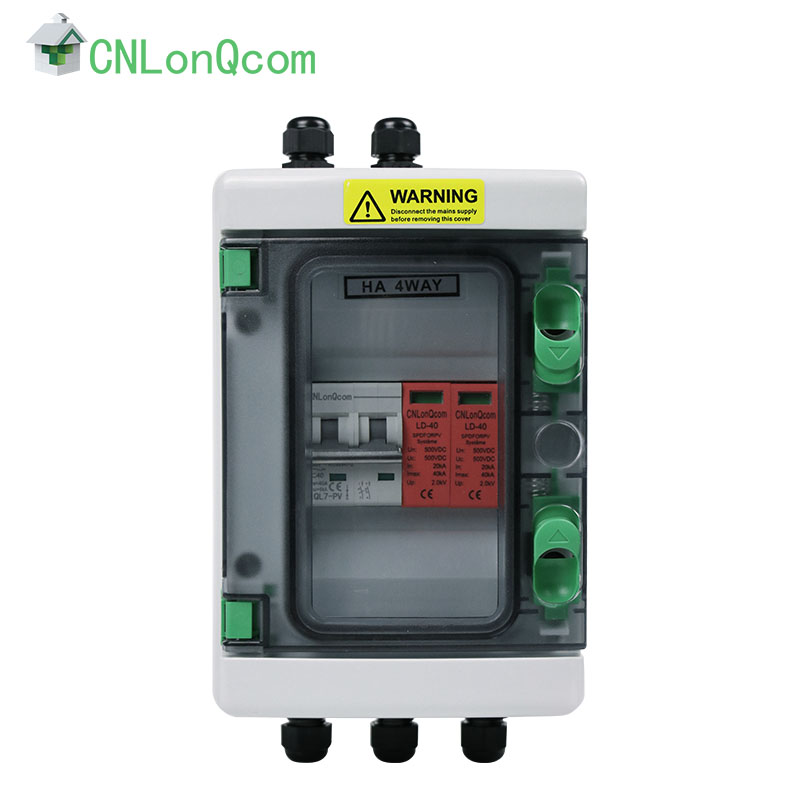

Plastic DC combiner box LQX-HA-4

CNLonQcom can wholesale the Plastic DC combiner box LQX-HA-4, which has overload, dust-proof, moisture-proof, and lightning protection functions.
Application: Solar Power Generation System
Maximum DC Voltage Input: 500V
Waterproof Rating: IP65
Product Name: Solar Combiner Box
Material: ABS/PC
Enclosure Material: Plastic
Warranty: 2 years
Brand Name: CNLonQcom
Installation: DIN rail mounting
Origin: Zhejiang, China

Model:LQX-HA-4

Send Inquiry

Product Description

The Plastic DC combiner box LQX-HA-4 from CNLonQcom has a configuration with sealed structure, overload protection, dust-proof, moisture-proof, and lightning protection functions.

1.It provides a full range of solar photovoltaic combiner boxes for residential, commercial, and utility-scale renewable energy projects.
2.Plastic DC combiner box LQX-HA-4 offers flexible configurations for use with monocrystalline solar panels, polycrystalline solar panels, and thin-film solar panels. The rated current of photovoltaic fuses, circuit breakers, and load isolation switches can be selected.
3.The enclosure is made of plastic.
4.The specification of the Plastic DC combiner box LQX-HA-4

TECHNICAL PARAMETERS

Name	LQX-HA-4
	Electric parameter
System maximum dc voltage	500
Maximum input current for each string	15A
Maximum input strings	1
Maximum output switch current	32A
Number of inverter MPPT	1
Number of Output strings	1
	Lightning protection
Category of test	II grade protection
Nominal discharge current	20kA
Maximum discharge current	40kA
Voltage protection level	2.0kV
Maximum continuous operating voltage Uc	500V
Poles	2P
Structure characteristic	Plug-push module
	System
Protection grade	IP65
Output switch	DC circuit breaker
Waterproof Connectors	LMC4/PG
Box material	ABS+PC
Installation method	Wall mounting type
Operating Temperature	-25℃ ~+55℃
Elevation of temperature	2km
Permissible relative humidity	0-95%，no condensation

DIM ENSIONAL DRAWING(MM)

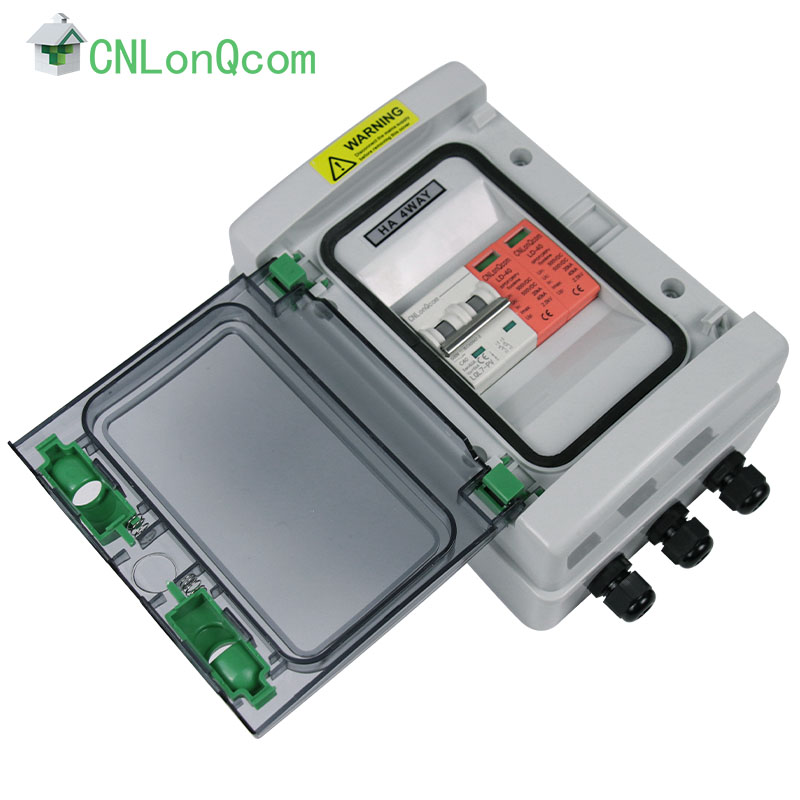

The details of the Plastic DC combiner box 1 in and 1 out

WIRING DIAGRAM

FAQ

Q1: Are you a trading company or a factory?
A1: Yes, we are a manufacturer of Plastic DC combiner box LQX-HA-4. We have over 10 years of experience in this field.

Q2: How is the quality control in your factory?
A2: All products undergo 100% inspection before shipment.

Q3: When can I get the price?
A3: Usually, we will provide a quotation within 24 hours after receiving your inquiry.
