High-Performance Lightning Protection PV Combiner Box | Flame Retardant, Waterproof & Stable for All PV Systems
Date:8/27/2026 9:40:22 AM Click:2
In photovoltaic power generation systems, the combiner box serves as the core hub for stringing PV modules and converging DC power. It is also a critical protective device that safeguards the entire system from harsh outdoor environments, lightning surges, and circuit faults. PV power stations are constantly exposed to sunlight, rain, sandstorms, and thunderstorms. Ordinary combiner boxes are prone to shell aging, water ingress, short circuits, lightning breakdown, and component damage, which directly reduce power generation efficiency and pose serious safety risks. Our company specializes in R&D and manufacturing of PV power distribution equipment. Our high-performance lightning protection combiner boxes are fully upgraded in shell material, waterproof rating, and internal components, delivering excellent weather resistance, flame retardancy, and lightning protection to ensure long-term stable and safe operation of your PV power plants.
The lightning protection combiner box is an indispensable safety barrier for any photovoltaic system and plays a vital role throughout the entire service life of a PV power station. Since PV modules are usually installed in open areas such as rooftops, ground fields, and mountainous terrain, they are highly vulnerable to lightning induction and voltage surges. Instant overvoltage and surge current can burn out PV panels, destroy inverters, and damage control systems. This not only results in expensive equipment replacement costs and power generation losses but also triggers severe hazards such as electric leakage and electrical fires.
Professional lightning protection combiner boxes effectively eliminate these potential risks. They rapidly drain lightning energy and suppress transient overvoltage while preventing the spread of overload and short-circuit faults. By fully protecting PV modules, cables, and inverters, our combiner boxes greatly reduce system failure rates and maintenance costs, extend the service life of the entire photovoltaic system, and secure your long-term power generation benefits.

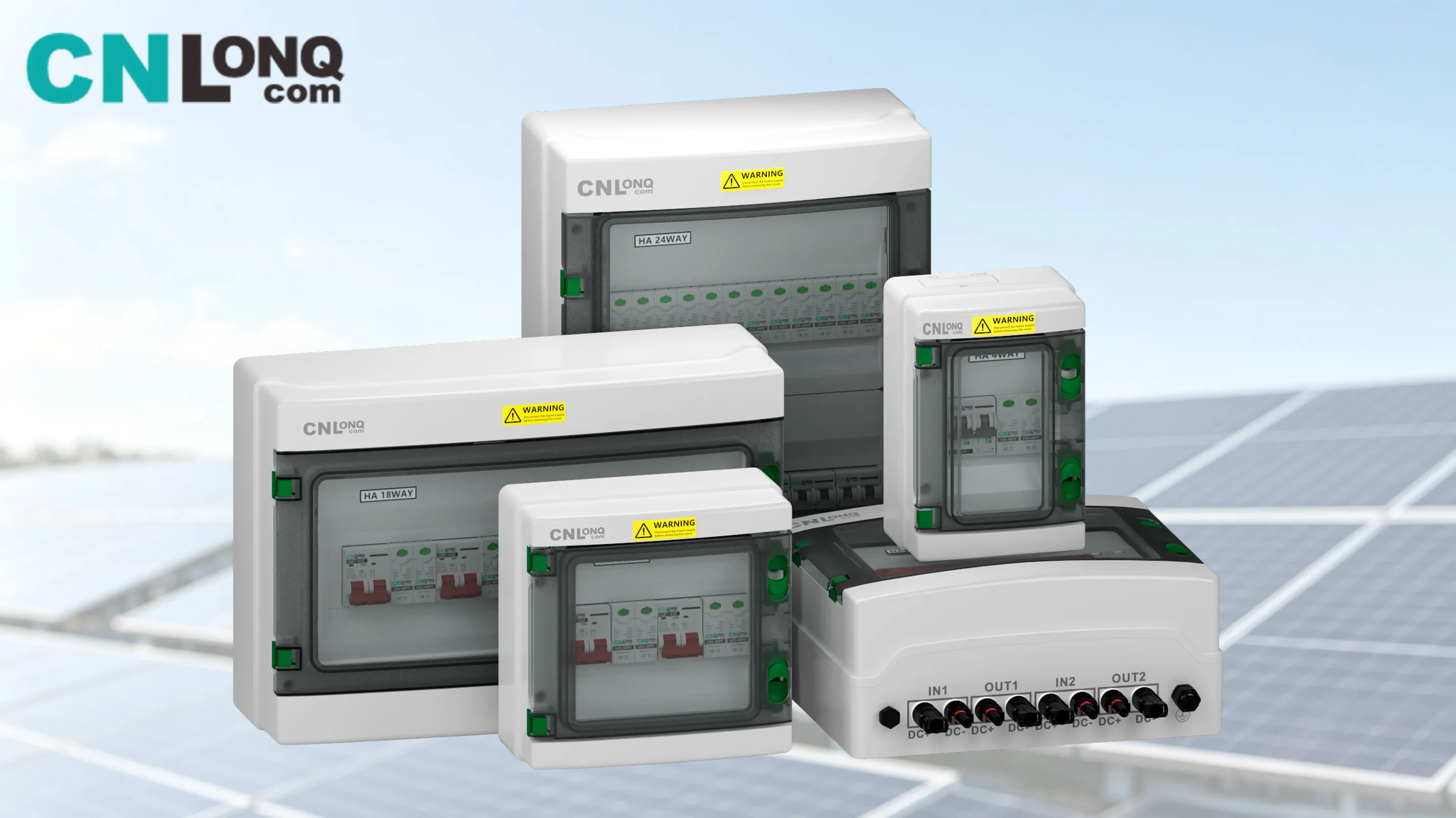

1. Heavy-Duty Shell Structure: Flame Retardant & All-Weather Waterproof Protection
The durability and safety of outdoor electrical equipment depend largely on shell quality. Our combiner boxes are integrally molded with premium PC PA composite engineering plastic. This material combines the high impact resistance and UV aging resistance of PC with the superior flame retardancy, abrasion resistance, and corrosion resistance of PA. It effectively prevents fire hazards, resists high temperatures, and maintains structural stability under extreme weather conditions. The material features outstanding flame-retardant performance, self-extinguishes quickly without dripping or flame spreading, and avoids deformation, cracking, and fading under long-term outdoor exposure.

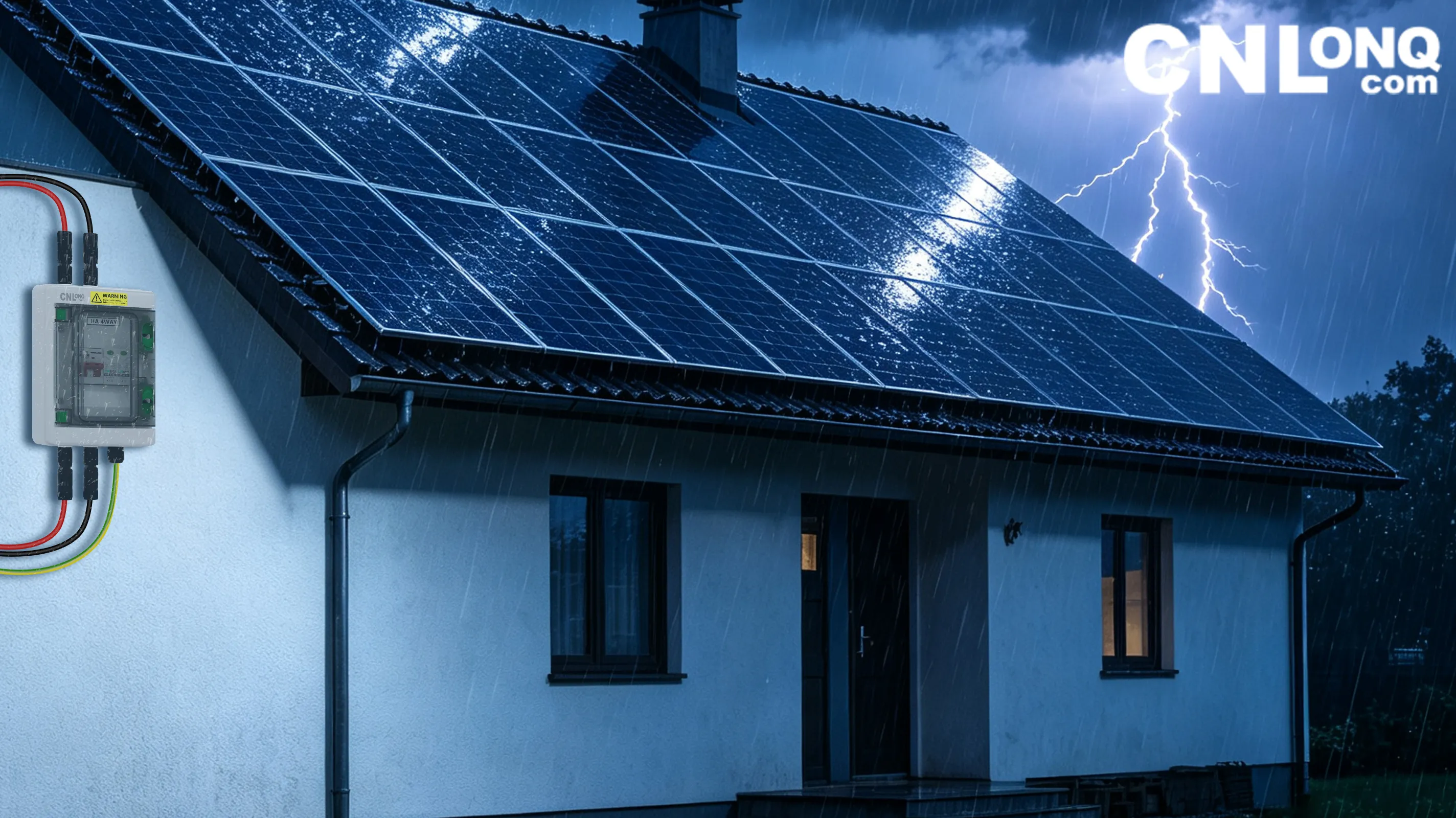

We offer multiple IP65–IP68 waterproof and dustproof ratings to suit different installation scenarios. IP65 standard protection provides reliable defense against dust, rain, and water spray for conventional rooftop PV systems. IP67 and IP68 upgraded versions deliver full dust-tight performance and temporary or continuous immersion resistance, ideal for harsh environments including coastal areas, wetlands, deserts, and high-salt fog regions. This advanced protection completely prevents water, moisture, and dust ingress, effectively avoiding short circuits, electric leakage, and component oxidation.
2. Premium Internal Components: Full-Range Safety Protection for PV Systems
Our lightning protection combiner boxes adopt standardized and optimized internal layout with high-quality PV-specific electrical components. Covering mainstream DC voltage and current specifications, the equipment provides reliable overload, short-circuit, and lightning surge protection for residential rooftop, commercial industrial, and large ground-mounted PV power stations.

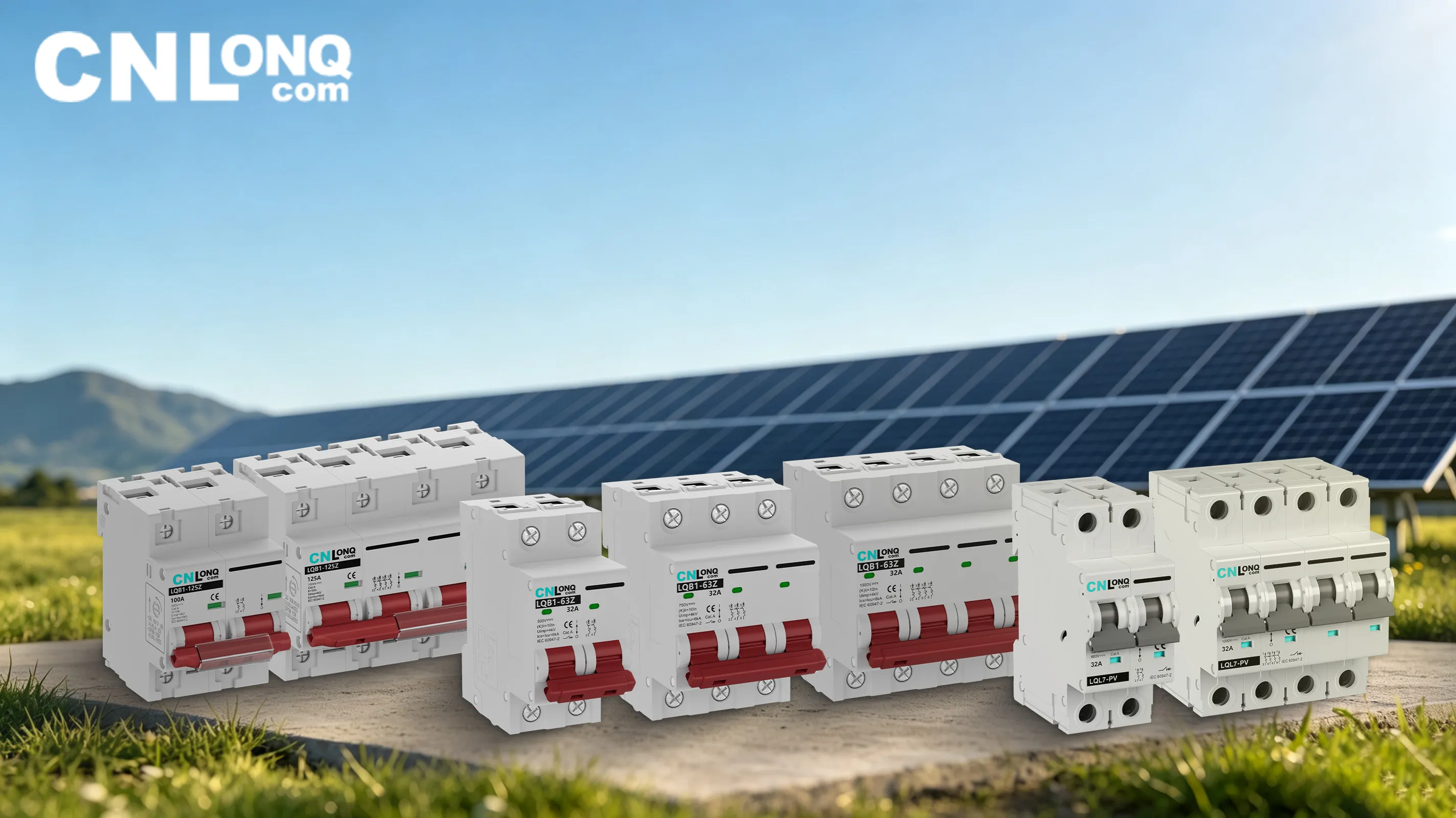

2.1 DC Circuit Breaker & Isolator: Wide Specification Coverage & Precise Circuit Control
Equipped with professional PV DC breakers and isolators, our combiner boxes support DC 250V–1200V and 1A–125A wide-range specifications, fully compatible with different system capacities and PV string configurations. These components feature excellent DC breaking capacity and high-precision overload/short-circuit protection. In case of circuit abnormalities, they cut off the power instantly to prevent fault expansion and protect PV modules, cables, and inverters. Meanwhile, the reliable isolation function ensures safe power cut-off during equipment maintenance, effectively reducing operational risks and meeting diverse project requirements.

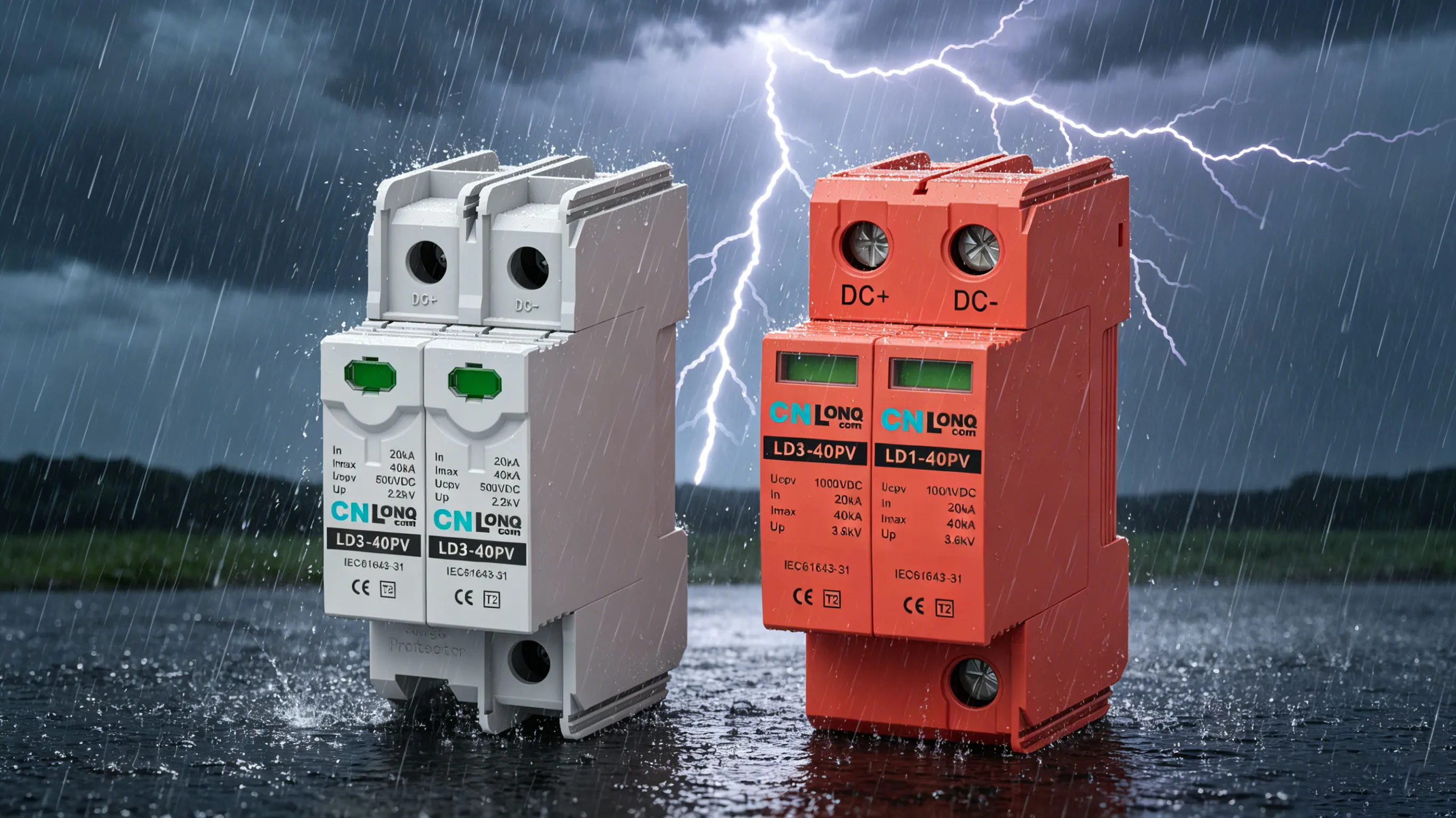

2.2 High-Performance Surge Protector (SPD): Millisecond-Level Lightning Response
Lightning induction and transient overvoltage are the biggest threats to photovoltaic equipment. Our combiner boxes are fitted with dedicated PV surge protectors available in DC 500V–1000V specifications to match mainstream PV system voltages. Each SPD adoptsDunba Storm dedicated lightning protection chips, featuring larger discharge capacity, stronger aging resistance, and faster response speed than ordinary chips, achieving millisecond-level ultra-fast reaction.
When lightning surges or transient overvoltage occurs, the SPD instantly conducts and releases excessive current to the ground, effectively absorbing surge energy and avoiding breakdown damage to PV panels, inverters, and control devices. It builds a solid lightning protection barrier and drastically reduces lightning-caused system failures.
2.3 IP67 Waterproof MC4 Connectors: Stable & Reliable Connection
We adopt industry-standard IP67 waterproof MC4 connectors for all wiring ports. With excellent dustproof, waterproof, oxidation-proof, and anti-loosening performance, these connectors ensure stable and tight connection under long-term outdoor vibration and extreme weather. They effectively prevent poor contact, electric sparking, and leakage risks, stabilize DC power transmission, reduce line loss, and improve overall power generation efficiency. Meanwhile, the plug-and-play design simplifies on-site installation and construction.
3. How to Choose the Right Lightning Protection PV Combiner Box
Different PV projects vary in system capacity, installation environment, voltage level, and protection standards. Reasonable selection ensures optimal safety and cost performance. You can refer to the following guidelines:
1. By System Voltage: DC 500V models are suitable for small residential PV systems; DC 1000V and 1200V high-voltage versions are ideal for commercial, industrial, and large ground power stations.
2. By Load Current: Select DC breakers ranging from 1A to 125A according to your PV string quantity and operating current to ensure accurate overload protection.
3. By Installation Environment: IP65 is sufficient for standard rooftop environments; choose IP67/IP68 high-grade protection for coastal, low-lying, humid, dusty, and harsh weather areas.
4. By Protection Requirements: Standard lightning protection models fit regular areas; upgrade high-level SPD modules for thunderstorm-prone regions to enhance anti-surge capability.
4. Custom Solutions & OEM/ODM One-Stop Service
To meet personalized demands for different PV projects, we provide not only standard combiner boxes but also free professional solution design and full OEM/ODM customization services.
Our technical team offers free tailored system solutions. According to your project scale, installation conditions, voltage parameters, protection standards, and budget, we customize the most cost-effective combiner box configuration to maximize system safety and economic benefits.
We support comprehensive OEM and ODM customization, including appearance size, protection grade, electrical parameters, interface configuration, logo printing, and functional module upgrading. With strict factory quality control, stable delivery, and complete after-sales service, we fully satisfy distributors, engineering contractors, and system integrators for standard projects and special customized projects.
Conclusion
Our lightning protection PV combiner boxes stand out with rugged flame-retardant housing, superior waterproof performance, high-quality internal components, ultra-fast lightning response, and wide scenario adaptability. Every design focuses on long-term outdoor safety and operational stability. We will continue to optimize PV power distribution products and provide professional customized services to deliver reliable protection for global photovoltaic power stations.
