PV Combiner Box: The "Smart Power Manager" of Solar Systems – A Comprehensive Guide

I. Definition and Function of PV Combiner Boxes

A PV Combiner Box (Photovoltaic Combiner Box) is a critical electrical component in solar power systems. It is responsible for collecting, protecting, and monitoring the DC power generated by PV strings and transmitting it to the inverter. Acting as the "power dispatch center" of a solar power station, it ensures efficient and safe electricity transmission.

Core Functions

Current Aggregation: Parallel connection of multiple PV strings (e.g., 12-24 strings) to reduce cable clutter and optimize system structure.

Circuit Protection: Prevents overloads, short circuits, and reverse currents, ensuring safe operation.

Smart Monitoring: Real-time detection of voltage, current, and power for each string, enabling quick fault diagnosis.

Why Do You Need a Combiner Box?

✔ Improves system reliability by preventing single-string failures from affecting overall generation.

✔ Reduces line losses and enhances transmission efficiency.

✔ Provides smart operation data, lowering long-term maintenance costs.

II. Core Roles of PV Combiner Boxes

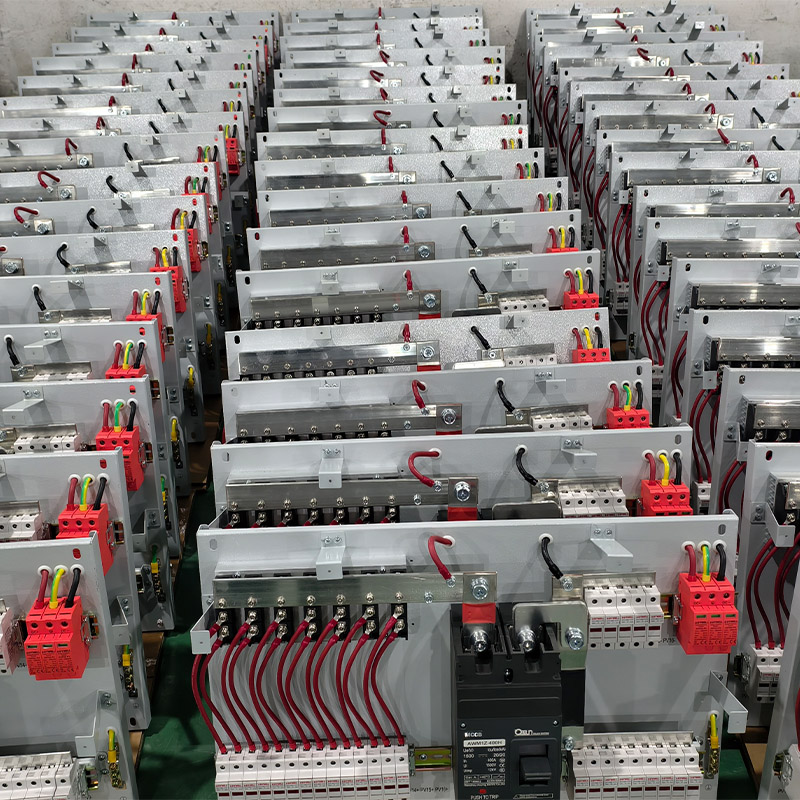

1. Current Aggregation for Optimized Transmission

PV modules are typically connected in strings, and the combiner box merges multiple strings to form a higher current output.

Example: A 10kW solar system may consist of 5 strings (2kW each), which the combiner box combines before sending power to the inverter.

2. Multi-Layered Circuit Protection

Protection Feature Function

DC Fuse/Circuit Breaker Cuts off the circuit during overloads or short circuits to prevent fire hazards.

Blocking Diode Prevents reverse current flow (e.g., when a string is shaded).

Overvoltage Protection Guards against voltage spikes caused by lightning or grid fluctuations.

3. Smart Monitoring & Maintenance

Advanced combiner boxes feature data logging, tracking:

✅ Current/voltage per string

✅ Total system power and efficiency

✅ Fault alerts (e.g., abnormal strings, tripped fuses)

Remote monitoring (4G/Wi-Fi) allows quick troubleshooting.

III. Lightning Protection in PV Combiner Boxes

Since PV systems are exposed outdoors, lightning protection is a critical design feature!

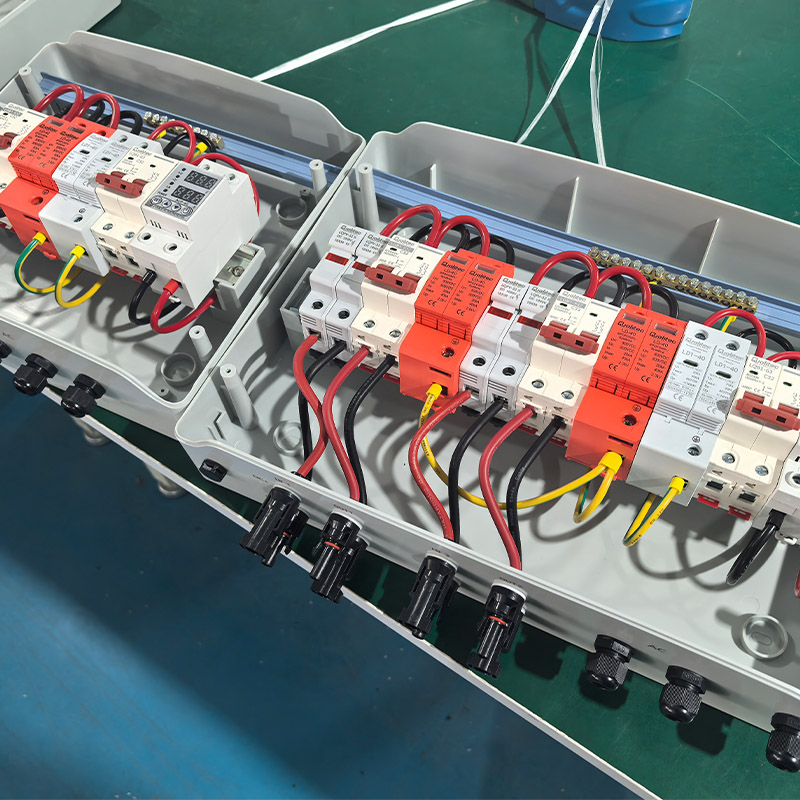

1. Surge Protection Device (SPD)

Function: Absorbs high-voltage surges from lightning or grid fluctuations.

Installation: Typically placed at the DC input/output terminals.

2. Grounding Protection

The metal enclosure must be properly grounded to safely dissipate lightning currents.

Standard: Ground resistance <4Ω (<1Ω for large-scale plants).

3. Isolation Design

Lightning isolation terminals prevent high-voltage surges from affecting other circuits.

⚠ Important Notes:

In lightning-prone areas, choose TUV/CE-certified boxes with high protection ratings (e.g., IP65).

Inspect SPDs regularly (replace every ~2 years).

IV. Types of PV Combiner Boxes & Selection Guide

Combiner boxes are categorized by application:

1. By Number of Inputs

Type                           Application                                  Features

4-8 Input (Small)          Residential rooftop PV                  Simple structure, low cost

12-24 Input (Standard) Commercial/medium-scale plants  Smart monitoring, robust lightning protection

24+ Input (Large)        Utility-scale solar farms                  High protection (IP67), remote control

2. By Functionality

Basic: Fuses + switches (budget projects)

Smart: Data logging, anti-reverse, PID recovery (premium commercial use)

Explosion-Proof: For hazardous environments (stainless steel + certifications)

3. By Mounting Style

Wall-Mounted: Space-saving for rooftops

Floor-Standing: Easier maintenance for large plants

V. How to Choose the Right Combiner Box?

1. Match Input Channels

Residential: 4-8 inputs

Commercial: 12-24 inputs

Utility-scale: 24+ inputs (modular design)

2. Check Protection Rating

Outdoor: Minimum IP65 (dust/waterproof)

Coastal/industrial: Stainless steel housing

3. Prioritize Smart Features

Opt for models with IV curve scanning and remote monitoring for easier diagnostics.

4. Verify Certifications

International: TUV, CE, UL (North America)

Domestic: CQC, "Golden Sun" certification

Conclusion: The Unsung Hero of Solar Systems

Though often overlooked, PV combiner boxes are indispensable for efficient and safe solar power generation. From current aggregation to lightning protection, they elevate system performance at every level.

Selection Tips:

🔹 Residential PV → 4-8 input smart models (Wi-Fi monitoring)

🔹 Commercial plants → 12-24 input, high-protection (IP65 + SPD)

🔹 Utility-scale → Modular, remotely managed

Upgrade your solar system today—let the combiner box be your "smart power manager"! ☀️
