PV Disconnect Switch: The "Safety Guardian" of Solar Systems – A Complete Guide

I. Definition and Function of PV Disconnect Switches

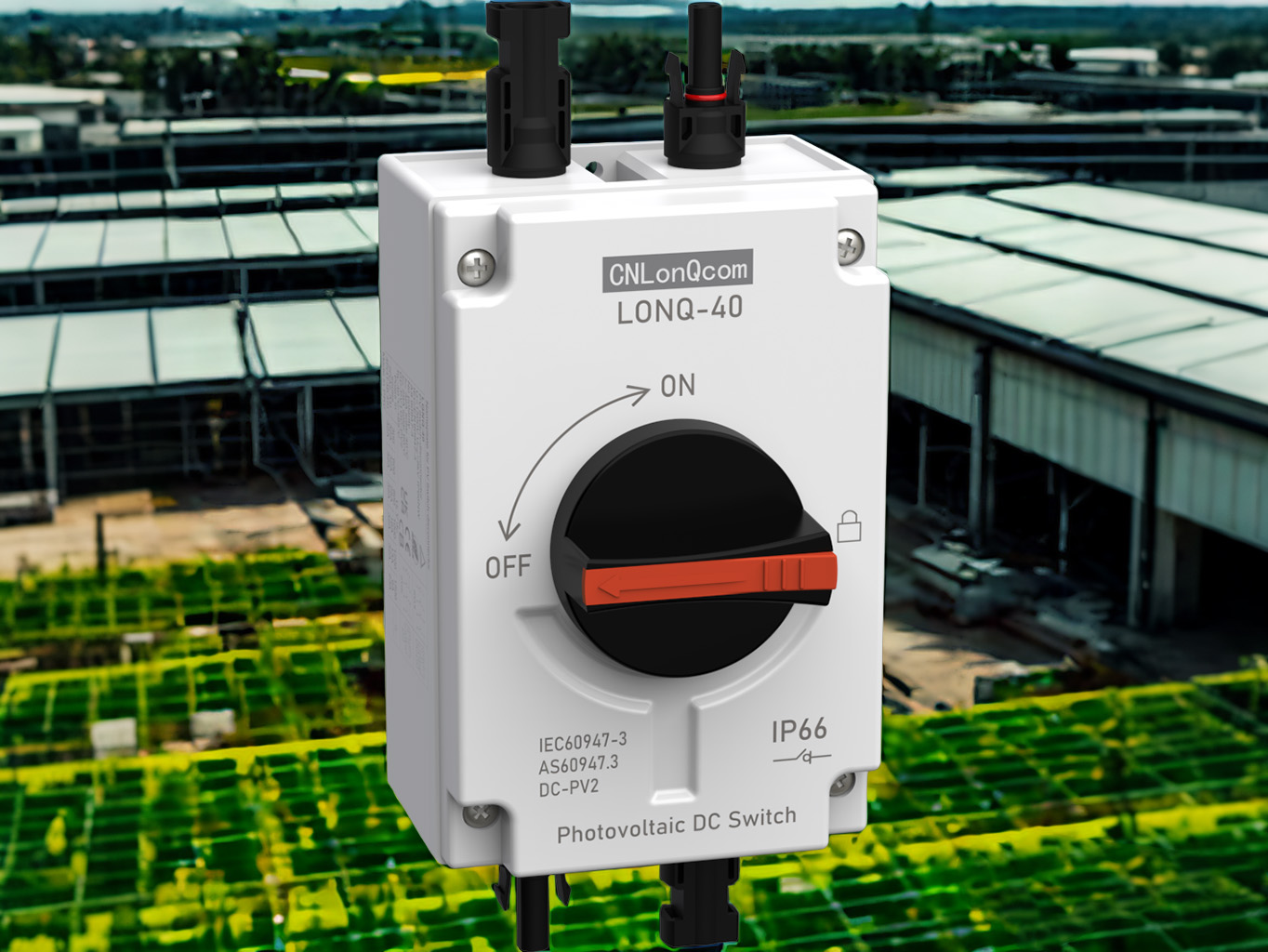

A PV Disconnect Switch is a safety switch specifically designed for DC circuits in solar power systems.     It serves two primary functions: electrical isolation and emergency shutdown, acting as the "emergency brake" of a PV system to ensure absolute safety during maintenance or faults.

Core Functions

Physical Isolation: Provides a visible breakpoint to ensure no current flows during maintenance.

Overload Protection: Some models integrate fuses to prevent short-circuit damage.

System Segmentation: Allows selective disconnection of individual strings without affecting the entire system.

Why Must Solar Systems Use Dedicated Disconnect Switches?

✔ Standard AC switches cannot reliably interrupt DC arcs (hazardous!).

✔ Complies with international safety standards (e.g., NEC 690.17).

✔ Prevents reverse current from damaging components.

II.     Core Roles of PV Disconnect Switches

1.     Safety Isolation (Primary Purpose)

Maintenance Safety: Provides a clear physical breakpoint when servicing inverters or wiring.

Emergency Shutdown: Quickly cuts off high DC voltage in case of fire, lightning, etc.

Reverse Current Protection: Prevents inverters from feeding power back to panels at night.

2.     Overload Protection (Enhanced Features)

Protection Type Implementation Effectiveness

Short-Circuit Protection Built-in DC fuse Interrupts fault current (up to 1000VDC/20kA).

Overcurrent Protection Thermomagnetic trip mechanism Prevents cable overheating/fires.

Arc Fault Protection Fast-breaking design (<3ms) Complies with UL1699B arc fault standards.

3.     System Management

String-Specific Control: Large plants can manage sections (e.g., 1 switch per 10 strings).

Status Visibility: Mechanical indicator window (some with LED lights) shows ON/OFF state.

III.     Types and Selection of PV Disconnect Switches

1.     By Structure

Type Features Applications

Manual Handle Type Mechanical handle + visible breakpoint, low cost.    Residential/small commercial systems.

Load Break Type Can interrupt load current (requires arc chute).    Medium-scale PV arrays.

Fuse-Combination Type Integrated DC fuse, dual-purpose design.    High short-circuit current scenarios.

2.     By Voltage Rating

600VDC Class: Standard for residential systems (China/Europe).

1000VDC Class: Large solar farms (U.S. NEC requirement).

1500VDC Class: Next-gen ultra-high voltage systems (cost-efficient).

IV. How to Choose a PV Disconnect Switch?

1.     Check Certifications

North America: UL 98B, NEC 690.17.

Europe: IEC 60947-3, VDE 0660.

2.     Key Parameters

Rated voltage ≥ system max voltage (20% margin).

Breaking capacity ≥ expected short-circuit current.

Protection rating: IP65+ for outdoor use.

V. Installation and Maintenance Tips

1.     Installation Location

Mandatory: Within 1 meter of inverter DC input (NEC requirement).

Recommended: At combiner box output.

2.     Maintenance

Check contact oxidation every 6 months.

Test breaking speed annually.

Inspect grounding resistance before thunderstorm season.

Conclusion: Safety First, Isolation is Key!

Though small, PV disconnect switches are the last line of defense for personal safety.     With the rise of 1500V systems and smart PV, next-gen switches are evolving toward higher voltage, faster breaking, and IoT integration.
