Comprehensive Guide to Solar PV Systems: From Working Principles to Key Components

Solar photovoltaic (PV) systems are rapidly growing worldwide as a key clean energy solution. However, many people are unfamiliar with how they work and their critical components. This article provides an in-depth analysis of how solar PV systems are structured and operate, with detailed explanations of key equipment such as combiner boxes, over/under-voltage protectors, isolator switches, solar connectors, fuses, and molded case circuit breakers (MCCBs).

1. How Is a Solar PV System Structured?

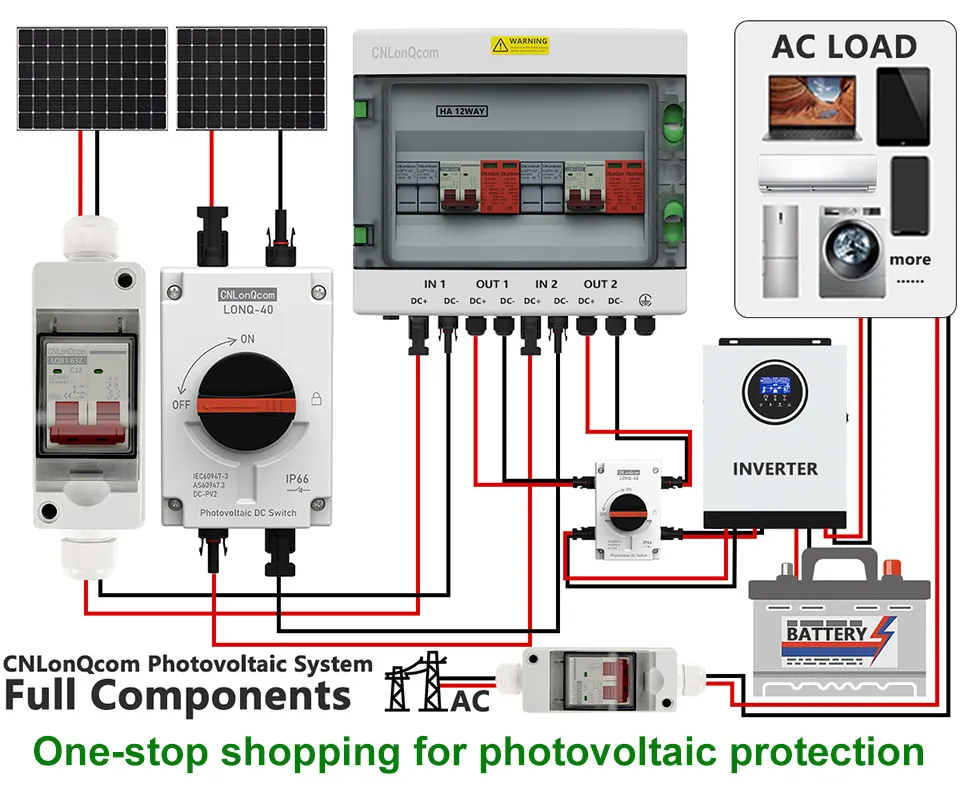

The core objective of a solar PV system is to convert sunlight into electricity and safely deliver it to the grid or energy storage. A complete system typically includes the following components:



Solar Panels (PV Modules) → Absorb sunlight and generate direct current (DC)



Combiner Box (LQX/LQT Series) → Combines currents from multiple solar panels



Inverter → Converts DC to alternating current (AC)



Power Distribution & Protection Devices (fuses, circuit breakers, isolator switches, etc.) → Ensures system safety



Energy Storage System (Optional) → Stores excess electricity (e.g., lithium batteries)



Grid or Load → Supplies power to homes, businesses, or the grid



2. How Does a Solar PV System Work?

(1) Photovoltaic Effect & Power Generation

Sunlight strikes solar panels (PV modules), and the silicon semiconductor material absorbs photons, generating direct current (DC).



A single panel typically produces 30V-50V (DC), with current depending on sunlight intensity and panel efficiency.



(2) Current Combining (Combiner Box)

Multiple panels are connected in series or parallel, and the combined current flows into a PV combiner box for centralized management.



The combiner box includes fuses, surge protection (SPD), and current monitoring to prevent overloads or short circuits.



(3) DC Power Distribution & Protection (Fuses, Isolator Switches, MCCBs)

Fuse (LQPV-32 Series): Prevents excessive current from damaging equipment.



Isolator Switch (LONQ-40 Series): Manually disconnects circuits for maintenance.



Molded Case Circuit Breaker (LQM1/M3 Series): Provides overload and short-circuit protection (e.g., 1000V DC-rated MCCBs).



(4) Inverter Conversion (DC → AC)

DC power enters the inverter, converting it into 220V/380V AC for household or industrial use.



Grid-tied systems feed excess power back to the grid, while off-grid systems store it in batteries.



(5) Over/Under-Voltage Protection (AVP 2P/4P Series)

When grid voltage fluctuates, the over/under-voltage protector automatically cuts off power to prevent equipment damage.



(6) Wiring & Connections (Solar Connectors)

MC4 solar connectors are the industry standard, ensuring waterproof, corrosion-resistant, and high-current transmission (e.g., 30A/1000V).



3. Key Components of a Solar PV System

(1) PV Combiner Box

Function: Combines multiple solar panel strings and provides protection.



Key Components:



Fuses (overcurrent protection)



Surge Protection Device (SPD) (lightning protection)



Current/voltage monitoring (optional smart features)



(2) Over/Under-Voltage Protector (OVP/UVP)

Function: Monitors grid voltage and disconnects power if voltage is too high (>270V AC) or too low (<170V AC).



(3) DC Isolator Switch

Function: Manually disconnects DC circuits for safe maintenance.



Common Types:



Rotary isolator switches (suitable for outdoor use)



Circuit breaker-type isolators (with integrated protection)



(4) Solar Connectors (MC4 Standard)

Key Features:



Waterproof, UV-resistant, high-temperature tolerance



Rated current: 30A



Rated voltage: 1000V DC



(5) PV Fuses (gPV/gR Series)

Function: Protects PV arrays from short circuits and overloads.



Differences from standard fuses:



High voltage rating (DC 1000V )



High breaking capacity (can interrupt large fault currents)



(6) Molded Case Circuit Breaker (MCCB for Solar)

Function: Provides overload and short-circuit protection for DC systems.



Typical Specifications:



Rated voltage: DC 1000V



Rated current: 32A-250A



4. Applications of Solar PV Systems

Residential Rooftop Solar (5kW-10kW, with storage)



Commercial & Industrial PV Plants (50kW-1MW, grid-tied)



Off-Grid Solar Systems (Remote areas, battery-based)



Agrivoltaics (Solar Agriculture Integration)



5. Future Trends: Smarter & More Efficient Solar Systems

Smart Monitoring: Real-time tracking via mobile apps (e.g., power generation, fault alerts).



Solar Storage Integration: Hybrid systems like Tesla Powerwall.



Microinverters: Optimizes each panel individually for higher efficiency.



Conclusion

Solar PV systems operate through the process of PV modules → combiner box → inverter → power distribution → grid/storage, with critical components like combiner boxes, fuses, isolator switches, connectors, and MCCBs ensuring efficient, safe, and stable performance.
