10x38mm gPV Fuse Link DC1000V 1~32A

1038PV

1.Specialized gPV Solar Protection: Designed specifically for photovoltaic applications (gPV class), providing reliable overcurrent and short-circuit protection for solar strings and panels

2.High Voltage & Breaking Capacity: Rated for DC 1000V with a high breaking capacity of 33kA, ensuring safe and immediate fault interruption under high-stress DC conditions

3.Standard 10x38mm Dimensions: Built to universal 10x38mm dimensions, allowing for seamless compatibility with standard PV fuse holders and combiner box terminals

4.Reliable Current Ratings: Supports a wide range of rated currents (1~32A,) with precise melting characteristics for optimal circuit safety

5.Globally Certified Quality & Bespoke Engineering: Fully compliant with IEC 60269-6 standards and certified with CE. As your direct manufacturing partner, CNLONQ delivers a one-stop customized protection solution—providing complimentary professional design planning, technical consultation, and high-fidelity 3D visualization services tailored to your exact engineering specifications

Free DC/AC Design Solution

Product Description & Video

Parameters

Product Parameters

Technical Data
Model	1038PV
Suitable Fuse Holder Model	LQR3-32,LQR3-32X, LQPV-32,LQPV-32X
Rated Voltage Ue	DC1000V
Rated current In	1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A
Breaking Capacity Icu	20kA
Standard	IEC60269-6,
Quality Certificate	TUV, CE,ISO9001,ROHS,IEC
Material	Ceramic shell internal silver wire
Operating Temperature	-30℃ to 70℃
Humidity	≤95%
Altitude	2000m

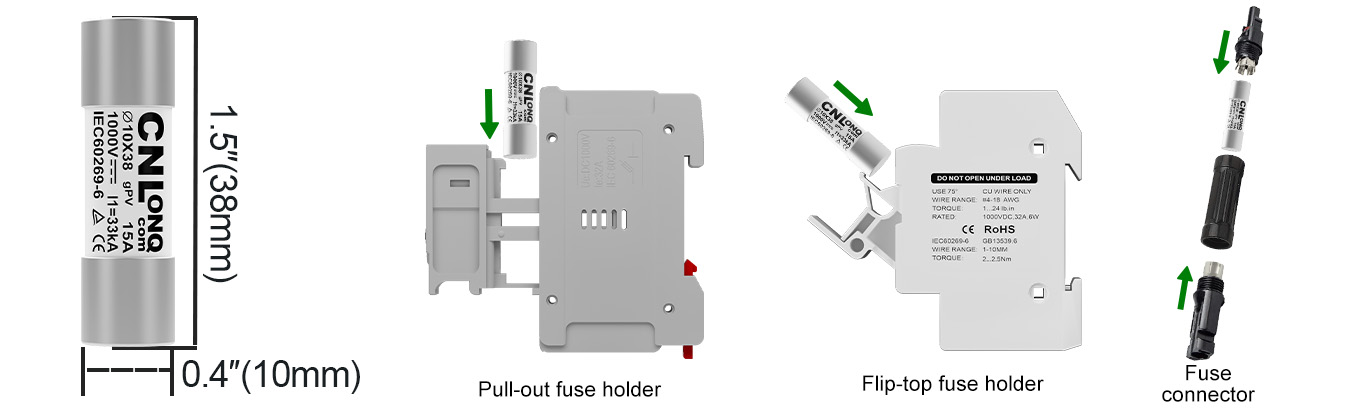

Product Size	10x38mm

Features

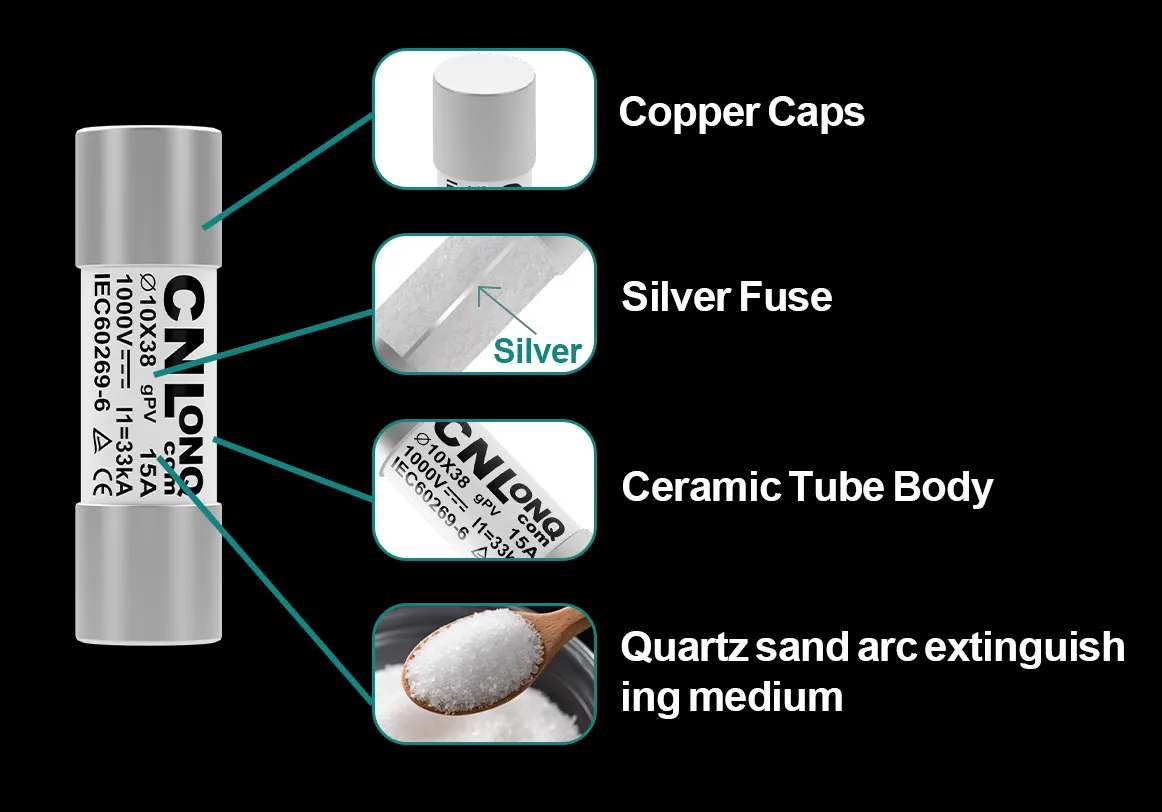

High DC Breaking Capacity

Safely clears short-circuit faults in DC circuits

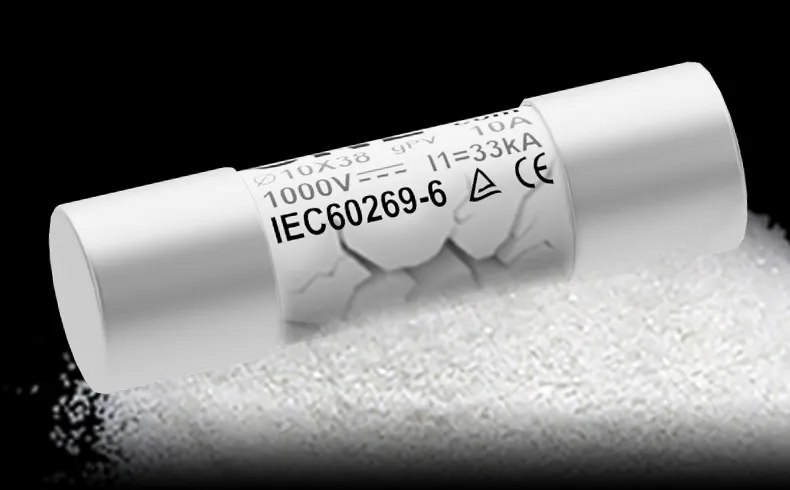

Quartz Sand Extinguishing Medium

High-purity quartz sand for rapid arc extinction

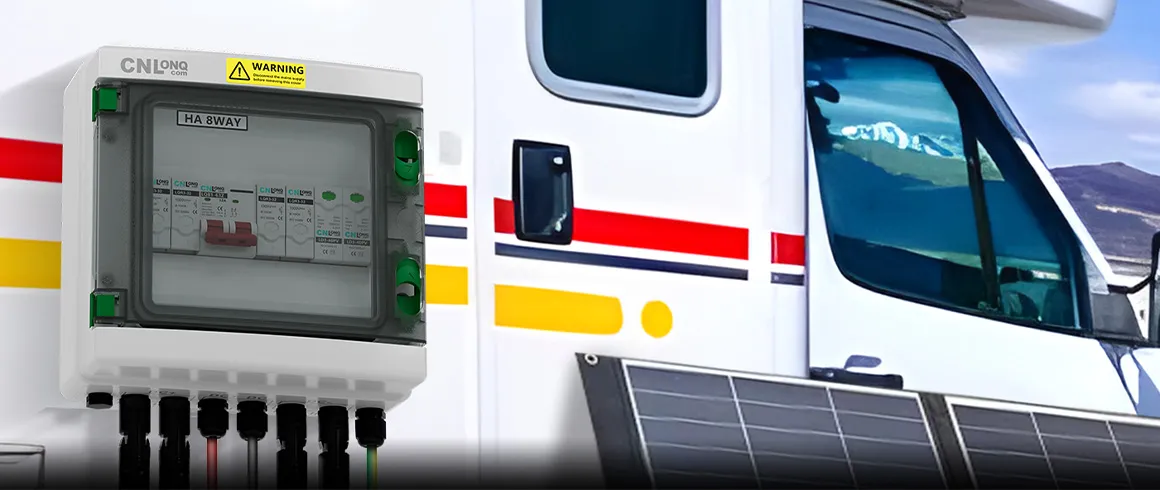

PV System Application

Protects solar strings, combiner boxes, and inverters

Nickel-Plated Copper Caps

High electrical conductivity and corrosion resistanc

Silver Fuse Element:

Provides rapid melting characteristics and reliability

Ceramic Tube Body

Insulated, fire-resistant body for extreme overcurrents

Free Customized Solutions OEM/ODM

We design exclusive PV solutions tailored to your needs at no cost.

Why do you need a CNLONQ Fuse Link for your PV system?

A CNLONQ gPV Fuse Link protects your photovoltaic system by providing reliable overcurrent and short-circuit interruption for solar strings at DC 1000V
