2in 2out IP65 Disconnect Switch Isolator Box DC1200V

"CNLonQcom LQX2/2DC1200V QQ 2Strings 2 input 2 output waterproof junction box isolation box is designed to provide protection for PV or DC systems, while also serving as a circuit breaker.

Waterproof junction box is made of PC+ABS engineering plastics, IP65 waterproof design, the interface adopts IP68 waterproof connector(PG connector),, which has the characteristics of flame retardant, high temperature resistance, UV resistance, impact resistance and so on.

The miniature circuit breaker adopts the principle of thermal magnetic release, the sectional capacity can be up to 6kA, and adopts 35mm rail mounting.

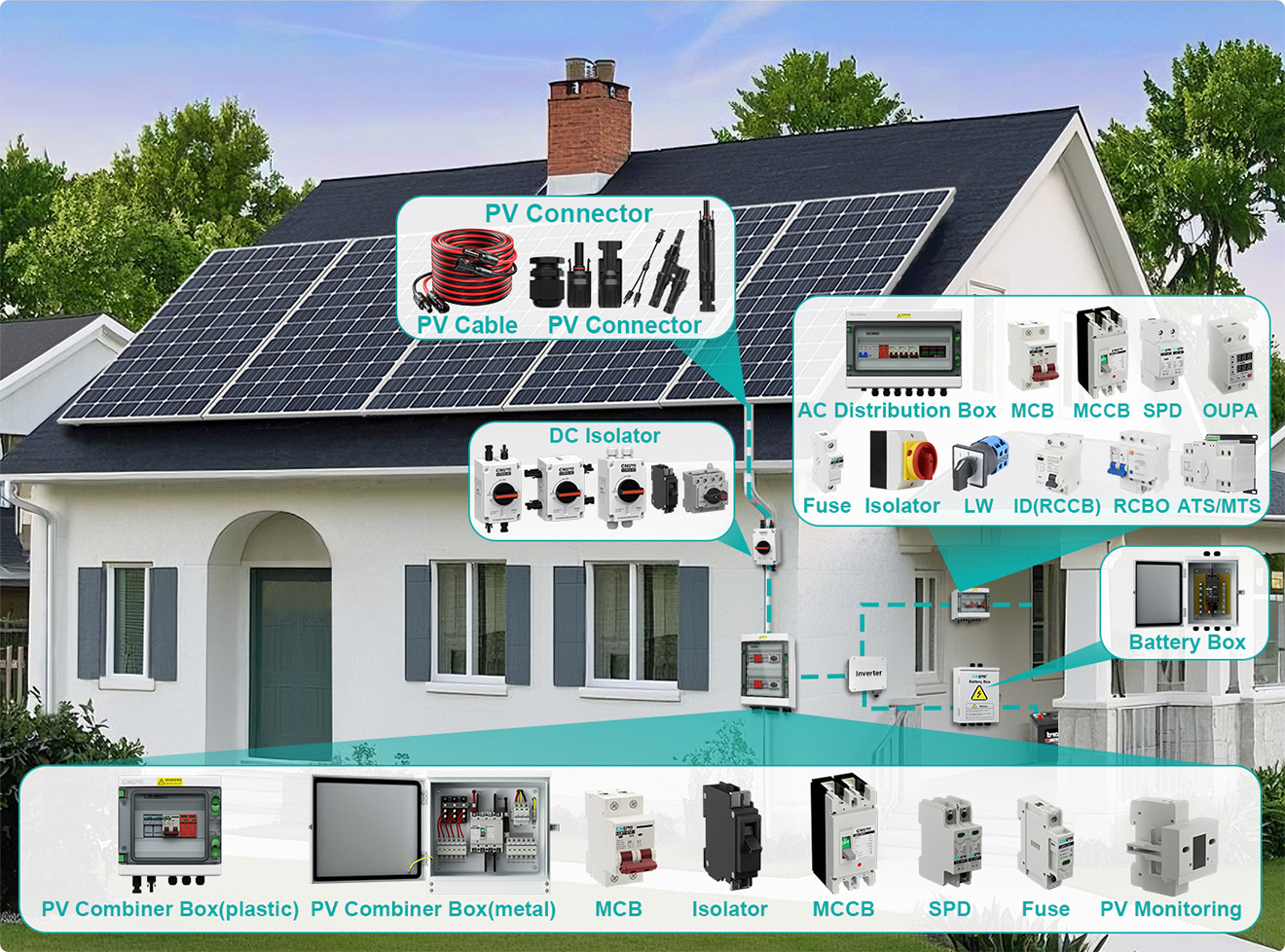

CNLonQcom PV combiner box are commonly used as key components in solar energy systems, solar panels, utility-scale solar farms, commercial and industrial rooftop systems, residential installations, agricultural photovoltaic projects, and floating photovoltaic power plants.

CNLonQcom is a professional Chinese factory which specializes in manufacturing and selling PV combiner box and can bring you better quality and price."

Free DC/AC Design Solution

Product Description & Video

Parameters

Product Parameters

Technical data
Product Name			PV DC Disconnect Box
Model			LQX2/2DC1200VQQ
Type			Isolator with IP65 Junction Box
String			2Strings 2 input 2 output
Rated Voltage Ue			DC1200V
Rated Current In			32A
Impulse Withstand Voltage Uimp			8kV
Breaking Capacity Icu			6kA
Quality Certificate			CE, TUV, CB, AZ, UKCA, ISO, IP65, RoHS, IEC
Standard			IEC60947-3
Protection Level			IP65
Impact Level			IK10
Material			PC ABS(Box), PA(Isolator)
Operating Temperature			-25℃ ~ 60℃
Humidity			≤95%
Connector			Compatible with MC4 or PG
Installation			Wall Mounting
Altitude			2000m
Warranty			18 months
Dimension (without connector)			LxWxH:210x215x100mm

Features

Product Name

PV DC Disconnect Box

Model

LQX2/2DC1200VQQ

Type

Isolator with IP65 Junction Box

String

2Strings 2 input 2 output

Rated Voltage Ue

DC1200V

Rated Current In

32A

Impulse Withstand Voltage Uimp

8kV

Why do you need a CNLonQcom PV Combiner Box for your PV system?

"CNLonQcom LQX2/2DC1200V QQ 2Strings 2 input 2 output waterproof junction box isolation box is designed to provide protection for PV or DC systems, while also serving as a circuit breaker.
Waterproof junction box is made of PC ABS engineering plastics, IP65 waterproof design, the interface adopts IP68 waterproof connector(PG connector),, which has the characteristics of flame retardant, high temperature resistance, UV resistance, impact resistance and so on.
The miniature circuit breaker adopts the principle of thermal magnetic release, the sectional capacity can be up to 6kA, and adopts 35mm rail mounting.
CNLonQcom PV combiner box are commonly used as key components in solar energy systems, solar panels, utility-scale solar farms, commercial and industrial rooftop systems, residential installations, agricultural photovoltaic projects, and floating photovoltaic power plants.
CNLonQcom is a professional Chinese factory which specializes in manufacturing and selling PV combiner box and can bring you better quality and price."
