2in 2out PV Combiner Box DC600V

"LQX2/2DC600V L7 2 strings 2 in 2 out solar PV combiner box is designed for convergence circuits and protection between solar panel and inverter, rated voltage DC500V, maximum input current (fuse) 6A/10A/15A/20A/25A/30A optional, maximum output current (circuit breaker) 16A/20A/25A/32A/40A/50A/63A optional.

The junction box is made of PC+ABS engineering plastic, IP65 waterproof design, with flame retardant, high temperature resistance, UV resistance, impact resistance and other characteristics.

Fuses, surge protectors, circuit breakers and other DC components are integrated in the plastic box. The photovoltaic convergence box plays the role of short-circuit protection, overload protection, switching circuits, surge protection, lightning protection, intelligent monitoring and so on.

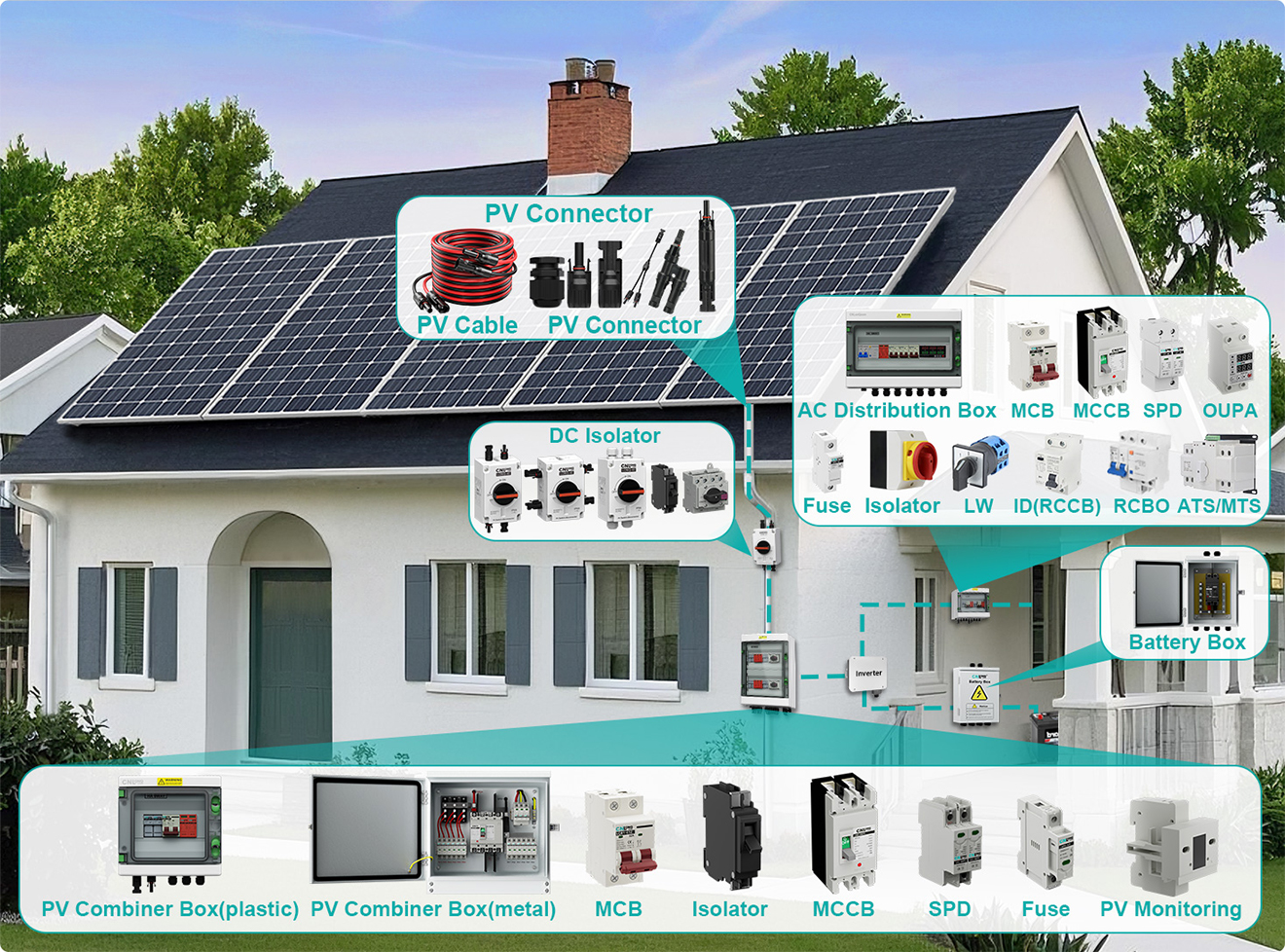

CNLonQcom PV combiner box are commonly used as key components in solar energy systems, solar panels, utility-scale solar farms, commercial and industrial rooftop systems, residential installations, agricultural photovoltaic projects, and floating photovoltaic power plants.

CNLonQcom is a professional China factory which specializes in manufacturing and selling PV combiner box and can bring you better quality and price."

Free DC/AC Design Solution

Product Description & Video

Parameters

Product Parameters

Technical data
Product Name			PV DC Combiner Box
Model			LQX2/2DC600VL7
Type			MCB and SPD and Fuse with IP65 Junction Box
String			2Strings 2input 2output
Rated Voltage Ue			DC600V
Maximum input current per string (Fuse)			10A, 15A, 20A, 25A, 30A optional
Maximum output current per string (MCB)			32A
In (8/20)us (SPD)			20kA
Imax (8/20)us (SPD)			40kA
Protection Level Up (SPD)			2.2kV
Impulse Withstand Voltage Uimp (MCB)			4kV
Breaking Capacity Icu (MCB)			6kA, 10kA
Quality Certificate			CE, ISO, IP65, RoHS, IEC
Standard			IEC 60947-2, IEC61643-31, IEC60269-6
Protection Level			IP65
Impact Level			IK10
Material			PC ABS(Box), PC(MCB, SPD, Fuse)
Operating Temperature			-25℃ ~ 60℃
Humidity			≤95%
Connector			LMC4 or PG
Installation			Wall Mounting
Altitude			2000m
Warranty			18 months
Dimension (without connector)			LxWxH:258x298x128mm

Features

Product Name

PV DC Combiner Box

Model

LQX2/2DC600VL7

Type

MCB and SPD and Fuse with IP65 Junction Box

String

2Strings 2input 2output

Impulse Withstand Voltage Uimp

32A

Rated Current In

10A, 15A, 20A, 25A, 30A optional

Rated Voltage Ue

DC600V

Why do you need a CNLonQcom PV Combiner Box for your PV system?

"LQX2/2DC600V L7 2 strings 2 in 2 out solar PV combiner box is designed for convergence circuits and protection between solar panel and inverter, rated voltage DC500V, maximum input current (fuse) 6A/10A/15A/20A/25A/30A optional, maximum output current (circuit breaker) 16A/20A/25A/32A/40A/50A/63A optional.
The junction box is made of PC ABS engineering plastic, IP65 waterproof design, with flame retardant, high temperature resistance, UV resistance, impact resistance and other characteristics.
Fuses, surge protectors, circuit breakers and other DC components are integrated in the plastic box. The photovoltaic convergence box plays the role of short-circuit protection, overload protection, switching circuits, surge protection, lightning protection, intelligent monitoring and so on.
CNLonQcom PV combiner box are commonly used as key components in solar energy systems, solar panels, utility-scale solar farms, commercial and industrial rooftop systems, residential installations, agricultural photovoltaic projects, and floating photovoltaic power plants.
CNLonQcom is a professional China factory which specializes in manufacturing and selling PV combiner box and can bring you better quality and price."
