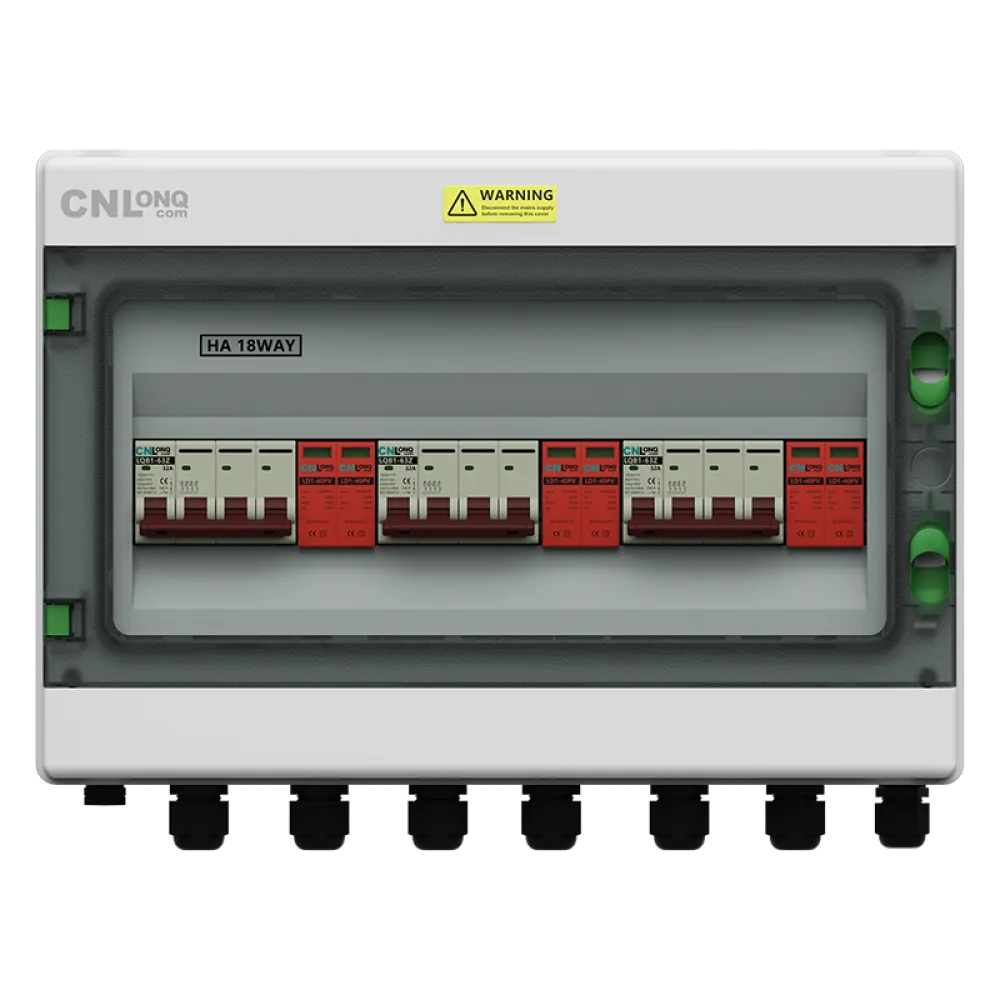

3in 3out IP65 Lightning Protection with Circuit Breaker Box DC1000V

"LQX3/3DC1000V BS 3strings 3 input 3 output solar PV combiner box is designed for convergence circuits and protection between solar panel and inverter, rated voltage DC1000V, rated current (MCB) 16A/20A/25A/32A/40A/50A/63A/80A/100A/125A optional.

The junction box is made of PC+ABS engineering plastic, IP65 waterproof design, with flame retardant, high temperature resistance, UV resistance, impact resistance and other characteristics.

This PV combiner box is equipped with miniature circuit breakers and surge protectors.

The photovoltaic convergence box plays the role of short-circuit protection, overload protection, switching circuits, surge protection, lightning protection, intelligent monitoring and so on.

CNLonQcom PV combiner box are commonly used as key components in solar energy systems, solar panels, utility-scale solar farms, commercial and industrial rooftop systems, residential installations, agricultural photovoltaic projects, and floating photovoltaic power plants.

CNLonQcom is a professional China factory which specializes in manufacturing and selling PV combiner box and can bring you better quality and price."

Free DC/AC Design Solution

Product Description & Video

Parameters

Product Parameters

Technical data
Product Name			PV DC Lightning Protection Box
Model			LQX3/3DC1000VBS
Type			MCB and SPD with IP65 Junction Box
String			3Strings 3input 3output
Rated Voltage Ue			DC1000V
Rated Current In			10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A optional
In (8/20)us (SPD)			20kA
Imax (8/20)us (SPD)			40kA
Protection Level Up (SPD)			3.6kV
Impulse Withstand Voltage Uimp (MCB)			4kV
Breaking Capacity Icu (MCB)			6kA
Quality Certificate			CE, ISO, IP65, RoHS, IEC
Standard			IEC 60947-2, IEC61643-31
Protection Level			IP65
Impact Level			IK10
Material			PC ABS(Box), PA(MCB, SPD)
Operating Temperature			-25℃ ~ 60℃
Humidity			≤95%
Connector			LMC4 or PG
Installation			Wall Mounting
Altitude			2000m
Warranty			18 months
Dimension (without connector)			LxWxH:285x410x128mm(10~63A), 422x298x130mm(80~125A)

Features

Product Name

PV DC Lightning Protection Box

Model

LQX3/3DC1000VBS

Type

MCB and SPD with IP65 Junction Box

String

3Strings 3 input 3 output

In (8/20)us (SPD)

20kA

Rated Current In

10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A optional

Rated Voltage Ue

DC1000V
