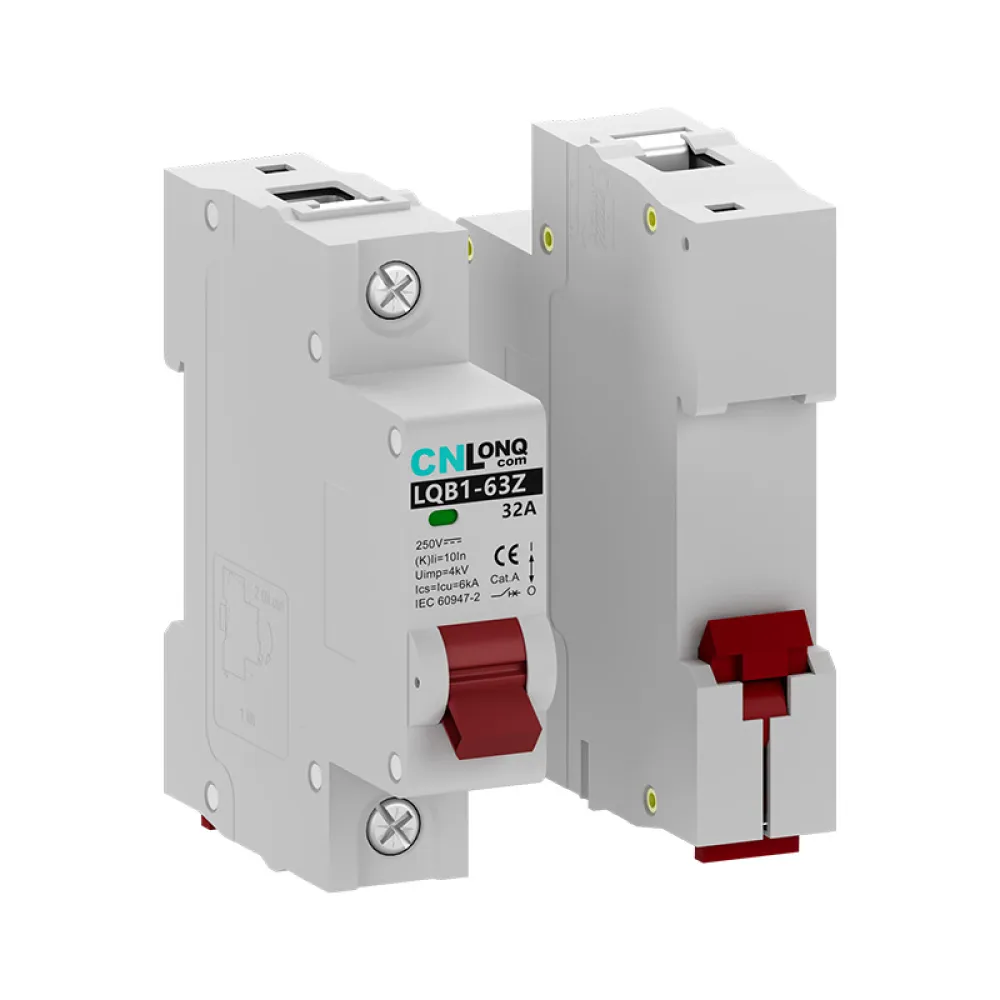

DC12~1000V 10~63A 1P/2P/3P/4P Miniature Circuit Breaker LQB1-63Z

1. CNLONQ miniature circuit breakers are specifically designed for PV and solar applications
1P/2P/3P/4P DC miniature circuit breakers provide reliable overload/short-circuit protection and isolation for photovoltaic systems rated at 12-1000V DC, 10A/16A/20A/25A/32A/40A/50A/63A, with a breaking capacity up(Icu) to 6kA.
2. Flame-retardant housing and silver contacts
Features a flame-retardant, UV-resistant PA housing, silver alloy contacts, and a high-capacity pure copper coil to ensure excellent arc extinction performance and reliable overcurrent/short-circuit protection.

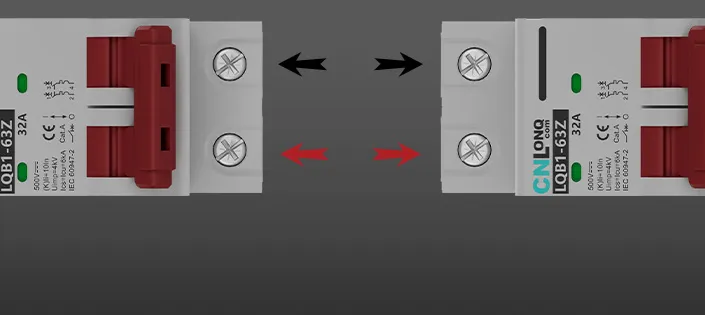

3. Non-Polarity and Thermomagnetic Trip
Precision thermomagnetic trip technology combined with enhanced DC arc extinction capability ensures safe and reliable disconnection of PV circuits. Non-polarity wiring supports reverse wiring applications, reducing cable and power losses.
4. LQB1-63Z Applications

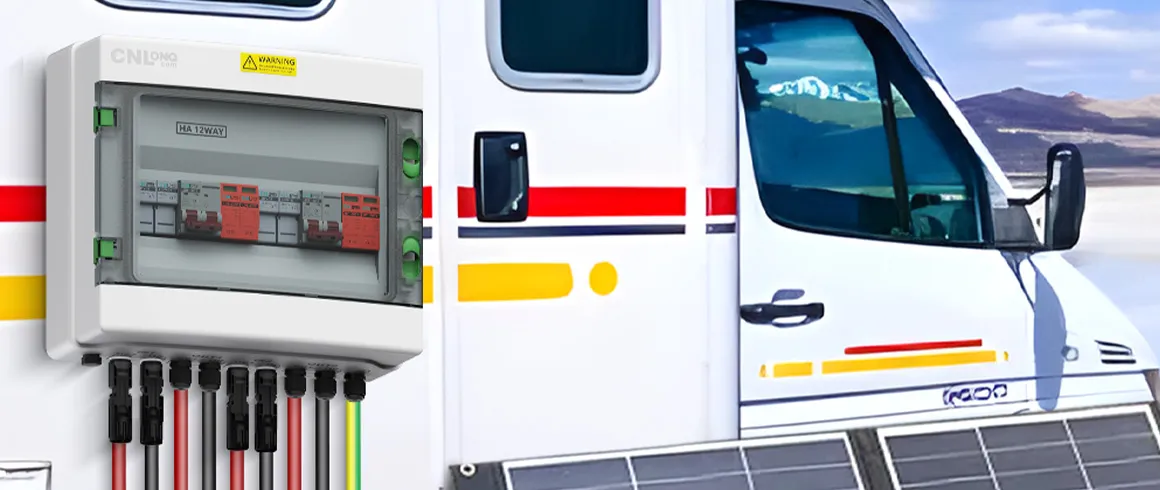

Zhongnong circuit breakers are suitable for solar panel arrays, solar charge controllers, inverters, RVs, grid-connected/off-grid systems, residential rooftops, and other PV DC systems; also compatible with AC systems.
5. Globally Certified and Professional PV Protection Equipment Manufacturer
Our MCB products hold CE, ISO, and GTS certifications, complying with IEC 60947-2 standards. CNLONQ provides customers with one-stop PV protection equipment solutions. We develop and manufacture isolator switche, PV combiner box(MCB, SPD, Fuse, MCCB), DC smart monitoring, battery protection box, AC distribution box, and PV connectors. Simply contact us, and we will analyze your requirements and create customized product solutions and 3D models for you
