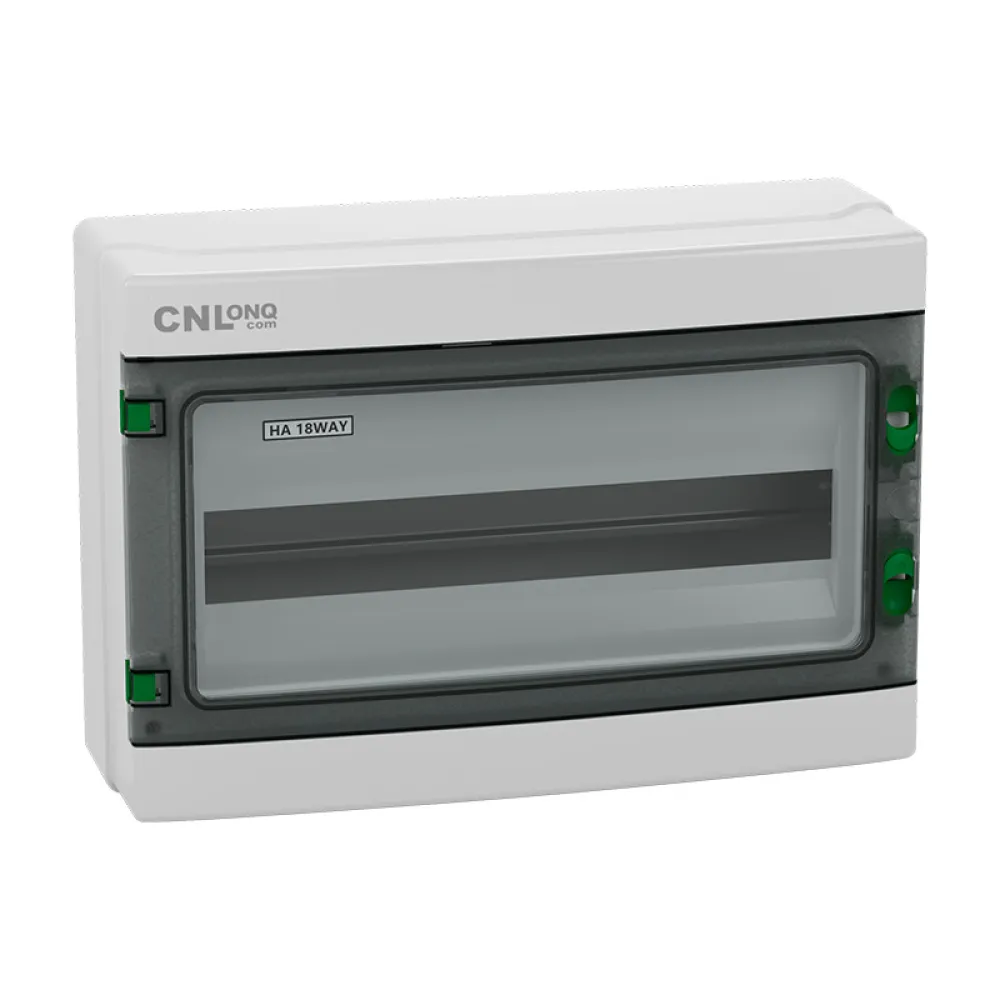

18 ways IP65 Waterproof Junction Distribution Box

LQX-A18

CNLONQ Original IP65 Waterproof Performance: Expertly engineered by CNLONQ, this 18-way distribution box features a high-quality sealing gasket that provides an IP65-rated barrier against heavy rain, dust, and moisture, ensuring 100% protection for indoor and outdoor electrical setups.

Precision 18-Way DIN Rail Design: This CNLONQ LQX-A series enclosure is designed with a standard internal DIN rail, perfectly accommodating up to 18 modules (MCBs RCD, Fuse, SPD, OUPA or ATS, etc. up to 324 mm wide). The transparent flip-up window allows for quick status monitoring without exposing live components to the environment.

Global Compliance & Safety Certifications: Trust in CNLONQ’s rigorous quality control; this junction box is fully CE, ISO, and IP65 certified. It strictly adheres to IEC 60529 international standards, making it a reliable choice for professional contractors and global export projects.

High-Impact & UV-Resistant Construction: Manufactured using CNLONQ’s premium flame-retardant ABS and PC materials, this weatherproof breaker box is built to withstand high-impact shocks and prolonged UV exposure, preventing cracking or fading in harsh sunlight.

CNLONQ Multi-Purpose Applications: As a weatherproof, universal solution designed to meet modern energy needs, this four-circuit distribution box is ideal for solar PV systems, electric vehicle charging stations, outdoor lighting, and industrial automation. Its factory-customized pre-drilled holes enable quick and neat cable routing

Free DC/AC Design Solution

Product Description & Video

Parameters

Product Parameters

Technical data
Product Name			Waterproof Junction Box
Model			LQX-A18
WAY			18 ways
Quality Certificate			CE, ISO, IP65, IEC
Standard			IEC 60529
Protection Level			IP65
Impact Level			IK10
Material			PC(transparent part) ABS(other part)
Operating Temperature			-40℃ ~ 85℃
Lid opening method			Spring lock, press to unlock. Open the lid to the left
Installation			Wall Mounting
Altitude			2000m
Warranty			18 months
Size and Weight
Product Size LWH (mm)			286410130
Product Weight (kg)
Inner box package Size (mm)
Inner box package Weight (kg)
Outer Case Packaging Details (Pcs)
Outer Case size (mm)
Outer Case Weight (kg)

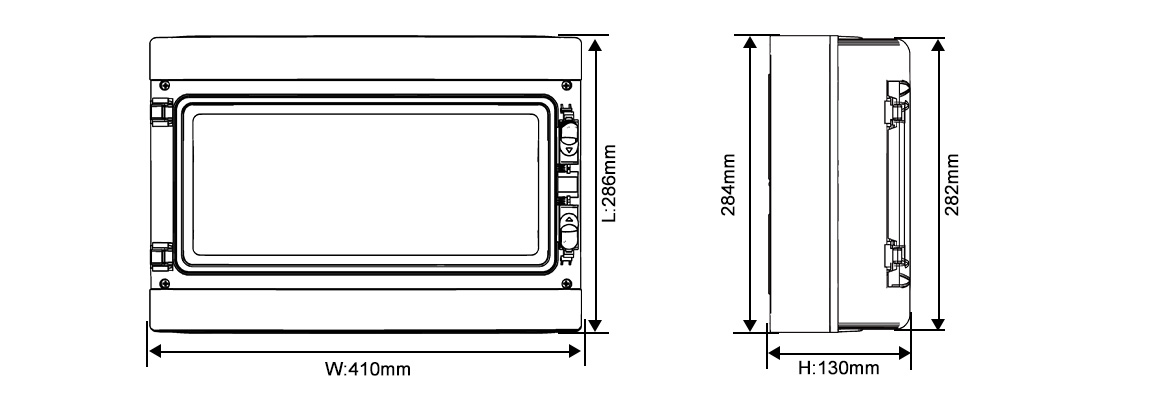

Dimensions of the 18-way waterproof box

Features

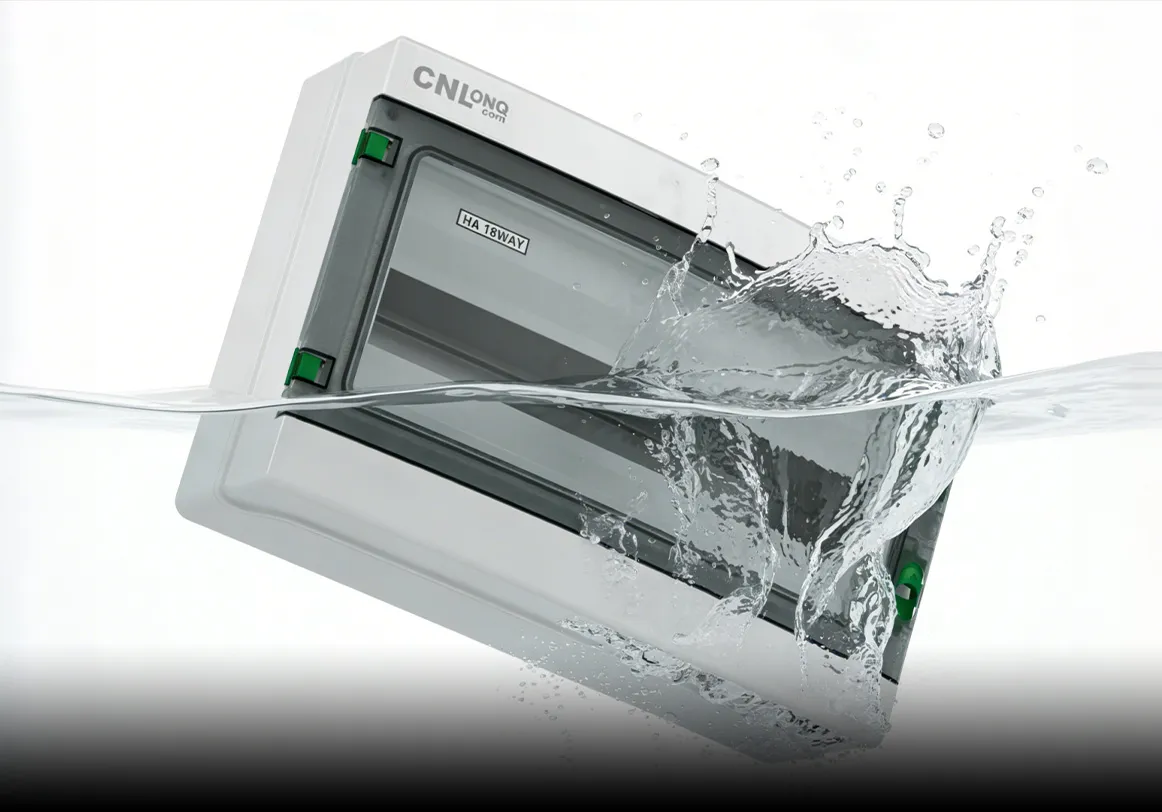

IP65 waterproof

Passed IP65 protection testing. The housing is made of UV-resistant PC+ABS material, ensuring a long service life.

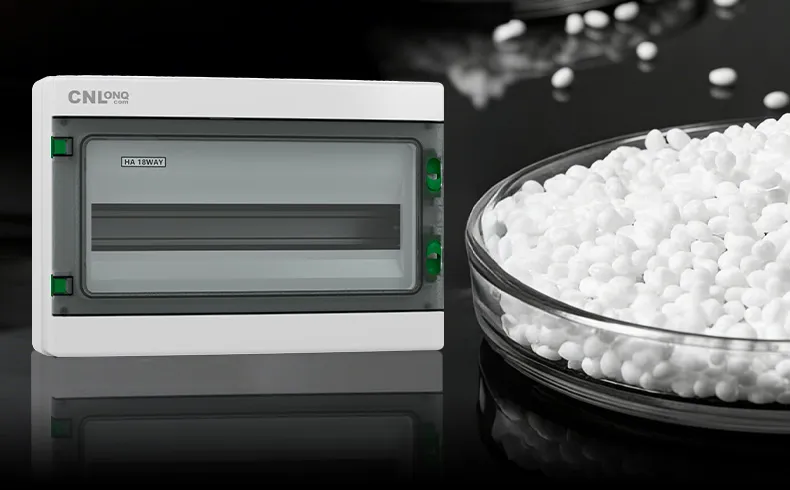

PC+ABS Housing

Solid craftsmanship and high-quality materials; durable and resistant to pressure, aging, and impacts

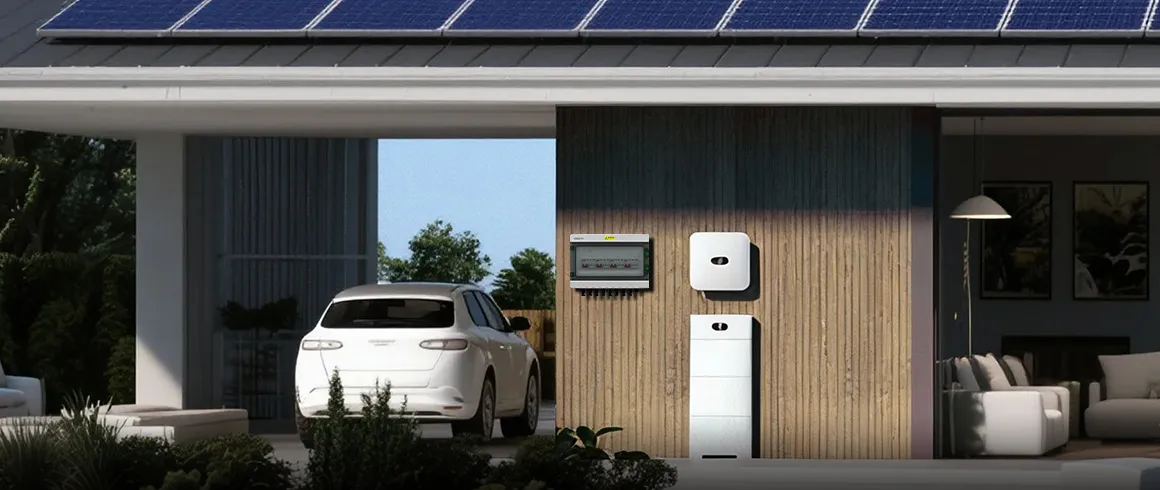

Suitable for DC/AC components

Equipped with 35mm standard mounting rails, it supports the installation of AC and DC components such as MCB, SPD, fuse, OUPA, ATS, QS, RCCB, and RCBO etc

UL94V-0 Flame Retardant

Self-extinguishing when removed from heat; fire-safe

Press to unlock

Easy to open; the transparent lid opens up to 210°

Double seal

Enhanced waterproof and dustproof performance

Free Customized Solutions OEM/ODM

We design exclusive PV solutions tailored to your needs at no cost

Why do you need a CNLONQ IP65 Junction Box for your DC/AC system?

The CNLONQ LQX-A Series IP65 waterproof junction box is CE/IEC certified and features weatherproofing, UV protection, and transparent circuit monitoring, providing ultimate safety for solar PV systems and outdoor electrical systems. It ensures that circuit protection components continue to operate safely even during storms.
