AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out
AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out
AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out
AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out
AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out
AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out
AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out
AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out
AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out
AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out
AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out
AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out

AC/DC Hybrid Distribution Box DC 500V 1 In 1 Out AC 230/400 V 2 In 2 Out

LQX-F1-1+AC2-2+BAT250
1.Integrated DC/AC Hybrid Architecture: Seamlessly combines in 1out DC photovoltaic input (DC 500V) and 2in 2out AC output/distribution (AC 230V/400V) into a single, unified enclosure for modern solar and grid-tied systems.

2.Superior IP66 Waterproof Protection: Featuring an IP66 rating and IK10 impact resistance, the high-grade PC enclosure provides exceptional waterproof, sun-resistant, and UV-resistant outdoor performance

3.Comprehensive Circuit Protection: Fully equipped with dedicated DC MCB, DC SPD, DC MCCB, along with AC MCB and AC SPD to safeguard your entire network against overloads, lightning surges, and voltage fluctuations

4.Versatile Technical Specifications: Designed with a robust setup supporting maximum output currents up to 125A, operating smoothly within a temperature range of -25℃ to +60℃ and humidity up to ≤95%

5.Globally Certified Quality & Bespoke Engineering: Fully compliant with IEC standards and certified with CE, ISO9001, RoHS, and IP68. As your direct manufacturing partner, CNLONQ delivers a one-stop customized solution—providing complimentary professional design planning, technical consultation, and high-fidelity 3D visualization services tailored to your exact specifications
Free DC/AC Design Solution
Product Description & Video
Parameters
Product Parameters
Technical data
Product Name AC/DC Hybrid Distribution Box
Model LQX-F1-1 AC2-2 BAT250
Type DC MCB, SPD, MCCB and AC MCB, SPD with IP66 Junction Box
String DC 1in1out, AC 2 in 2out
Rated Voltage Ue DC500V, AC230/400V(Single-phase)
Maximum Output Current Per String for DC(MCB) 16~125A optional
Maximum Putput Current Per String for AC(MCB) 16~125A optional
Quality Certificate CE, ISO, IP68, RoHS, IEC
Protection Level IP66
Impact Level IK10
Materiał PC(Box), PA(MCB, AC SPD), PBT(DC SPD),Resin（MCCB）
Operating Temperature -25℃ ~ 60℃
Humidity ≤95%
Connector MC4 or PG
Installation Wall Mounting
Altitude 2000m
Warranty 18 months
DC MCB 2P DC SPD 2P DC MCCB 2P
Rated Voltage Ue DC500V Rated Voltage Ue  DC500V Rated Voltage Ue DC500V
Ui DC1000V In (8/20)us  20kA Ui DC1000V
Rated Current In 16~125A Imax (8/20)us (kA) 40kA Rated Current In 160~250A
Icu 6kA Protection Level  2.2kV Icu 20kA
Standard IEC 60947-2 Standard IEC 61643-31 Standard IEC60947-2
AC MCB 2P AC SPD 2P
Rated Voltage Ue  AC230/400V Rated Voltage Ue  AC275V
Rated Current  16~125A In (8/20)us  20kA
Rated Frequency  50/60Hz Imax (8/20)us (kA) 40kA
Icu 6kA Protection Level  2.0kV
Standard IEC 60898-1 Standard IEC 60255-11

Features

IP66 PV Combiner box

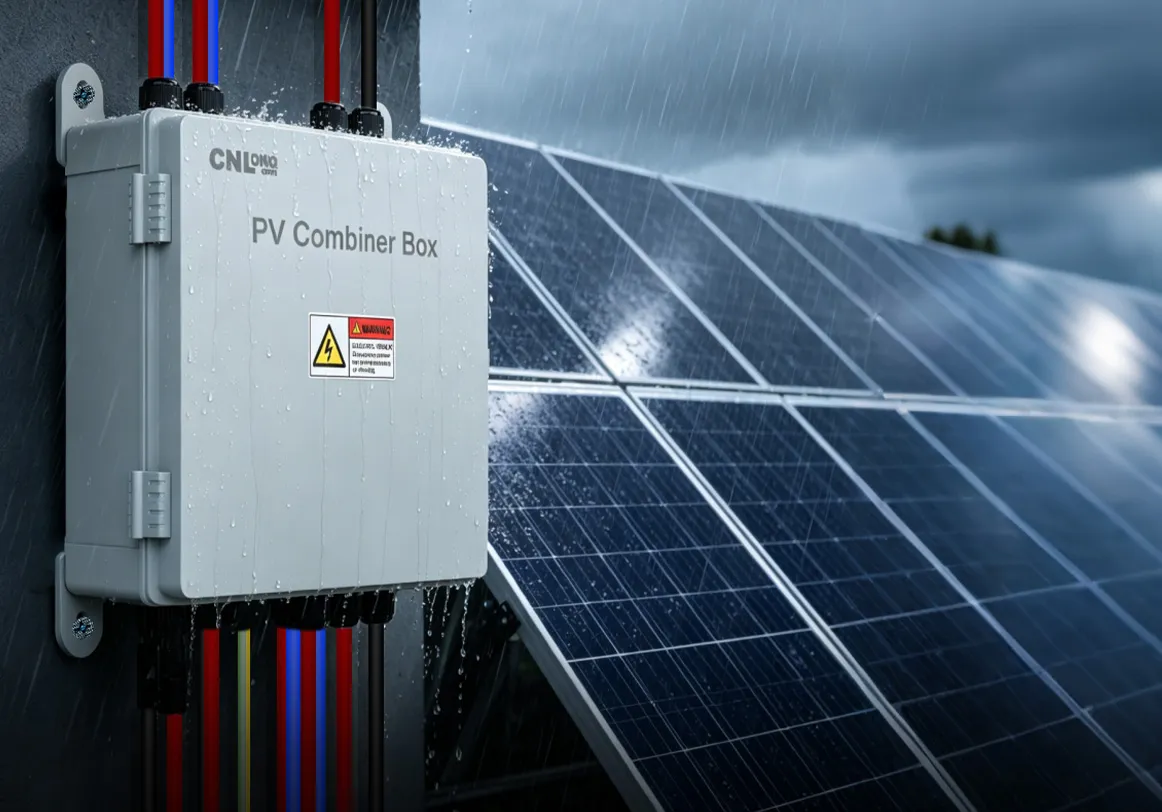

IP66 Waterproof
IP66 Waterproof
Passed IP66 protection testing. Housing made of PC material, UV-resistant, long service life

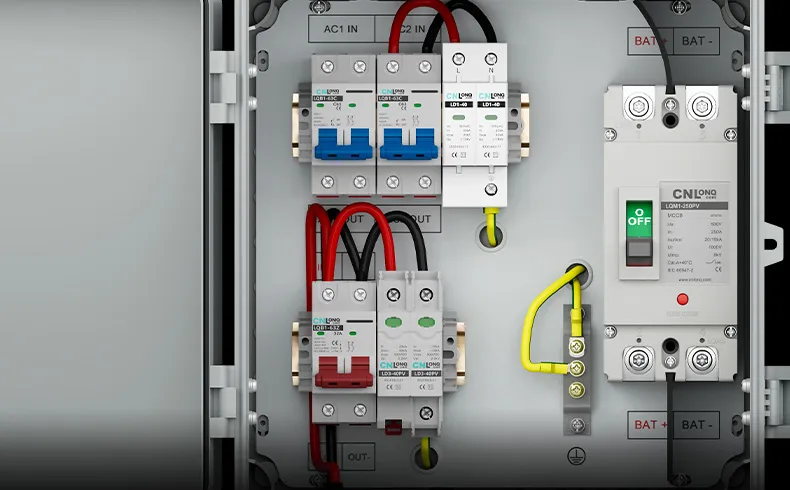

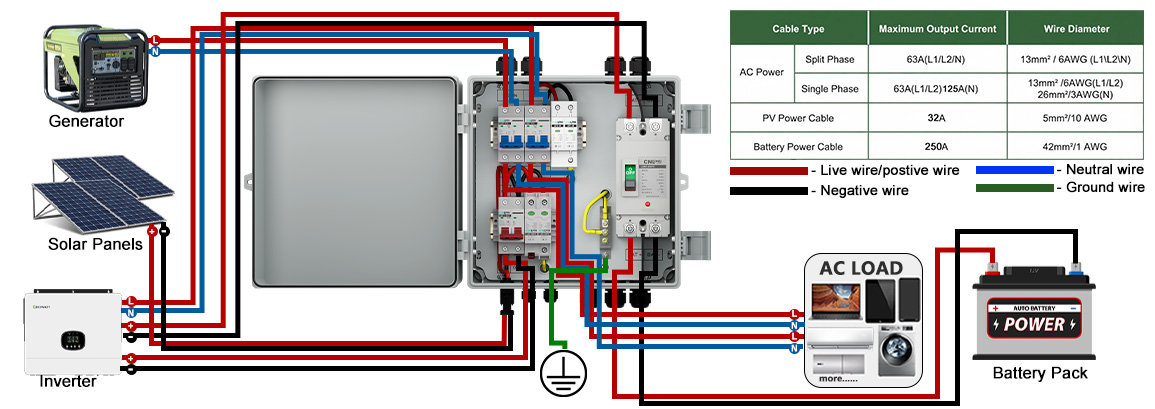

Internally pre-wired for plug-and-play operation
Internally pre-wired for plug-and-play operation
Free wiring upon request (MC4 connectors can be pre-wired) at the factory, saving labor costs

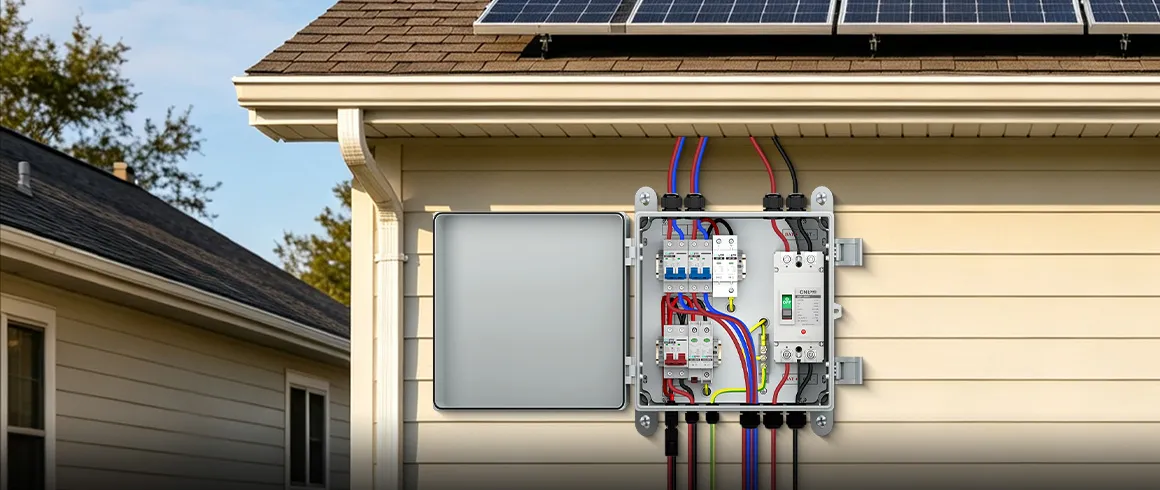

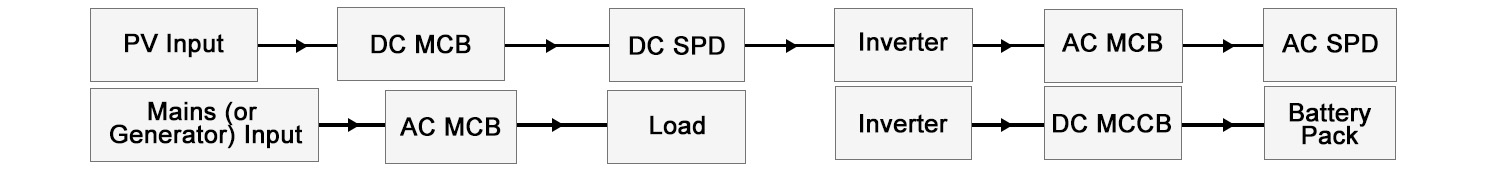

Protecting Circuit Safety
Protecting Circuit Safety
Circuit isolation, short-circuit protection, overload protection, and surge protection. Extend the lifespan of photovoltaic systems and enhance safety
UL94V-0 Flame Retardant
UL94V-0 Flame Retardant
Self-extinguishing when removed from flame, effectively preventing fires and safeguarding property.

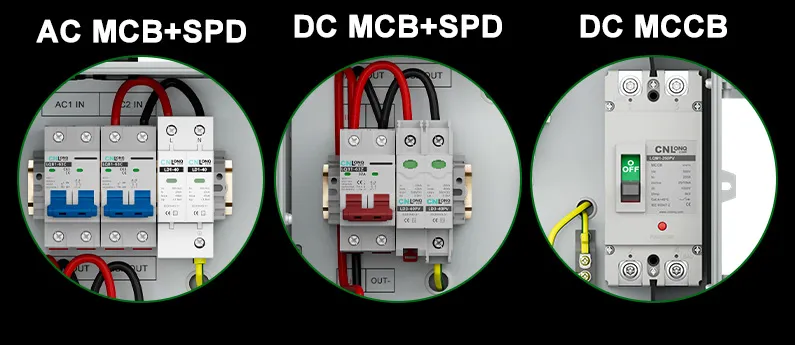

Tidy & Safe Installation
Tidy & Safe Installation
Avoid messy on‑site cabling, simplify layout, realize convenient circuit switching`
DIY Connector
DIY Connector
Optional MC4 or PG connectors for customization
Free Customized Solutions OEM/ODM
Free Customized Solutions OEM/ODM
We design exclusive PV solutions tailored to your needs at no cost.


Why Does Your Hybrid Power System Need the CNLONQ AC/DC Hybrid Distribution Box?

The CNLONQ AC/DC Hybrid Power Distribution Box integrates DC solar input and AC power distribution into a single waterproof enclosure, providing overload, short-circuit, and lightning protection for the circuit while reducing energy loss

Contact us to receive:

●Free design of DC/AC system, packaging and labeling,OEM/ODM  ●Reporting and tracking of the whole process before, during and after sales  ●Free training for staff and installers ●Free design of promotional materials and videos  ●Copyright, certificate and patent sharing  ●Trade show resource support  ●For more customized services please contact

Free Customized Solution Process

CNLONQ is China's leading manufacturer of PV combiner box,  with 35% of combiner box chinese trader sourcing custom orders from us

Certifications
