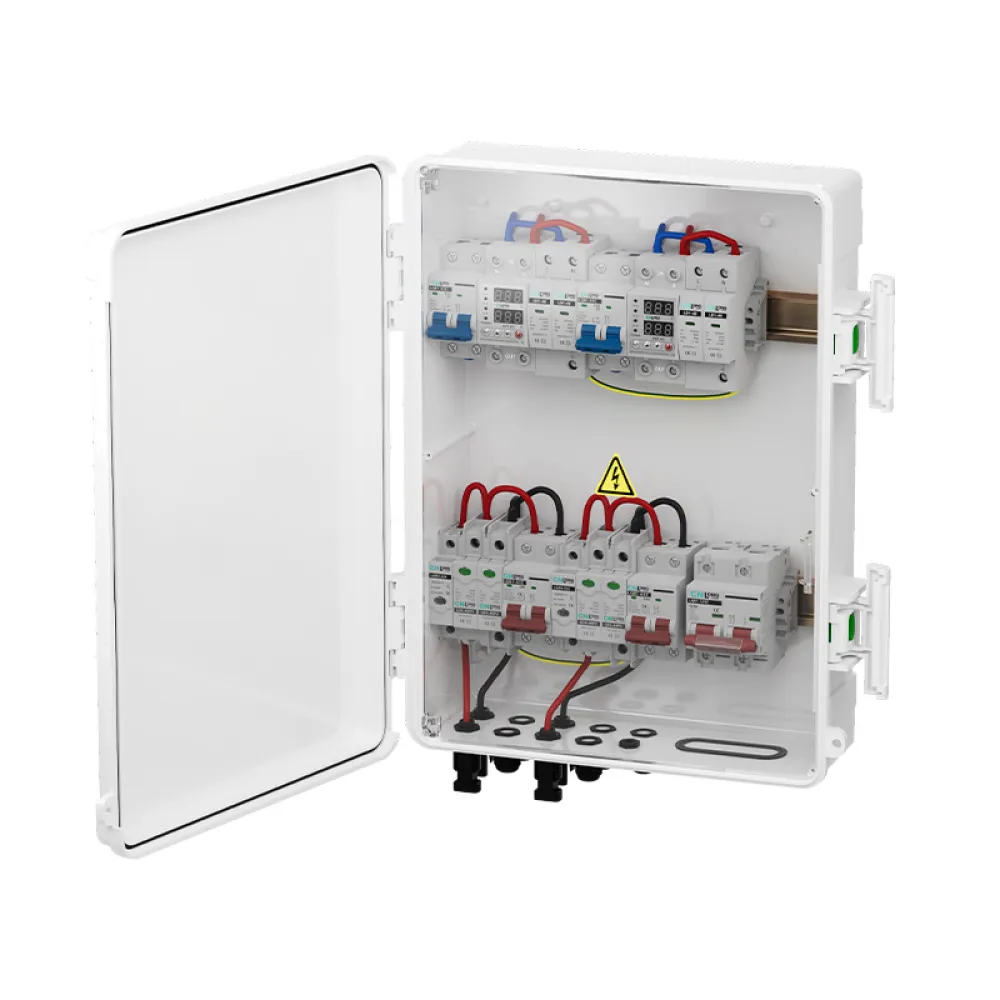

LQX-N2-2DC500VB1+2-2AC
1.Integrated DC/AC Hybrid Architecture: Seamlessly combines in 2out DC photovoltaic input (DC 500V) and 2in 2out AC output/distribution (AC 230V/400V) into a single, unified enclosure for modern solar and grid-tied systems.

2.Superior IP68 Waterproof Protection: Featuring an IP68 rating and IK10 impact resistance, the high-grade PC enclosure provides exceptional waterproof, sun-resistant, and UV-resistant outdoor performance

3.Comprehensive Circuit Protection: Fully equipped with dedicated DC MCB, DC SPD, DC Fuse, along with AC MCB and AC OUPA (over/under voltage and overcurrent protector) to safeguard your entire network against overloads, lightning surges, and voltage fluctuations

4.Versatile Technical Specifications: Designed with a robust setup supporting maximum output currents up to 125A, operating smoothly within a temperature range of -25℃ to +60℃ and humidity up to ≤95%

5.Globally Certified Quality & Bespoke Engineering: Fully compliant with IEC standards and certified with CE, ISO9001, RoHS, and IP68. As your direct manufacturing partner, CNLONQ delivers a one-stop customized solution—providing complimentary professional design planning, technical consultation, and high-fidelity 3D visualization services tailored to your exact specifications
Free DC/AC Design Solution
Product Description & Video
Parameters
Product Parameters
Technical data
Product Name AC/DC Hybrid Distribution Box
Model LQX-N2/1DC500VB1 2/2AC400V
Type DC MCB, SPD, Fuse and AC MCB, SPD,OUPA with IP68 Junction Box
String DC 2in2out, AC 2 in 2out
Rated Voltage Ue DC500V, AC230/400V(Single-phase)
Maximum Input Current PerString for DC(Fuse) 1~32A optional
Maximum Output Current Per String for DC(MCB) 16~125A optional
Maximum Putput Current Per String for AC(MCB) 16~125A optional
Quality Certificate CE, ISO, IP68, RoHS, IEC
Protection Level IP68
Impact Level IK10
Materiał PC(Box), PA(MCB, OUPA,AC SPD), PBT(DC SPD, Fuse)
Operating Temperature -25℃ ~ 60℃
Humidity ≤95%
Connector MC4 or PG
Installation Wall Mounting
Altitude 2000m
Warranty 18 months
DC MCB 2P DC SPD 2P DC Fuse 2P
Rated Voltage Ue DC500V Rated Voltage Ue  DC500V Rated Voltage Ue DC1000
Ui DC1000V In (8/20)us  20kA Rated Current In(A) 15/20/25/30
Rated Current In 16~125A Imax (8/20)us (kA) 40kA Fuse Size (mm) 10*38
Icu 6kA Protection Level  2.2kV Icu 33kA
Standard IEC 60947-2 standard IEC 61643-31 Standard IEC60269
AC MCB 2P AC SPD 2P AC OUPA 2P
Rated Voltage Ue  AC230/400V Rated Voltage Ue  AC275V Rated Voltage Ue  AC130~300V
Rated Current  16~125A In (8/20)us  20kA In (8/20)us  AC80~210V
Rated Frequency  50/60Hz Imax (8/20)us (kA) 40kA Imax (8/20)us (kA) 1~40/63/80A
Icu 6kA Protection Level  2.0kV Protection Level  50/60
standard IEC 60898-1 standard IEC 61643-11 standard IEC 60255-127

Features

IP68 PV Combiner box

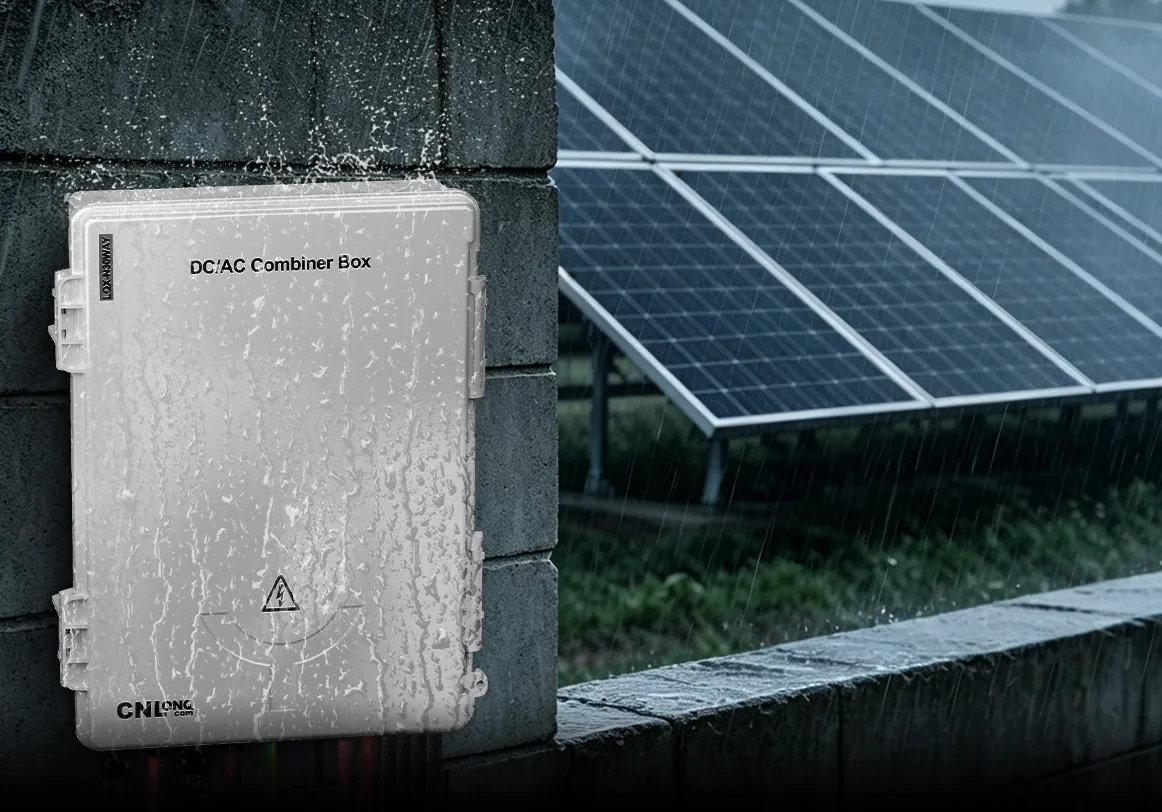

IP68 Waterproof
IP68 Waterproof
Passed IP68 protection testing. Housing made of PC material, UV-resistant, long service life

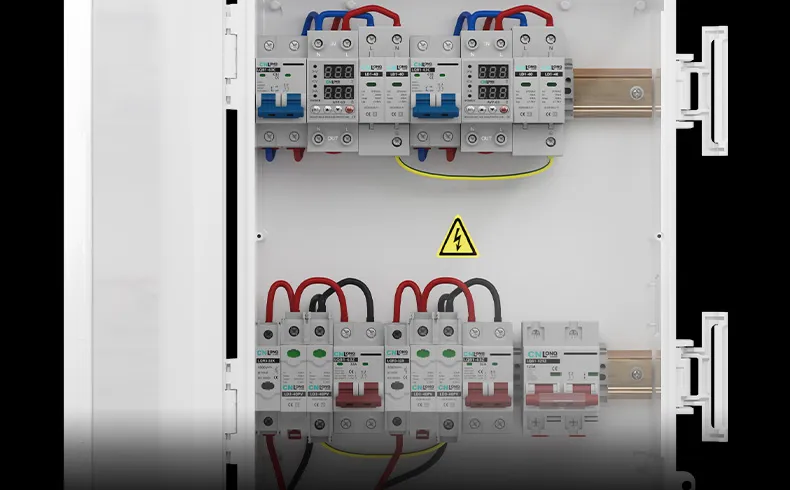

Internally pre-wired for plug-and-play operation
Internally pre-wired for plug-and-play operation
Free wiring upon request (MC4 connectors can be pre-wired) at the factory, saving labor costs
Protecting Circuit Safety
Protecting Circuit Safety
Circuit isolation, short-circuit protection, overload protection, and surge protection. Extend the lifespan of photovoltaic systems and enhance safety
UL94V-0 Flame Retardant
UL94V-0 Flame Retardant
Self-extinguishing when removed from flame, effectively preventing fires and safeguarding property.
Hook or Drilled-Hole Installation
Hook or Drilled-Hole Installation
Metal hooks are attached to the back for installation using the hooks. Alternatively, drill holes in the unit for direct wall mounting
DIY Connector
DIY Connector
Optional MC4 or PG connectors for customization
Free Customized Solutions OEM/ODM
Free Customized Solutions OEM/ODM
We design exclusive PV solutions tailored to your needs at no cost.


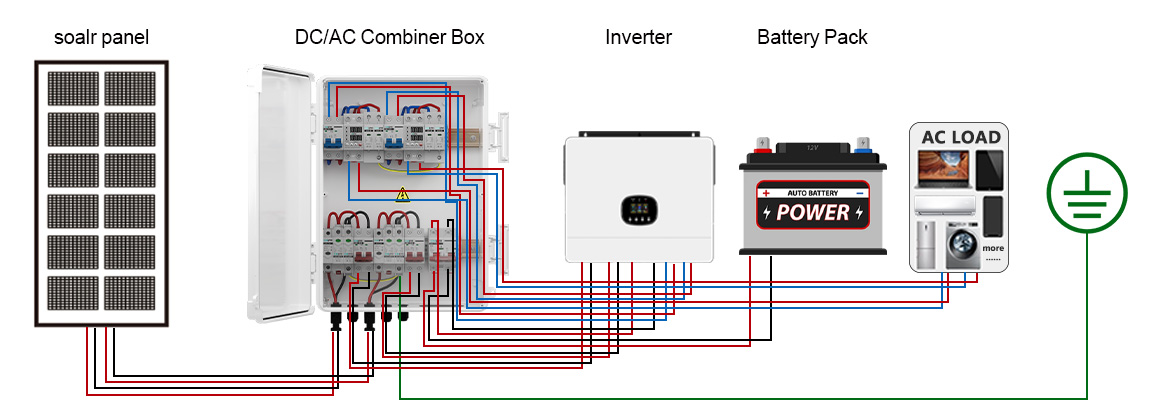

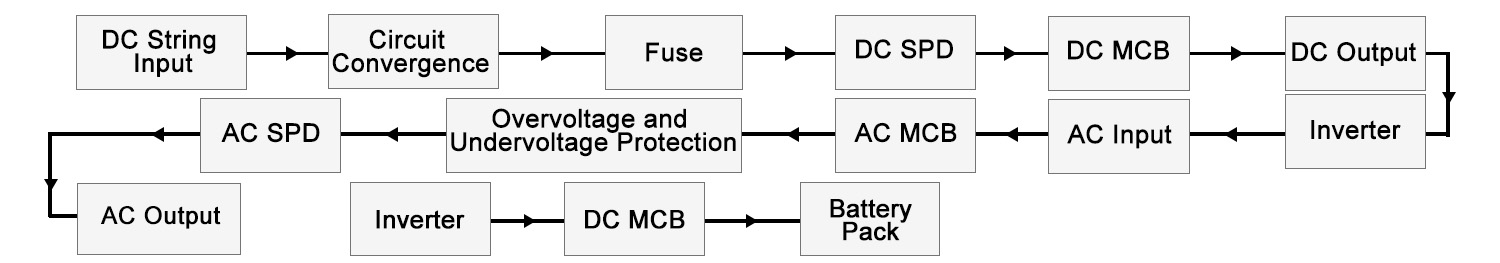

Why Does Your Hybrid Power System Need the CNLONQ AC/DC Hybrid Distribution Box?

The CNLONQ AC/DC Hybrid Power Distribution Box integrates DC solar input and AC power distribution into a single waterproof enclosure, providing overload, short-circuit, and lightning protection for the circuit while reducing energy loss

Contact us to receive:

●Free design of DC/AC system, packaging and labeling,OEM/ODM  ●Reporting and tracking of the whole process before, during and after sales  ●Free training for staff and installers ●Free design of promotional materials and videos  ●Copyright, certificate and patent sharing  ●Trade show resource support  ●For more customized services please contact
