Solar Connector DC1000/1500V

PVCNT

【CNLONQ Dual-Voltage Versatility】 Engineered by CNLONQ for high-power solar infrastructures, the PVCNT series supports both DC 1000V and DC 1500V systems. Available in rated currents of 30A, 45A, 50A, and 60A to perfectly match various PV solar panel and combiner box setups.

【IP67 Waterproof & Rugged Durability】 Featuring an IP67 ultra-strong waterproofing rating, CNLONQ solar connectors deliver reliable outdoor performance. Built with anti-aging, UV-resistant PC/PPO insulation material to withstand extreme environments from -40℃~90℃.

【Premium Conductivity & Low Resistance】 CNLONQ utilizes premium tin-plated brass and copper alloy for the contact pins. With a contact resistance of 0.5mΩ, it guarantees maximum current transmission efficiency and prevents hot spots in your photovoltaic system.

【Top-Tier Fire Safety (UL-94-V0)】 Safety is CNLONQ’s priority. The connector housing complies with the highest UL-94-V0 flame retardancy class and severity 5 salt mist spray testing (IEC60068-2-52), making it the ultimate secure link for industrial and residential solar arrays.

【Secure Snap-In & Plug and Play】 Designed with a precision snap-in locking system, CNLONQ solar connectors provide a tight, vibration-proof connection. Fully compatible with 2.5mm²,4mm², 6mm², and 10mm² cable systems (14AWG to 7AWG).

Free DC/AC Design Solution

Product Description & Video

Parameters

Product Parameters

Technical data
Product Name	Solar Connector
Model	PVCNT	PVCNT-BD
Rated Voltage Ue	DC1000V, 1500V
Rated Current In	30A(2.5mm²;4mm²; 6mm²; 14AWG; 12AWG; 10AWG) 45A/50A(4mm²; 6mm²; 12AWG; 10AWG)
Test Voltage	6kV(1min.)
Ambient Tempreture Range	-40°C.. 90°C(IEC)-40°C .. 75°C(UL)
Upper limiting Tempreture	105°C(IEC)
Degree Of Protection,Mated	IP67
Unmated	IP2X
Comtact Resistance Of Plug Connectors	0.5mΩ
Safety Class	II
Contact Material	Brass, copper alloy, tin-plated
Insulation Material	PC/PPO
Locking System	Snap-in
Flame Class	UL-94-V0
Salt mist spray test,Degree of Severity 5	IEC60068-2-52

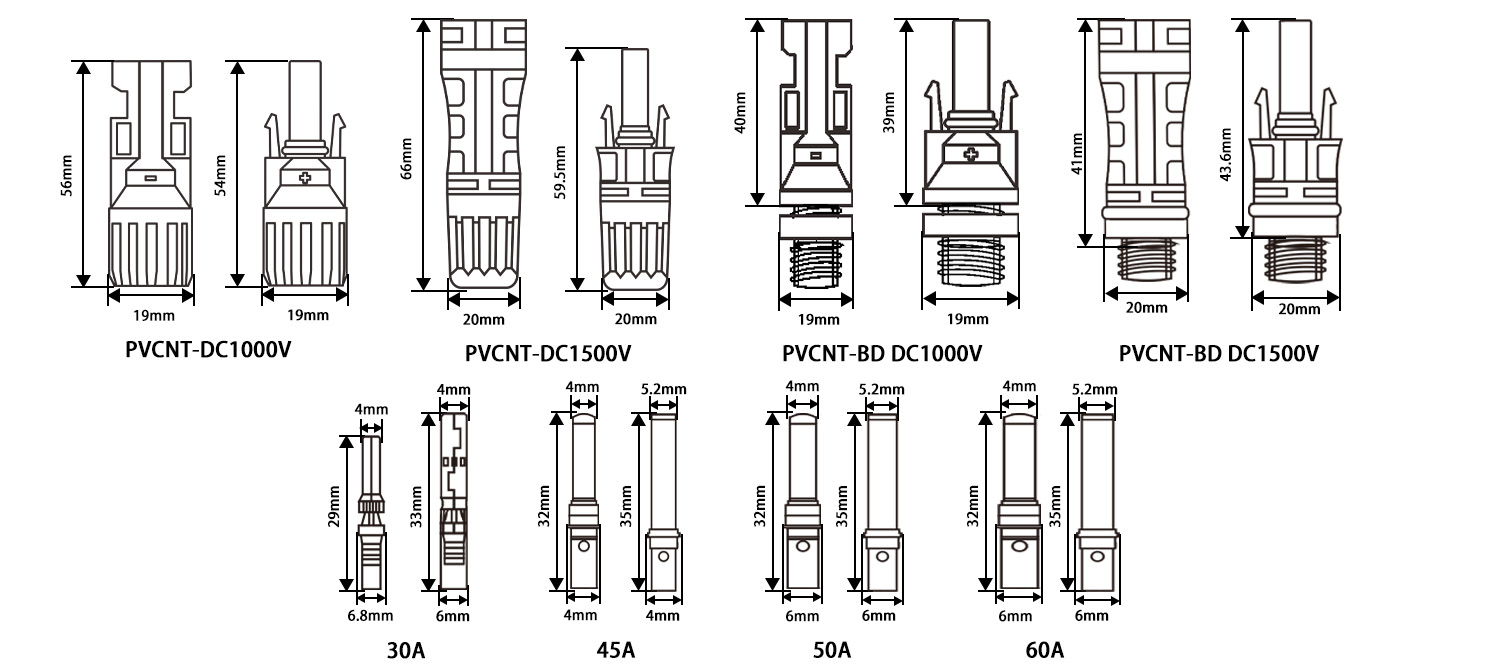

MC4 Size

Features

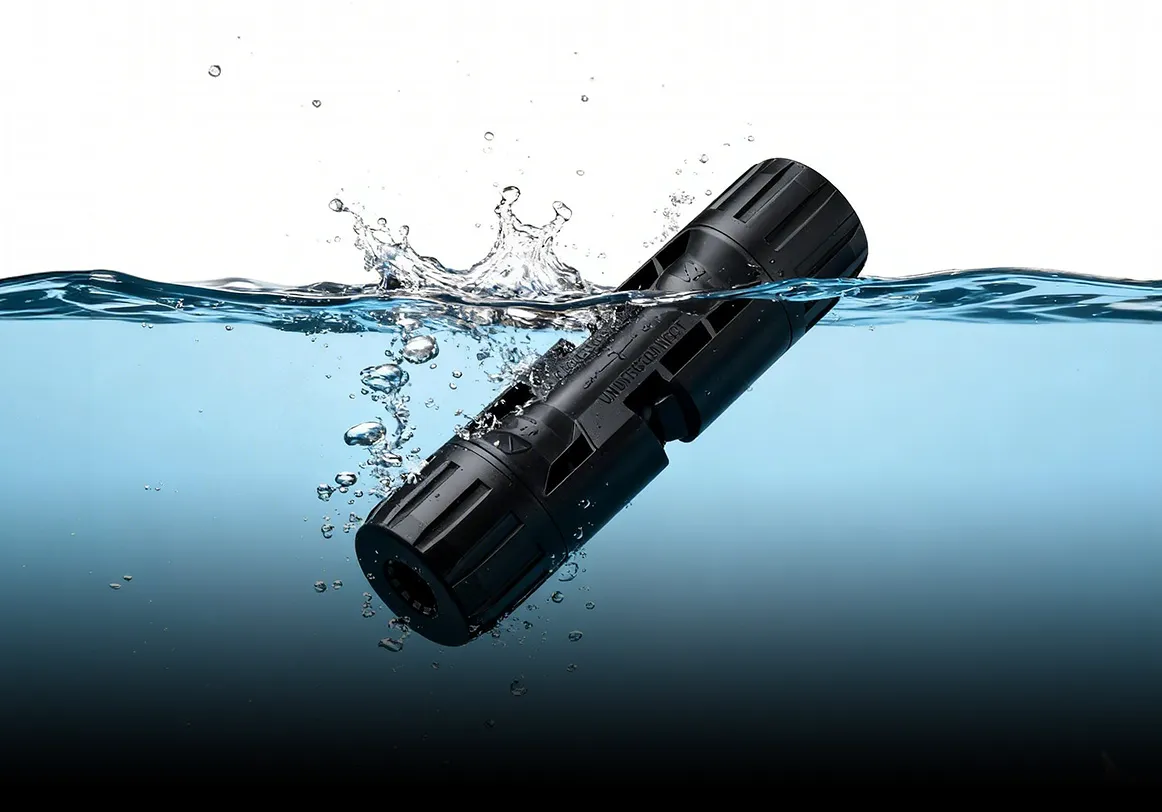

IP67 Waterproof

Suitable for humid environments and coastal areas with high salt fog

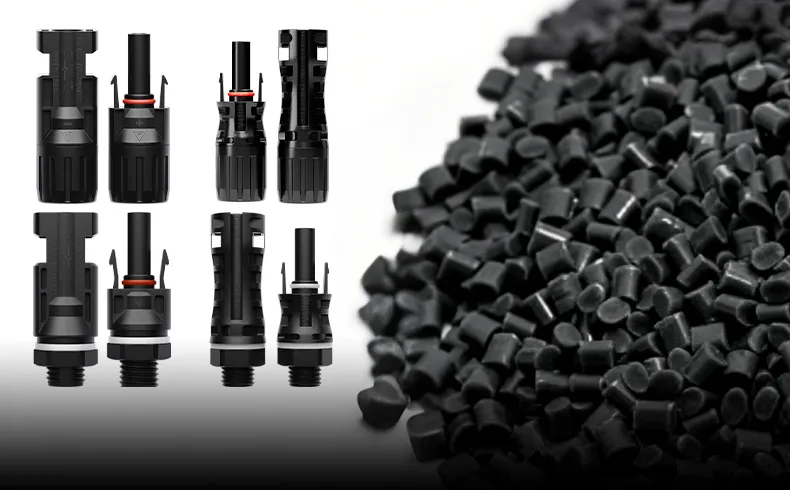

PC Insulated Housing

UV-Resistant and Corrosion-Resistant

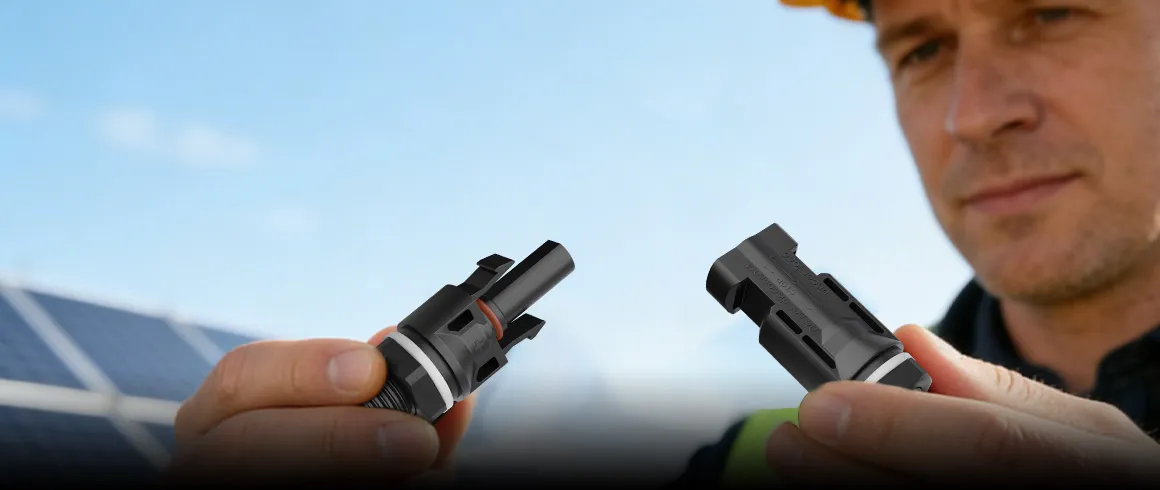

Tin-plated Copper Core

Low resistance, oxidation-resistant

Free Customized Solutions OEM/ODM

We design exclusive PV solutions tailored to your needs at no cost.

Plug-and-Play

Compatible with standard solar connectors

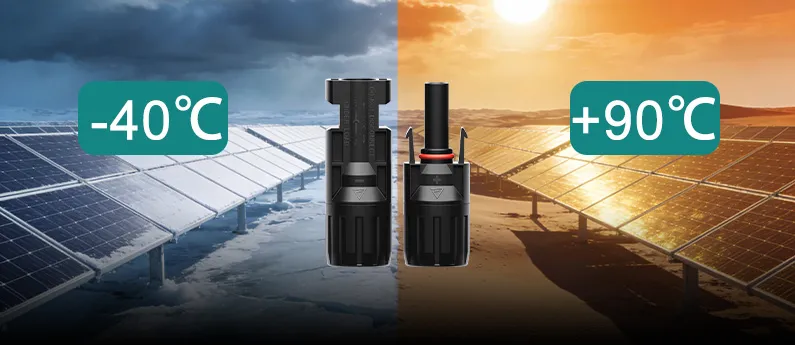

Stable operation

High-quality materials ensure stable operation within a temperature range of -40°C to +90°C.

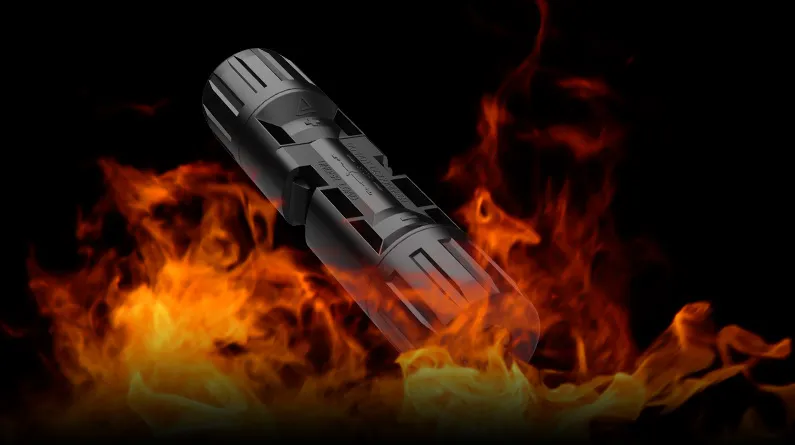

UL94V-0 Flame Retardant

Self-extinguishing when removed from flame,effectively preventing fires and safeguarding

Why does your PV system need CNLONQ PVCNT solar connectors?

CNLONQ TUV-certified DC 1000V/1500V solar connectors feature heavy-duty UL-94-V0 flame retardancy and IP67 waterproof protection, providing a low-resistance (≤0.5mΩ), high-current link that secures the vital connection between your solar arrays and combiner boxes
