Solar Y Splitter Connector DC1000V

PVCNT-Y

【CNLONQ Efficient Parallel Connection】 Designed by CNLONQ for high-efficiency solar arrays, the PVCNT-Y series offers premium 2-to-1 (Y2), 3-to-1 (Y3), and 4-to-1 (Y4) parallel branch configurations.It simplifies the wiring layout of the solar panel array

【High Current Carrying Capacity (30A/45A/50A)】 Engineered to handle heavy electrical loads, this versatile series supports rated currents of 30A, 45A, and 50A. It is fully compatible with 2.5mm², 4mm², 6mm² (14AWG/12AWG/10AWG) photovoltaic wires.

【Reusable & Tightly Connected】 Featuring a heavy-duty snap-in locking mechanism, CNLONQ Y splitter adapters provide a rock-solid engagement that won't come loose. They are fully reusable and removable, offering maximum flexibility for system expansion or maintenance.

【IP67 Waterproof & Rugged Durability】 Engineered with an IP67 protection rating (IP2X unmated) and anti-aging PC/PPO insulation material, CNLONQ solar branch connectors resist extreme weather (-40℃~90℃) and severity 5 salt mist corrosion.

【Low-Resistance & Top Safety Class】 Equipped with premium tin-plated brass and copper alloy contacts, CNLONQ guarantees an ultra-low contact resistance of ≤ 0.5mΩ for maximum transmission efficiency. The housing complies with the highest UL-94-V0 flame retardancy class.

Free DC/AC Design Solution

Product Description & Video

Parameters

Product Parameters

Technical data
Product Name	PV Y Splitter Connector
Cable Color	red / black red / black
Model	PVCNT-Y
Rated Voltage Ue	DC1000V
Rated Current In	30.45.50A
Test Voltage	6kV(1min.)
Ambient Tempreture Range	-40°C.. 90°C(IEC)-40°C .. 75°C(UL)
Upper limiting Tempreture	105°C(IEC)
Degree Of Protection,Mated	IP67
Unmated	IP2X
Comtact Resistance Of Plug Connectors	0.5mΩ
Safety Class	II
Contact Material	Brass, copper alloy, tin-plated
Insulation Material	PC/PPO
Locking System	Snap-in
Flame Class	UL-94-V0
Salt mist spray test,Degree of Severity 5	IEC60068-2-

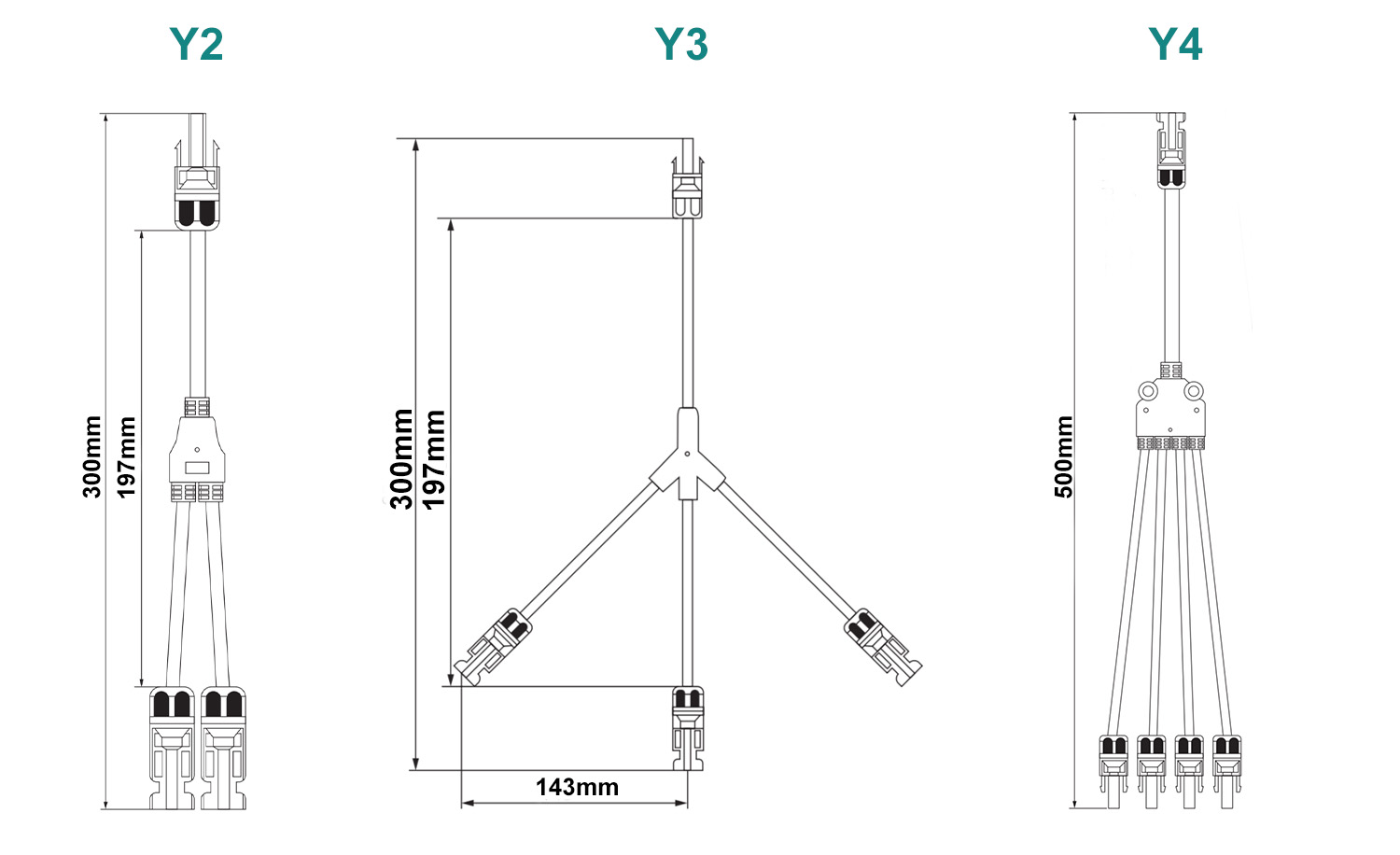

PV Splitter Connector Size

Features

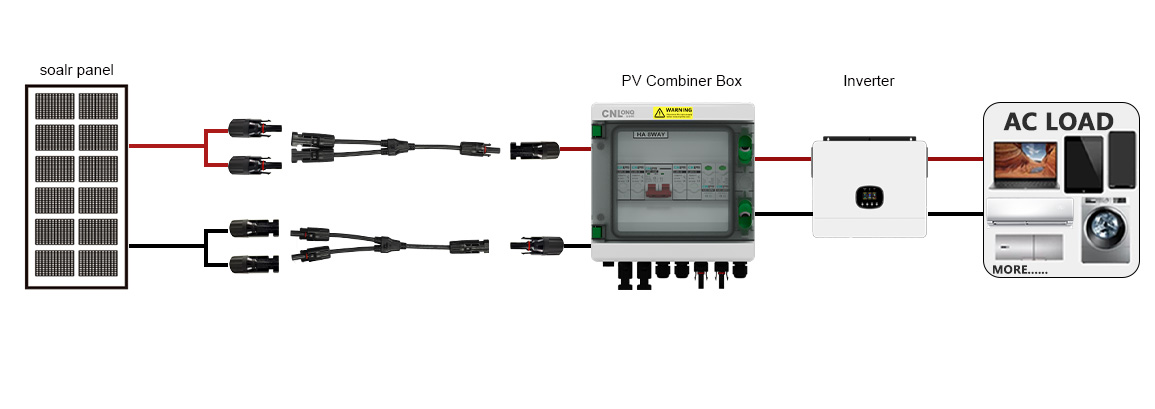

Y series splitter connector wire

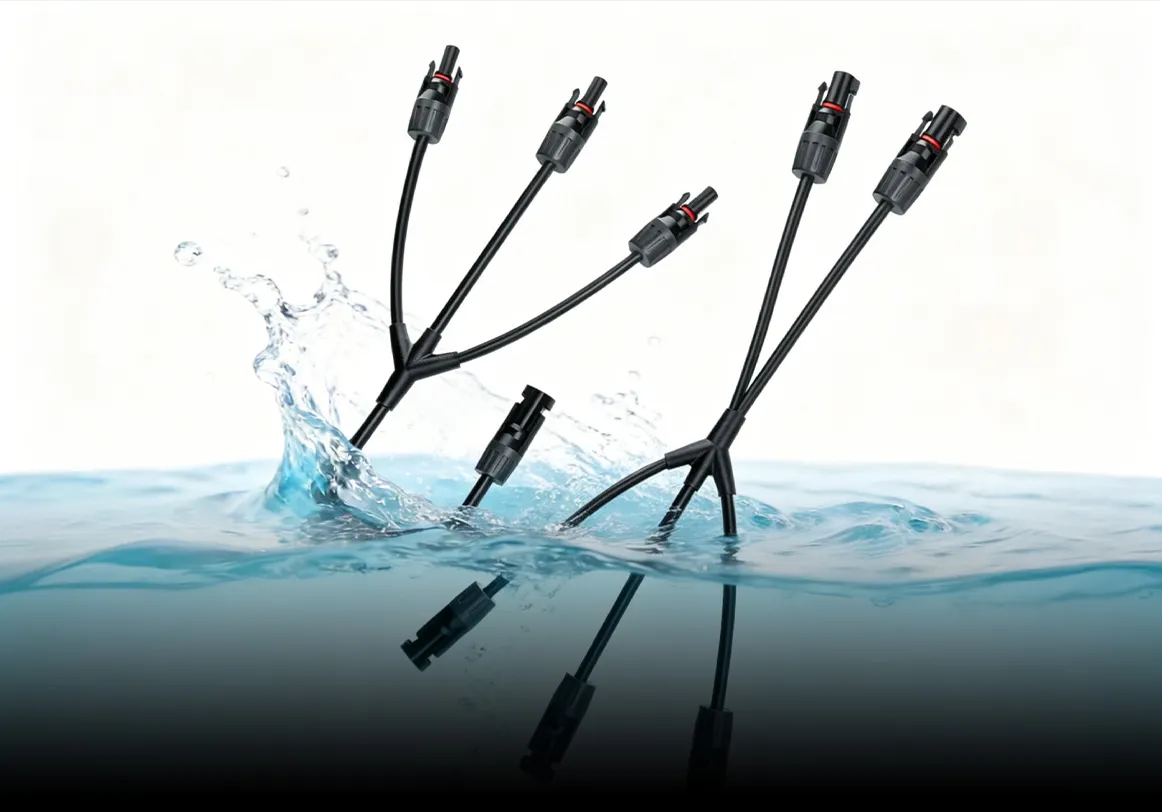

IP67 Waterproof

Suitable for humid environments and coastal areas with high salt fog

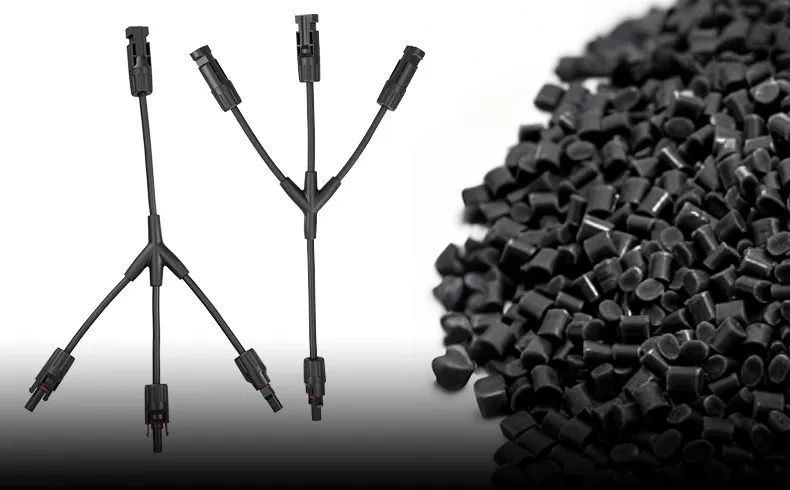

PC Insulated Housing

UV-Resistant and Corrosion-Resistant

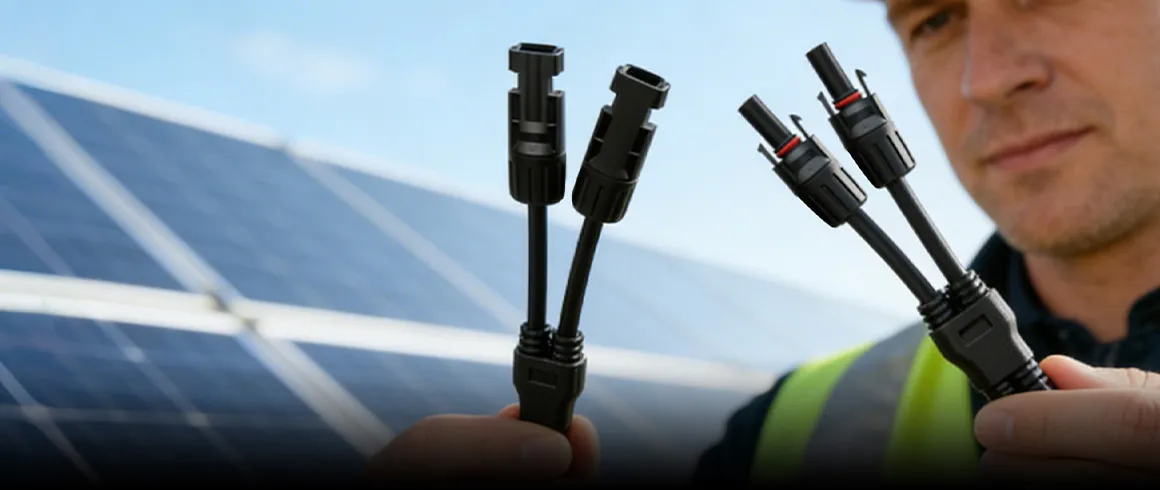

Low Resistance

Tin-plated copper conductors, low heat generation, oxidation-resistant

Free Customized Solutions OEM/ODM

We design exclusive PV solutions tailored to your needs at no cost.

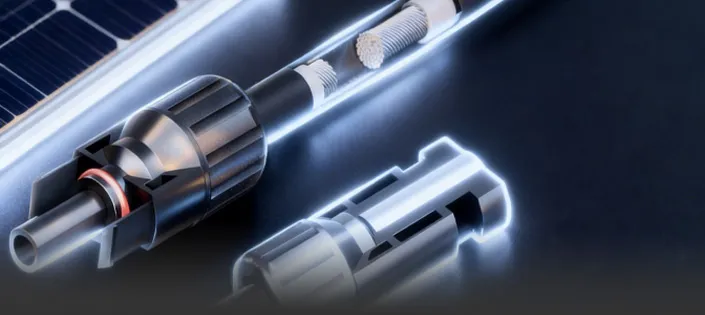

Plug-and-play

Compatible with MC4 connectors

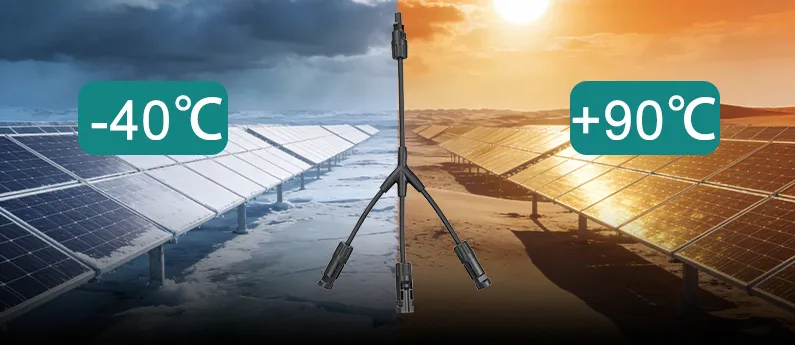

Stable operation

High-quality materials ensure stable operation within a temperature range of -40°C to +90°C.

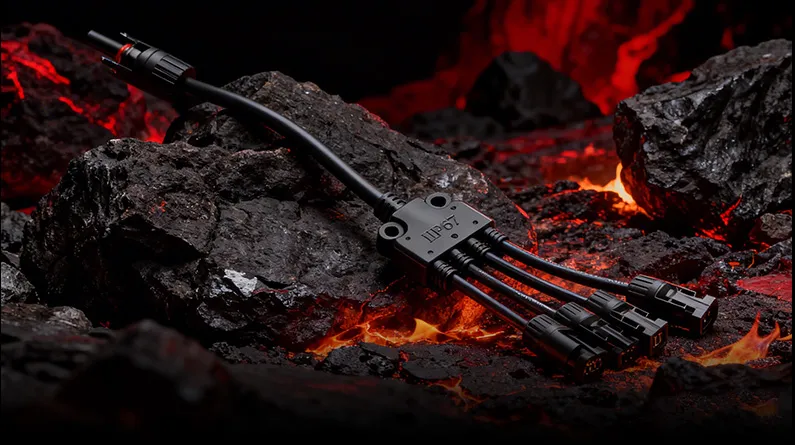

UL94V-0 Flame Retardant

Self-extinguishing when removed from flame,effectively preventing fires and safeguarding

Why does your PV parallel array need CNLONQ PVCNT-Y series splitter connectors?

CNLONQ DC 1000V Y-series branch connectors provide a secure, low-resistance (≤0.5mΩ) parallel wiring link supporting up to 30A/45A/50A, combining an IP67 waterproof, reusable design with premium UL-94-V0 flame retardancy to seamlessly combine multiple solar strings before entering your combiner boxes.
