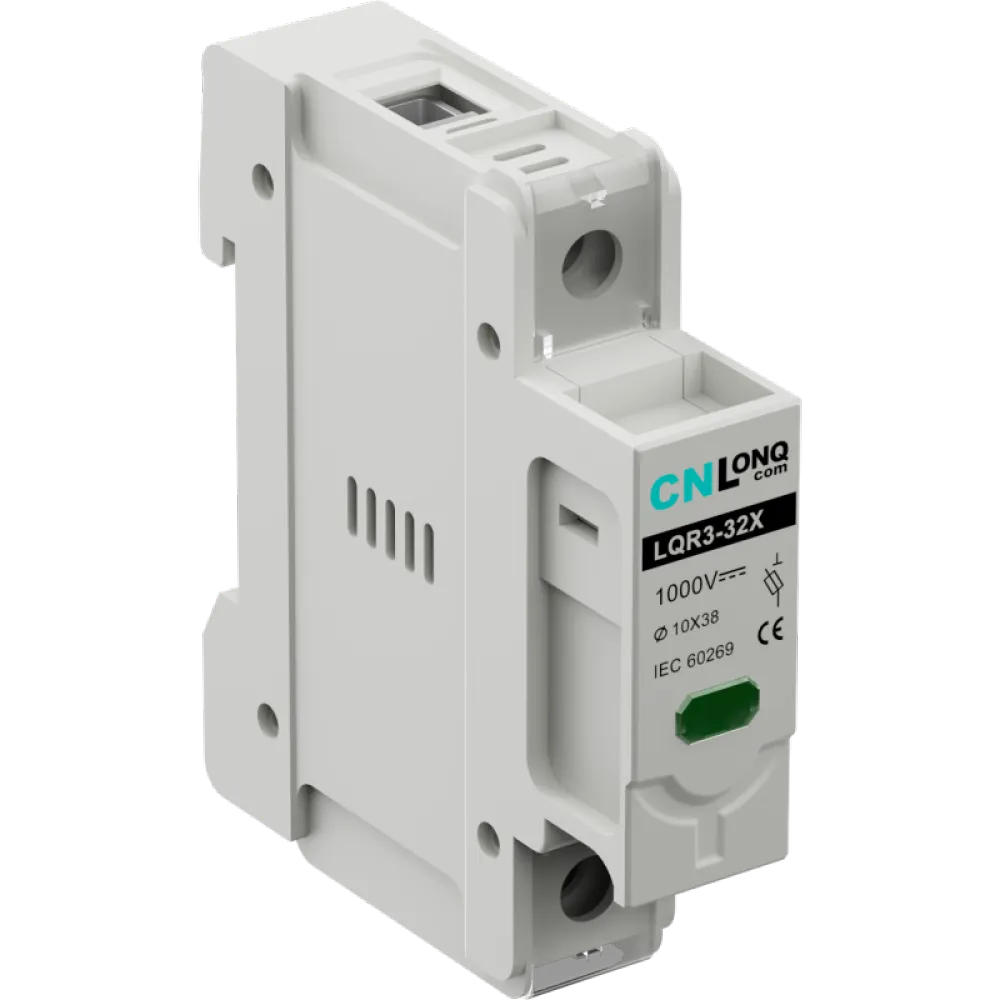

DC Fuse Holder DC1000V 32A DIN Rail with Indicator Light for 10x38mm Fuse

"CNLonQcom 1000VDC 32A Fuse Holder Base – Specifically designed for high-voltage DC safety protection in solar PV power plants and EV charging systems. Features a PA flame-retardant housing and copper alloy bolt terminals, with a breaking capacity of 33kA, and fuse has also obtained UL, TUV, CE, IEC, and RoHS certifications and complies with IEC60269-6 and UL248-19 standards. Compatible with 10x38 fuse cores, available in rated currents of 1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 16A, 20A, 25A, 30A, and 32A.

The fuse is equipped with a fault indicator light, which allows you to determine whether the fuse element needs to be replaced based on the status of the indicator light.

CNLonQcom 32A 1000V DC fuse base (industrial/PV specific) – IP20 protection rating and vibration-resistant structure, safeguarding critical power facilities. Compatible with gPV/gFV/Class T fuses, suitable for 1000V PV combiner boxes, energy storage cabinets, and DC fast charging stations. Supports 35mm DIN rail installation, with an 18-month warranty.

CNLonQcom is a Chinese factory specializing in manufacturing and selling PV Combiner Boxes, Waterproof Junction Boxes, Circuit Breakers, Disconnect Switches, Surge Protectors, Fuses, Over and Under Voltage Protectors, PV Connectors, and other AC/DC equipments, which can bring you better quality and price."

Free DC/AC Design Solution

Product Description & Video

Parameters

Product Parameters

Technical Data
Model	LQR3-32
work Indicator Light	Yes
Suitable Fuse Size	10x38mm
Rated Voltage Ue	DC1000V
Rated current In	1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A
Breaking Capacity Icu	20kA
Maximum Watts Loss	4.5W
Wiring Dimensions	1~10mm²
Pole	1P
Standard	IEC60269-6,UL248-19,GB 13539.6,IEC60947-3
Quality Certificate	UL, TUV, CE,ISO9001,ROHS,IEC
Material	PA
Levels of Protection	IP20
Operating Temperature	-30℃ to 70℃
Humidity	≤95%
Altitude	2000m
Installation Class/Type	Class III/35mm DIN Rail
Product Size LWH	801868mm

Features

Model

LQR3-32

work Indicator Light

Yes

Suitable Fuse Size

10x38mm

Rated Voltage Ue

DC1000V

Rated current In

1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A

Breaking Capacity Icu

20kA

Maximum Watts Loss

4.5W

Why do you need a CNLonQcom PV Combiner Box for your PV system?

The fuse is equipped with a fault indicator light, which allows you to determine whether the fuse element needs to be replaced based on the status of the indicator light.

CNLonQcom 32A 1000V DC fuse base (industrial/PV specific) – IP20 protection rating and vibration-resistant structure, safeguarding critical power facilities. Compatible with gPV/gFV/Class T fuses, suitable for 1000V PV combiner boxes, energy storage cabinets, and DC fast charging stations. Supports 35mm DIN rail installation, with an 18-month warranty.

CNLonQcom is a Chinese factory specializing in manufacturing and selling PV Combiner Boxes, Waterproof Junction Boxes, Circuit Breakers, Disconnect Switches, Surge Protectors, Fuses, Over and Under Voltage Protectors, PV Connectors, and other AC/DC equipments, which can bring you better quality and price."
