Solar Inline Fuse Connector DC1000/1500V

PVCNT-Fuse

【CNLONQ Advanced Overload Protection】 Engineered by CNLONQ to secure your solar arrays, the PVCNT-Fuse connector provides essential overload and short-circuit protection. It effectively isolates faults on the DC side to prevent system-wide damage.

【Wide 1A to 32A Range & Reusable】 This versatile PV fuse holder supports a comprehensive range of rated currents from 1A to 32A (using standard 10x38mm fuse links). The reusable design allows for easy fuse replacement, minimizing maintenance downtime.

【IP67 Waterproof & Rugged Durability】 Designed for reliable outdoor deployment, CNLONQ inline fuse connectors offer an IP67 waterproofing rating and anti-aging PC/PPO insulation. They operate flawlessly in extreme conditions from -40℃~90℃.

【Low Resistance & Premium Contacts】 Utilizing premium tin-plated brass and copper alloy contacts, CNLONQ guarantees ultra-low contact resistance (≤5mΩ). This minimizes power loss, prevents hot spots, and ensures stable current transmission at DC 1000V or 1500V.

【Secure Snap-In Plug & Play】 Featuring a precision snap-in locking system, this MC4-compatible inline fuse ensures a tight, vibration-proof connection. It integrates seamlessly into existing solar panel arrays and CNLONQ solar combiner boxes.

Free DC/AC Design Solution

Product Description & Video

Parameters

Product Parameters

Technical data
Product Name	PV Fuse Connector Inline
Model	PVCNT-Fuse
Rated Voltage Ue	DC1000V, 1500V
Rated Current In	1,2,3,4,5,6,8,10,12,15,16,20,25,30,32,35A
Test Voltage	6kV(1min.)
Ambient Tempreture Range	-40°C.. 90°C(IEC)-40°C .. 75°C(UL)
Upper limiting Tempreture	105°C(IEC)
Degree Of Protection,Mated	IP67
Unmated	IP2X
Comtact Resistance Of Plug Connectors	0.5mΩ
Safety Class	II
Contact Material	Brass, copper alloy, tin-plated
Insulation Material	PC/PPO
Locking System	Snap-in
Flame Class	UL-94-V0
Salt mist spray test,Degree of Severity 5	IEC60068-2-52

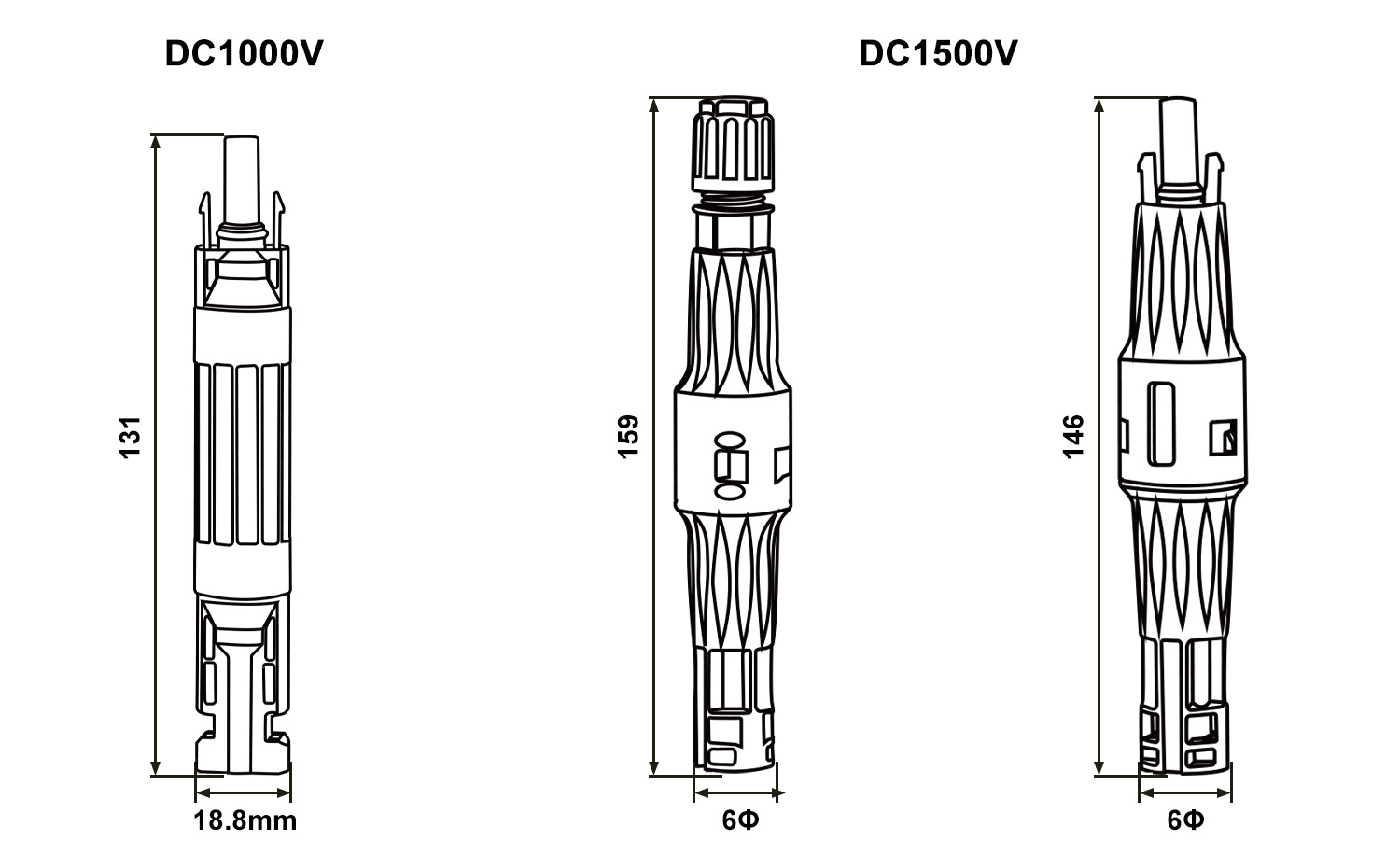

Solar Fuse connector

Features

solar fuse

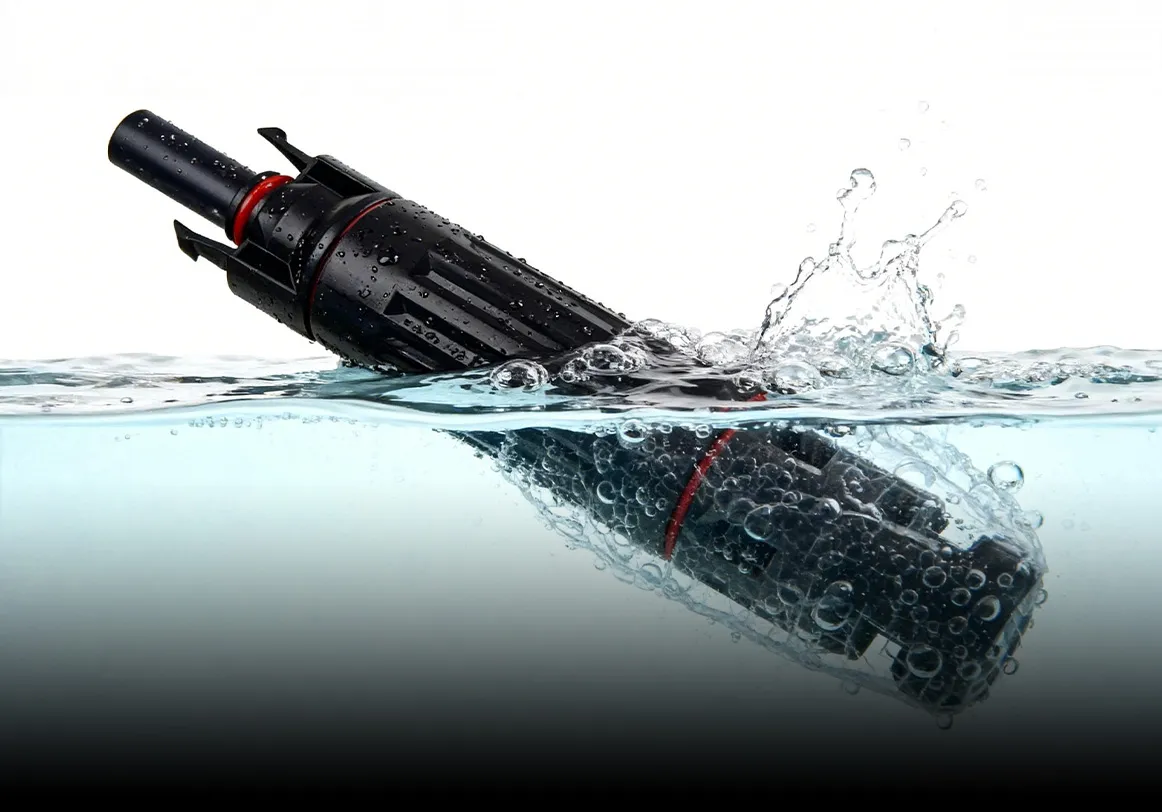

IP67 Waterproof

Suitable for humid environments and coastal areas with high salt fog

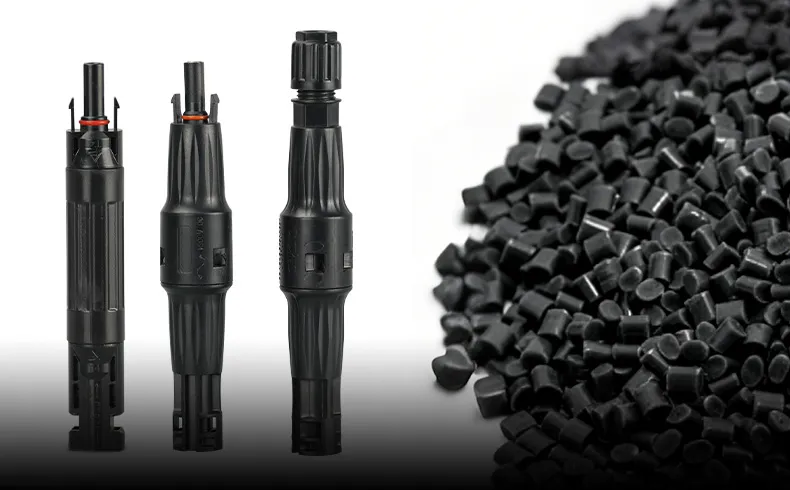

PC Insulated Housing

UV-Resistant and Corrosion-Resistant

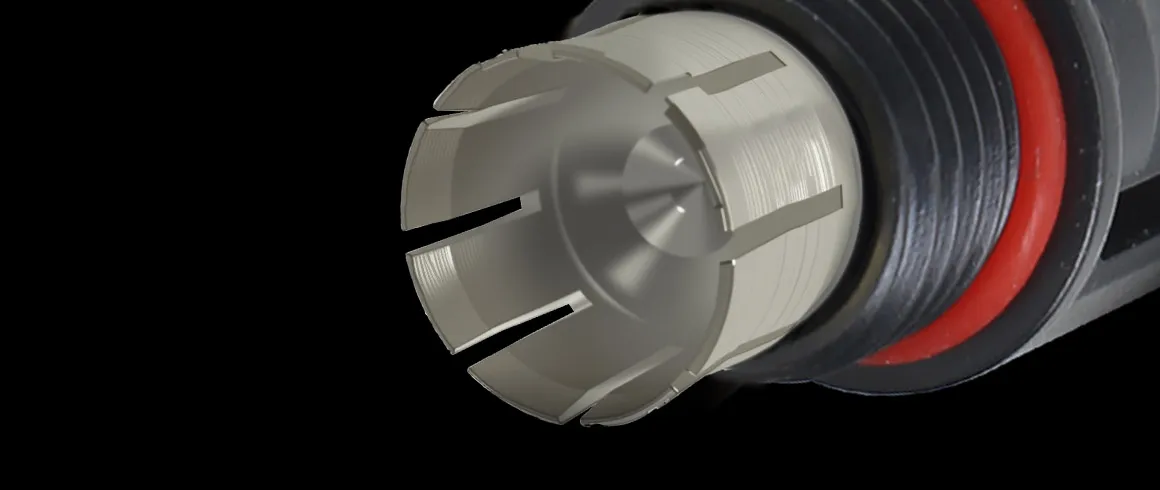

Low Resistance

Tin-plated copper conductors, low heat generation, oxidation-resistant

Free Customized Solutions OEM/ODM

We design exclusive PV solutions tailored to your needs at no cost.

Reuse the casing

If the fuse element is damaged, simply replace it; the housing can continue to be used.

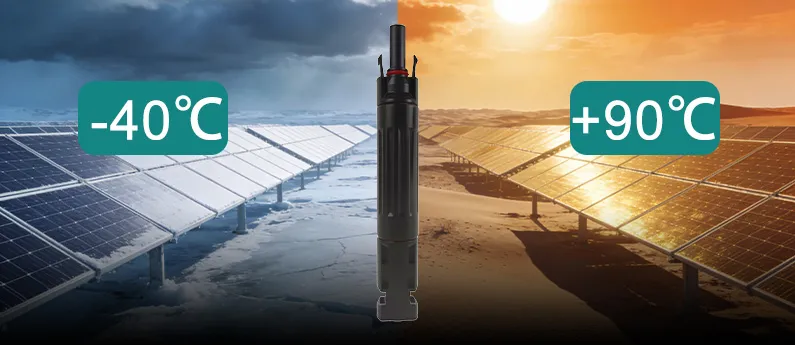

Stable operation

High-quality materials ensure stable operation within a temperature range of -40°C to +90°C.

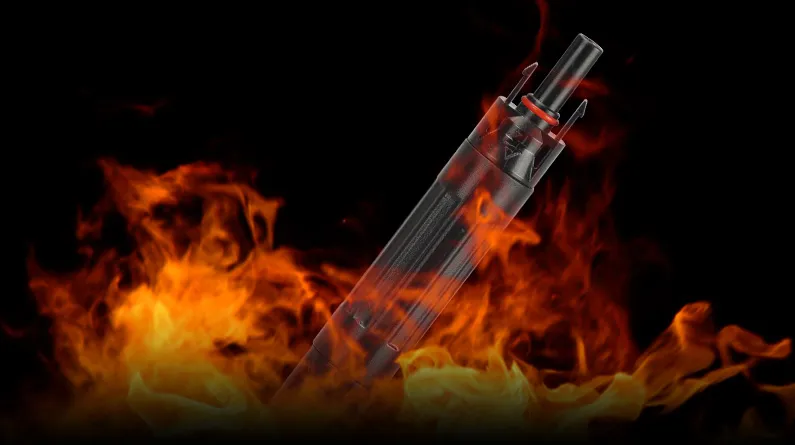

UL94V-0 Flame Retardant

Self-extinguishing when removed from flame,effectively preventing fires and safeguarding

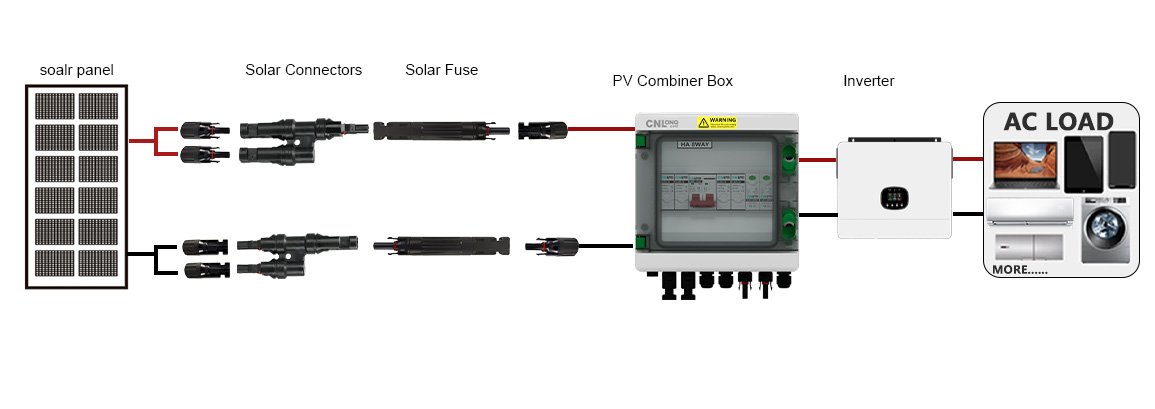

Why does your solar array need CNLONQ PVCNT-Fuse inline connectors?

The CNLONQ DC 1000/1500V Series Fuse Connector integrates critical overcurrent and short-circuit protection directly into your PV circuit. Featuring a low-resistance design (≤0.5 mΩ) and an IP67-rated waterproof housing, it provides reliable overload and short-circuit protection for your solar panels and inverters

●Free design of DC/AC system, packaging and labeling,OEM/ODM ●Reporting and tracking of the whole process before, during and after sales ●Free training for staff and installers ●Free design of promotional materials and videos ●Copyright, certificate and patent sharing ●Trade show resource support ●For more customized services please contact
