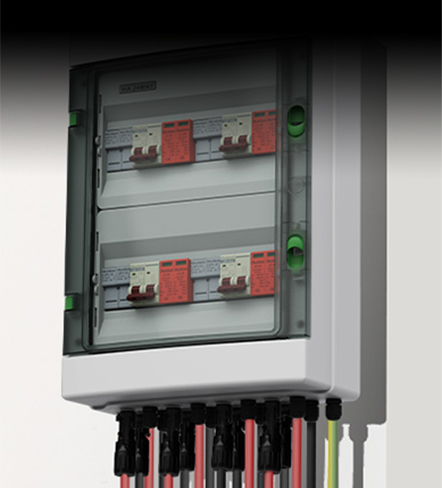

PV Combiner Box 4 in 4 out DC500V

CNLonQcom IP65 PV Combiner Box 4 in 4 out DC500V/600V/800V with Circuit Breaker and Surge Lightning Protection and Fuse For Outdoor Solar Panel DC Systems, Rv, Homes, Boats
●Rated voltage: DC500V/600V/800V
●Rated current: 6/10/16/20/25/32/40/50/63A
●String: 4in 4out
●Maximum input current per string: 6/10/16/20/25/30A
●Maximum output current per string: 6/10/16/20/25/32/40/50/63A
●Connector: MC-4 or PG
●standard: IEC60269-6, IEC60947-2, IEC61643-1
●Housing Material: PC+ABS
●Certificate: CE, IP65, ROHS, ISO9001

Model:LQX4/4DC500V/600V/800VB1

Send Inquiry

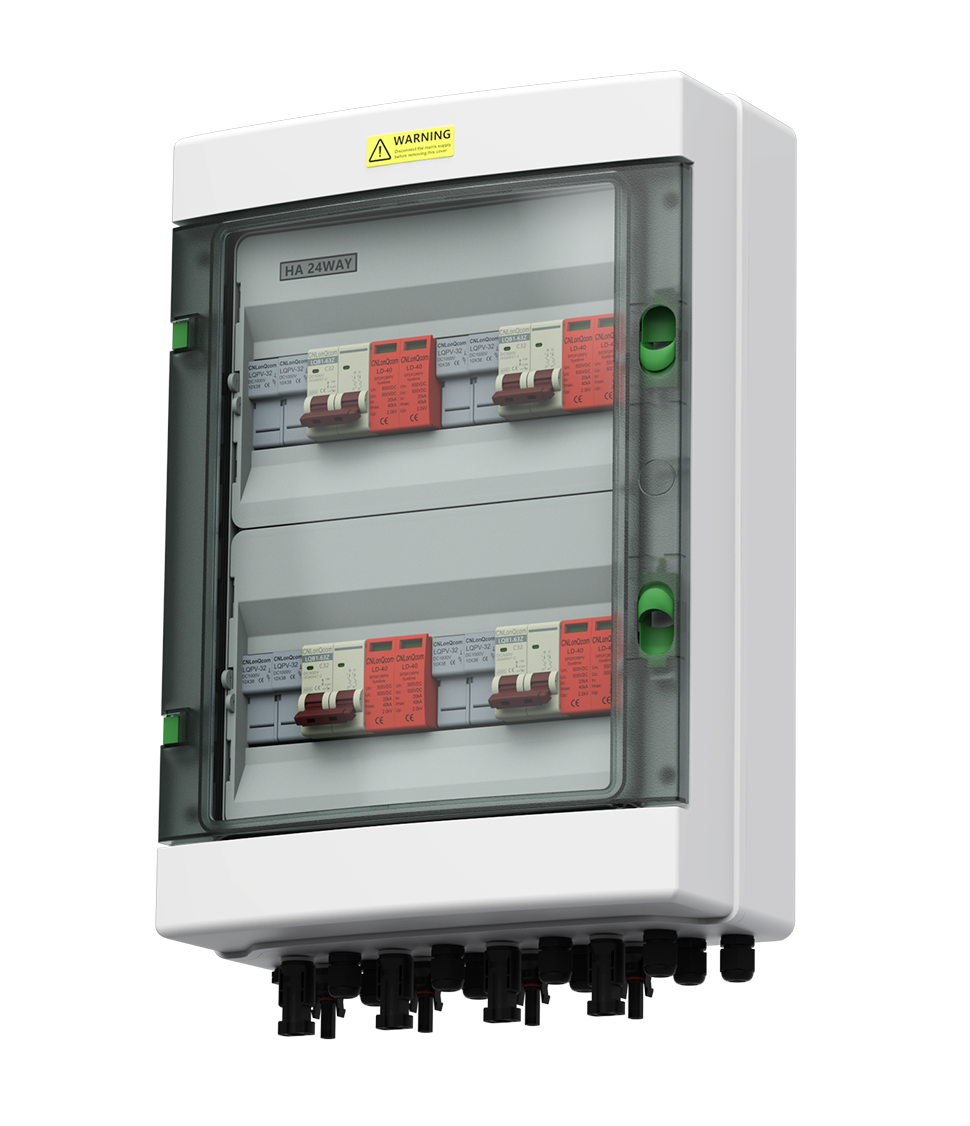

Product Description

Technical Data
Model	LQX4/4DC500VB1
Type	MCB and SPD and FUSE
String	4 in 4 out
Rated Voltage Ue (V)	DC500V/600V/800V
Maximum input current per string (A)	15/20/25/30 optional
Maximum output current per string (A)	32/40/50/63 optional
Quality Certificate	CE、ISO9001、ROHS、IP65、TUV
standard	IEC60947-2、IEC61643-1、IEC60269-6
Miniature Circuit Breaker(MCB)		Surge Protector(SPD)
Frame Degree Rated Current (A)	63	In (8/20)us (kA)	20
Rated Current In(A)	16/20/25/32/40/50/63 optional	Imax (8/20)us (kA)	40
Rated Voltage Ue (V)	DC500/600/800	Rated Voltage Ue (V)	DC500/600/800
Rated Insulation Voltage Ui (V)	DC1000	Voltage Protection Level (kV)	2.0/2.5
Impulse Withstand Voltage Uimp (kV)	4	Poles	2P
Breaking Capacity Icu (kA)	6	Housing Material	PA
RunBreaking Capacity lcs (lcu)	75%	Chip Thickness (mm)	6
Curve Type	C	FUSE
Poles	2	Rated Current In(A)	15/20/25/30 optional
Wiring Mode	No polarity, top in and bottom out or bottom in and top out	Rated Voltage Ue (V)	DC1000
Housing Material	PA	Poles	2P
Conductor Material	Copper	Fuse Size (mm)	10*38
Mechanical Life (Maxtimes)	20000	Housing Material	PA
Electrical Life (Maxtimes)	6000	Environment
Pre-installed PV Cable		Operating Temperature	-25℃ to +60℃
Cable Diameter	4~25mm	Humidity	≤95%
Maximum voltage (V)	1000~2000	Altitude	2000m
Maximum Current (A)	10~200	Installation	Wall Mounting
Housings
Material	PC+ABS
Protection Level	IP65
Impact Protection Level	IK10
Input or output connector	PG or MC-4 Connectors

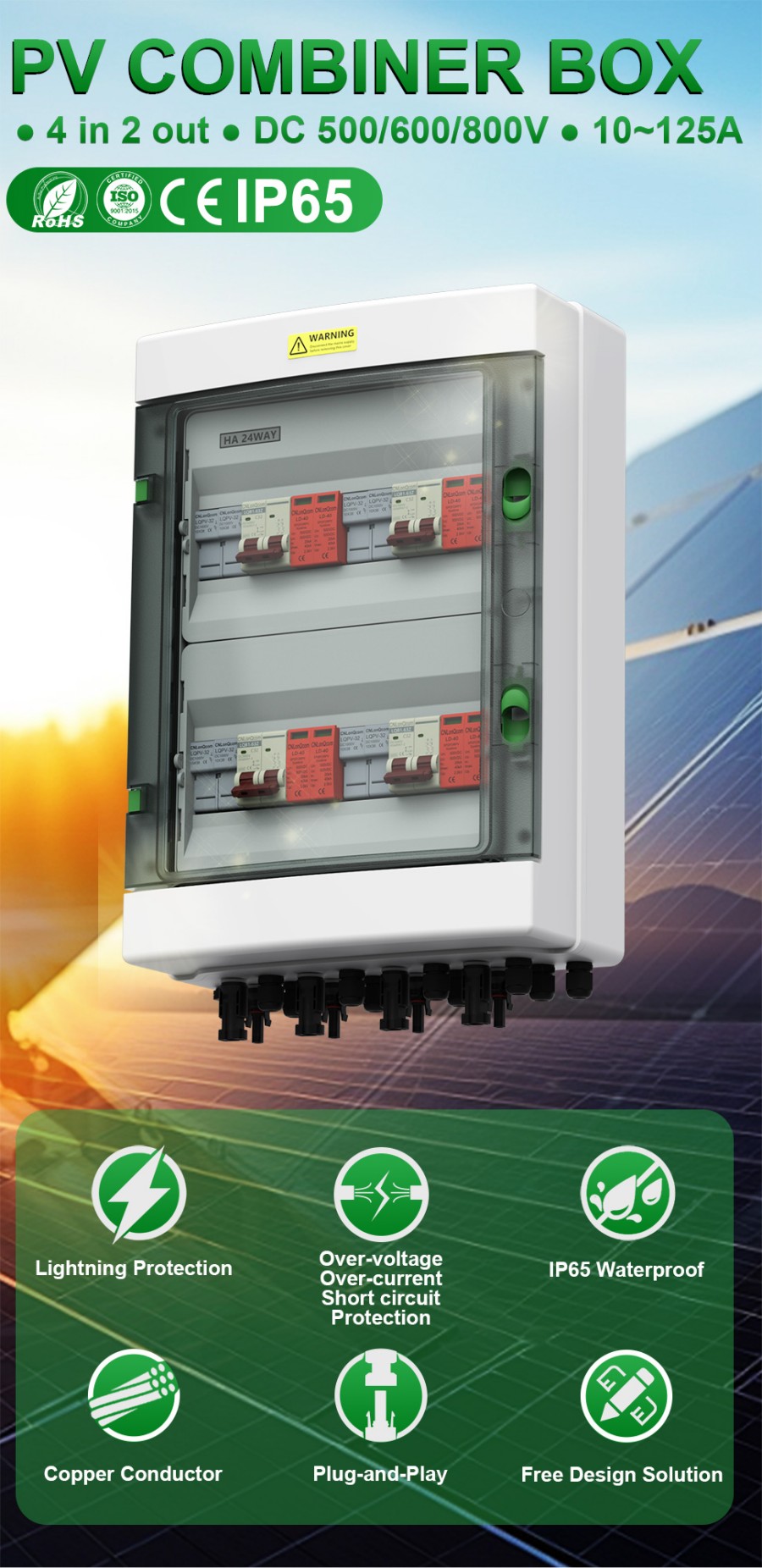

PV COMBINER BOX

● 4 in 2 out ● DC 500V/600V/800V ● 10~125A

IP65

Lightning Protection
Over-voltage
Over-current
Short circuit
Protection
IP65 Waterproof
Copper Conductor
Plug-and-Play
Free Design Solution

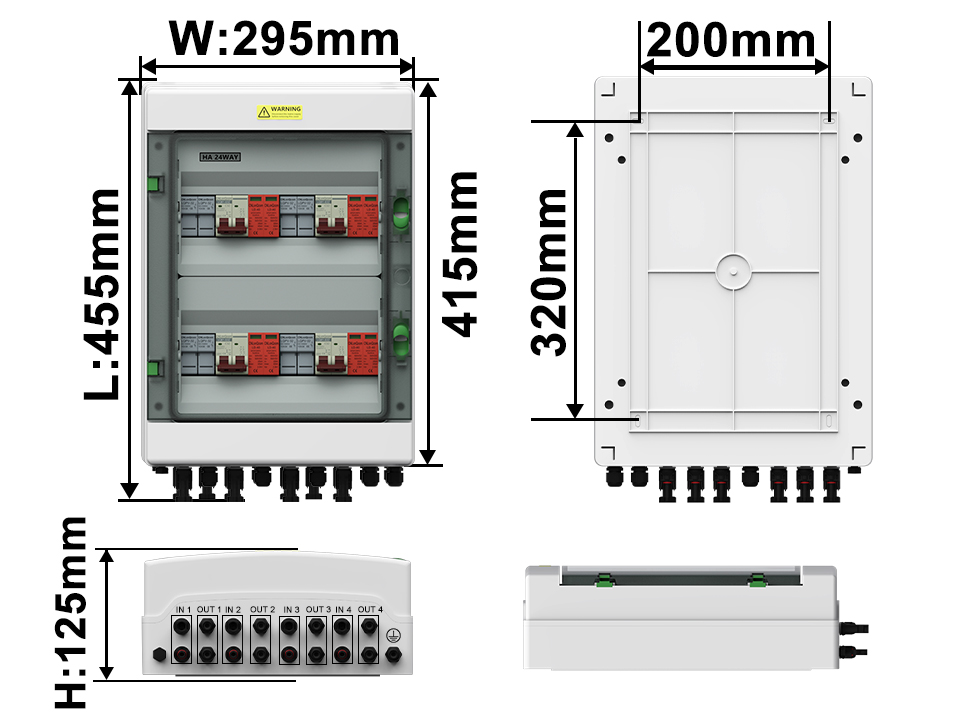

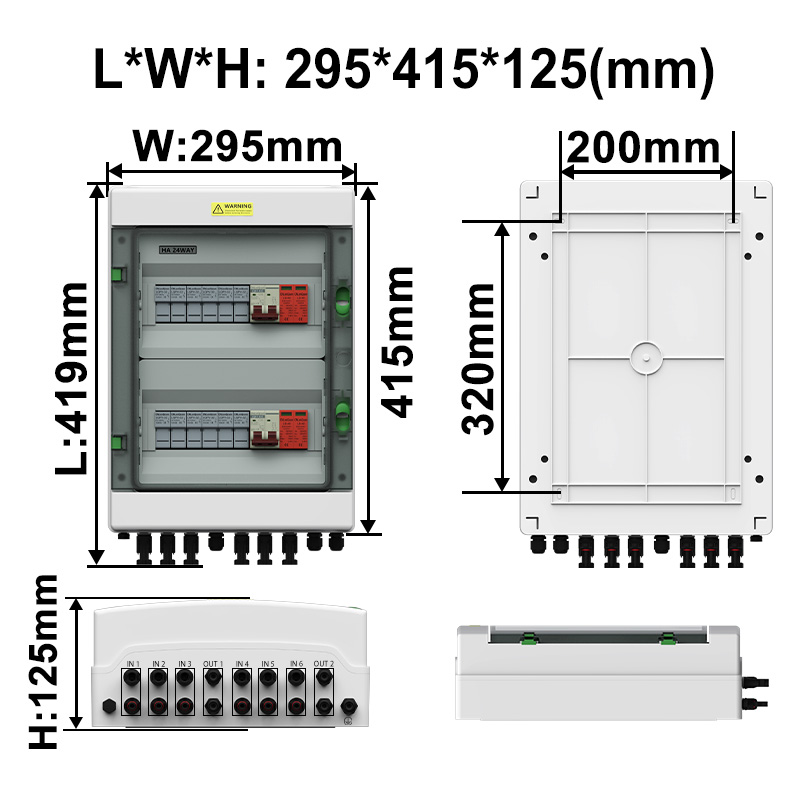

SIZE

LWH:455259125(mm)

Mechanically upgraded crimping process for peace of mind

Tip:
①Installation of MC-4 connectors will have pre-installed cables, PG connectors have no
②Pre-connected cable by default according to the rated current diameter of 4 ~ 20mm² change or according to customer requirements

FIRM PACKAGING

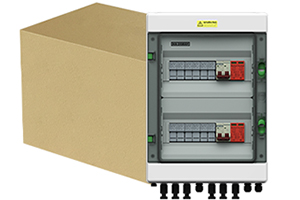

1Product in Inner Box

5-ply corrugated extra hard

2Outter Box

5-ply corrugated extra hard

3Delivery

Quick Shipment

Model	String	Inner Box (PCS/cm)	Outter Box (cm)	QTY (PCS)	G.W. (kgs)
LQX 4/1B.12 DC500V	4 in 2 out	1/4234.517.5	453657	3	14

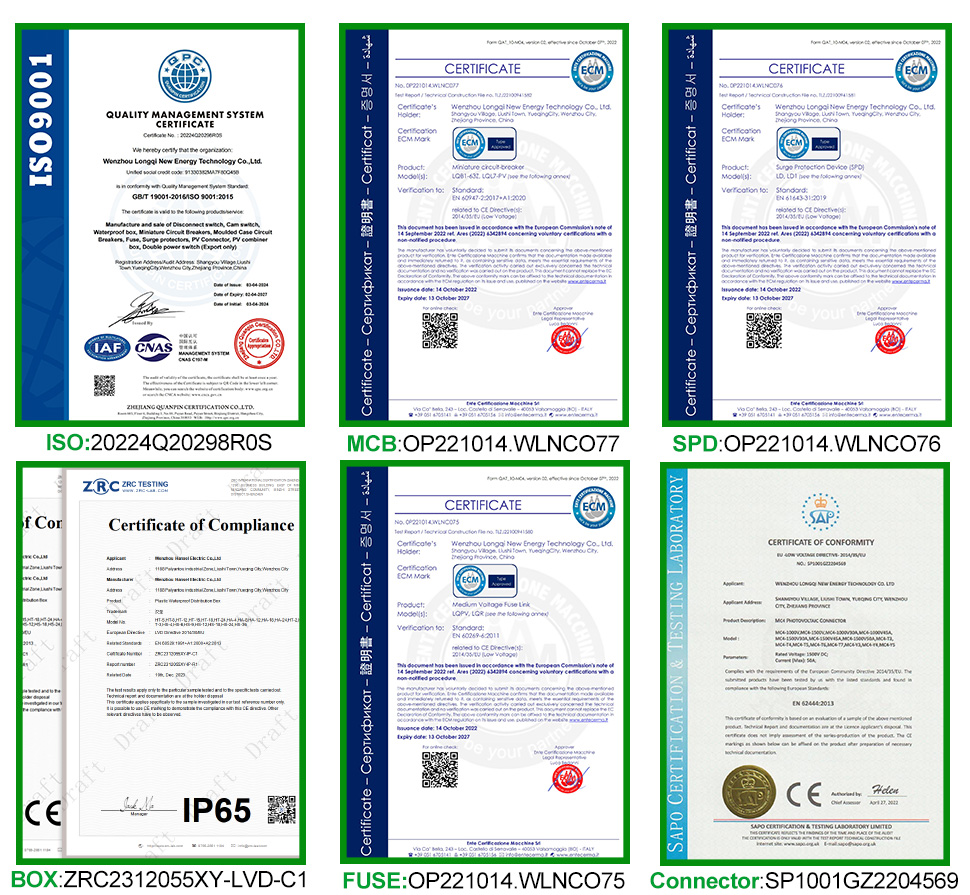

FULLY CERTIFIED

Branded source manufacturers with high quality and low price

ISO:20224Q20298ROS
MCB:OP221014.WLNCO77
SPD:OP221014.WLNC076
BOX:ZRC2312055XY-LVD-C1
FUSE:OP221014.WLNCO75
Connector:SP1001GZ2204569

Tip: Contact us for more certificates

INSTALL ATION AND WIRING

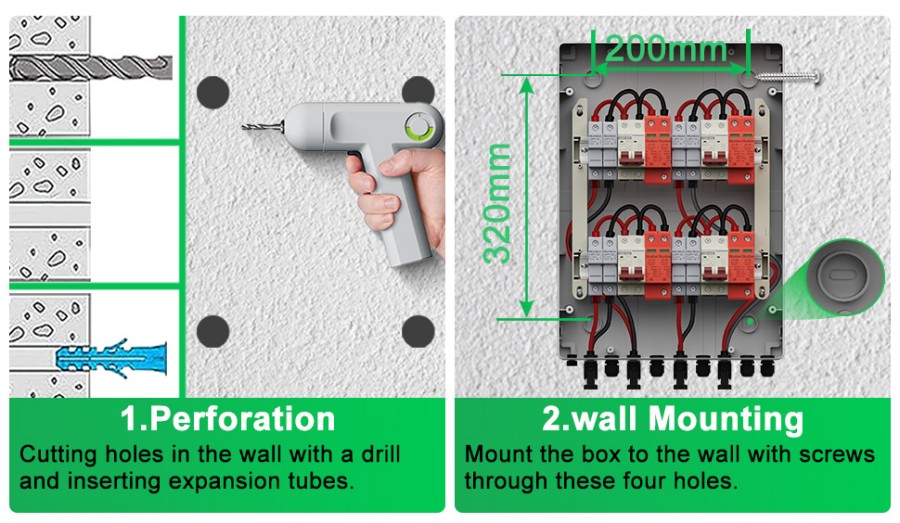

Wall Mount

1.Perforation

Cutting holes in the wall with a drill and inserting expansion tubes.

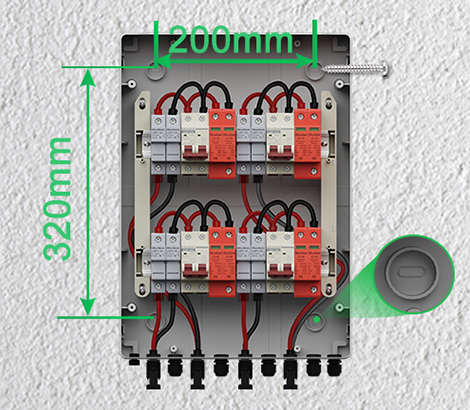

2.Wall Mounting

Mount the box to the wall with screws through these four holes.

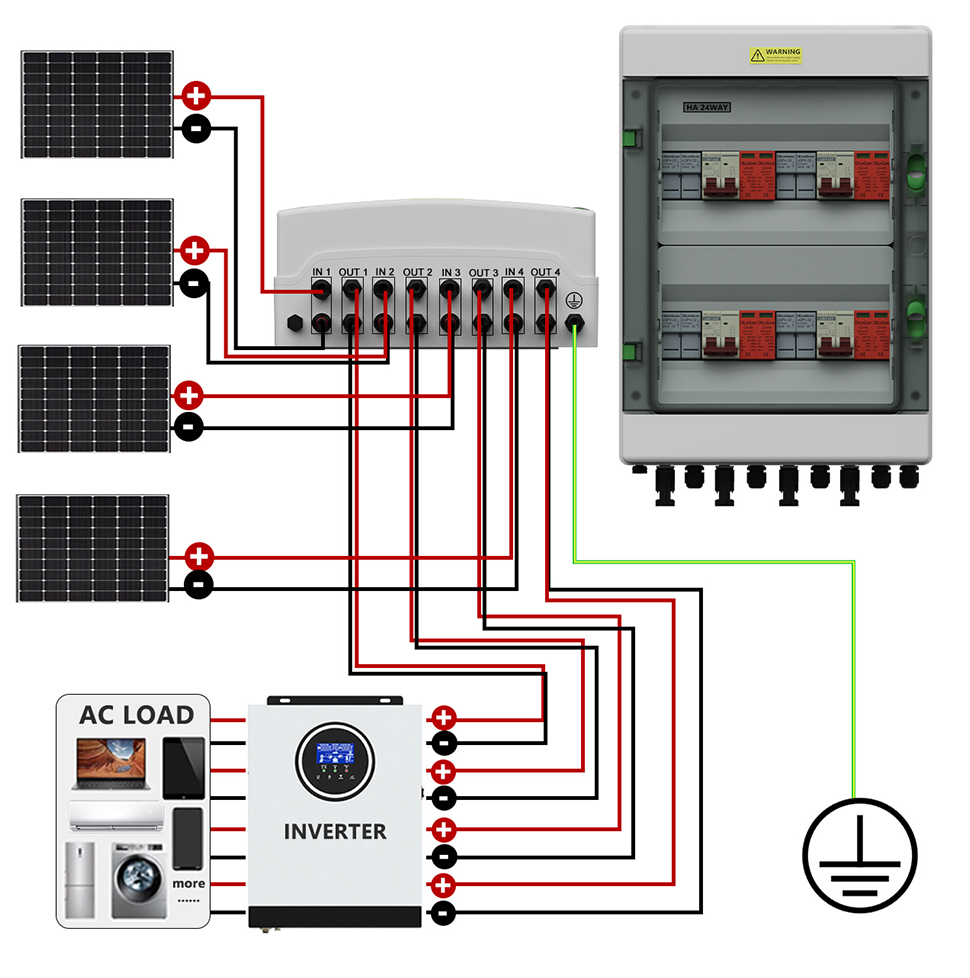

4 in 4 out Wiring

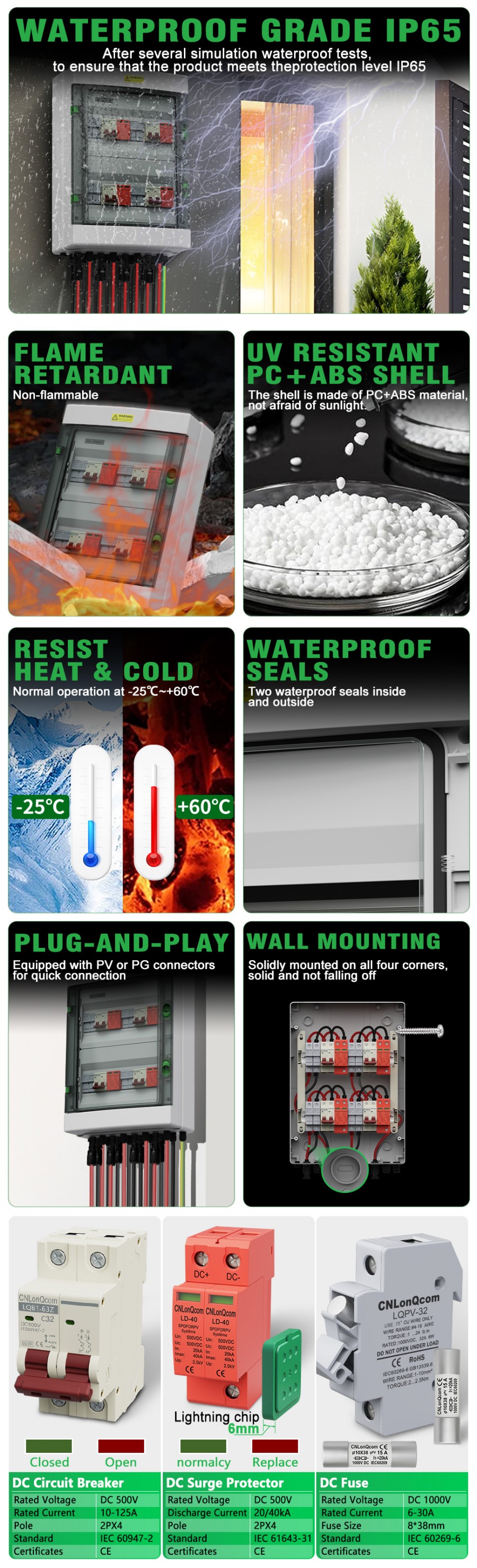

PRODUCT DETAILS

WATERPROOF GRADE IP65

After several simulation waterproof tests,
to ensure that the product meets theprotection level IP65

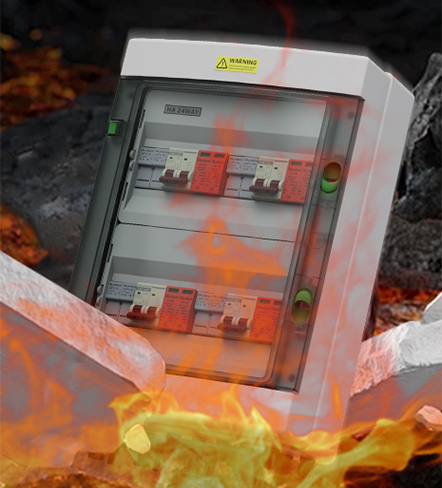

FLAME
RETARDANT

Non-flammable
UV RESISTANT
PC+ABS SHELL

The shell is made of PC+ABS material,
not afraid of sunlight.
RESIST
HEAT & COLD

Normal operation at -25°C~+60°C
WATERPROOF
SEALS

Two waterproof seals inside
and outside
PLUG-AND-PLAY

Equipped with PV or PG connectors
for quick connection

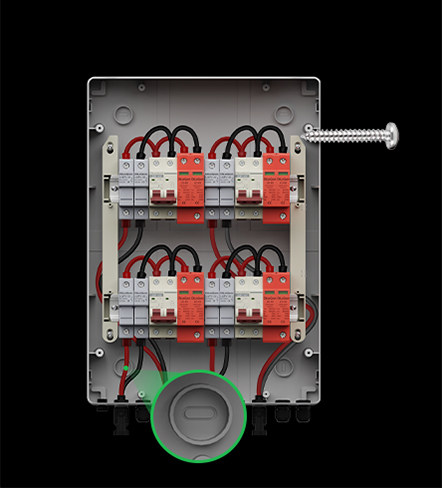

WALL MOUNTING

Solidly mounted on all four corners,
solid and not falling off

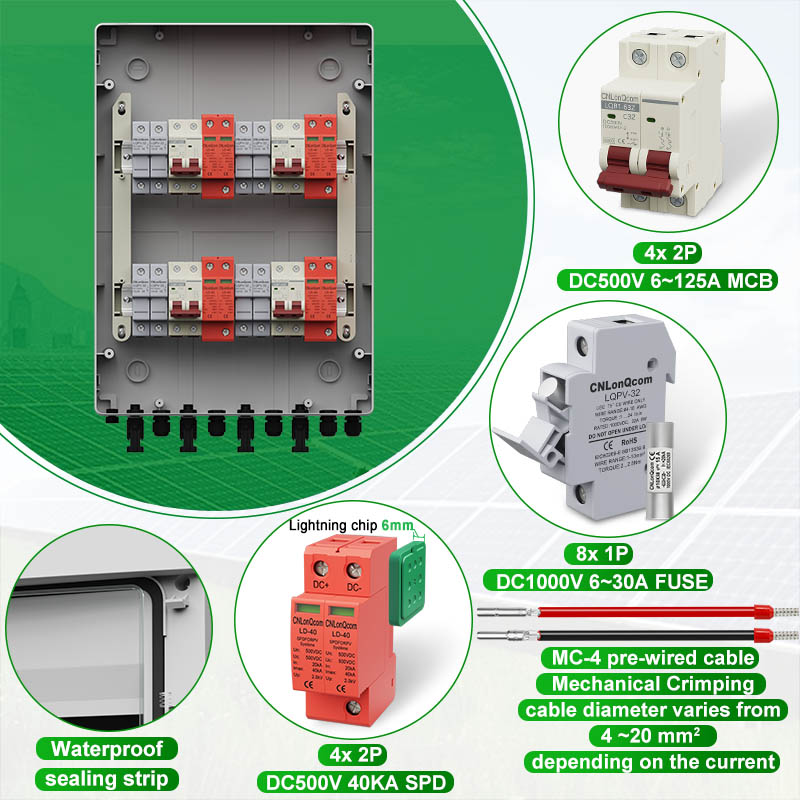

DC Circuit Breaker

Rated Voltage	DC 500V
Rated Current	10~125A
Pole	2PX2
Standard	IEC 60947-2
Certificates	CE

DC Surge Protector

Rated Voltage	DC 500V
Discharge Current	20/40kA
Pole	2PX4
Standard	IEC 61643-31
Certificates	CE

DC Fuse

Rated Voltage	DC 1000V
Rated Current	6-30A
Fuse Size	8*38mm
Standard	IEC 60269-6
Certificates	CE

APPLICATION SCENAIRI0

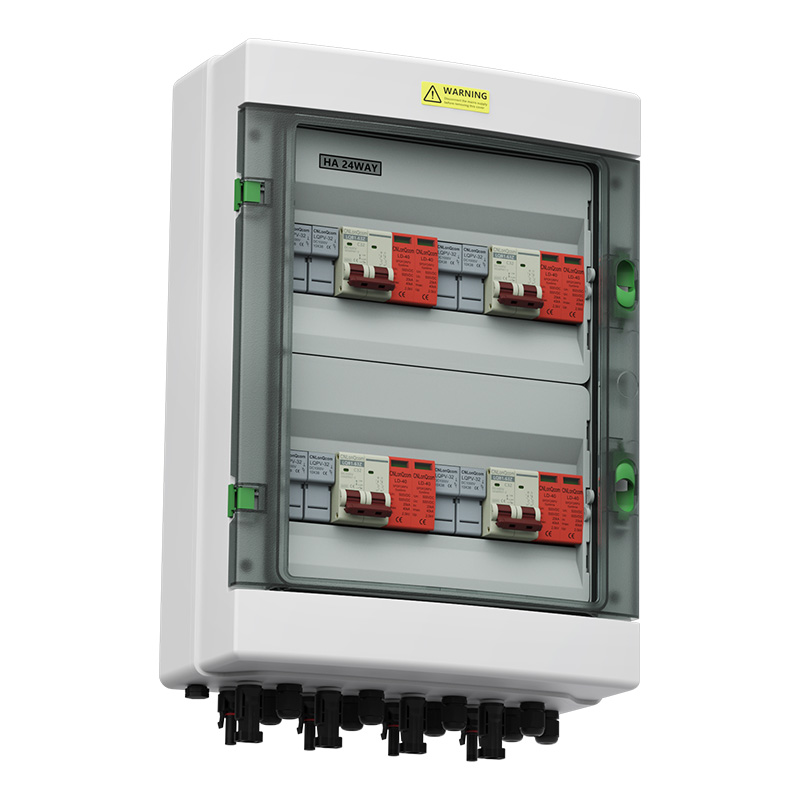

CNLonQcom's HA Series Plastic PV Combiner Box 4 in 4 out DC500V features a PC+ABS waterproof case with sealed construction, overload protection, short circuit protection, overvoltage protection, dust, moisture and lightning protection.

The internal components of HA Series Plastic PV Combiner Box4 in 4 out DC500V /600V/800V are 2P MCB, 2P SPD and 2P FUSE, which are made of PA shell.

SPD modules and fuse cores can be quickly replaced without removing the cover when damaged.

CNLonQcom's HA Series Plastic PV Combiner Box 4 in 4 out DC500V/600V/800V are mainly used for the protection of PV systems and are often used in off-grid or grid-connected systems. Such as PV panels, Rv, Boat, Outdoor PV, Household, etc.

PV Combiner Box 4 in 4 out DC500V /600V/800Veffectively protects inverters and Solar panels from damage and sends from fire.
